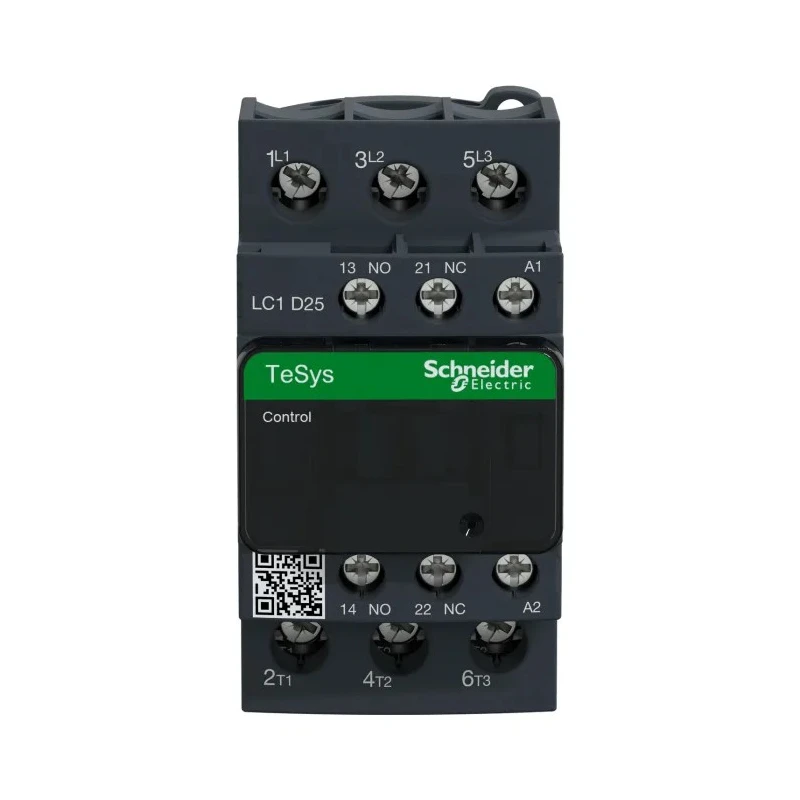

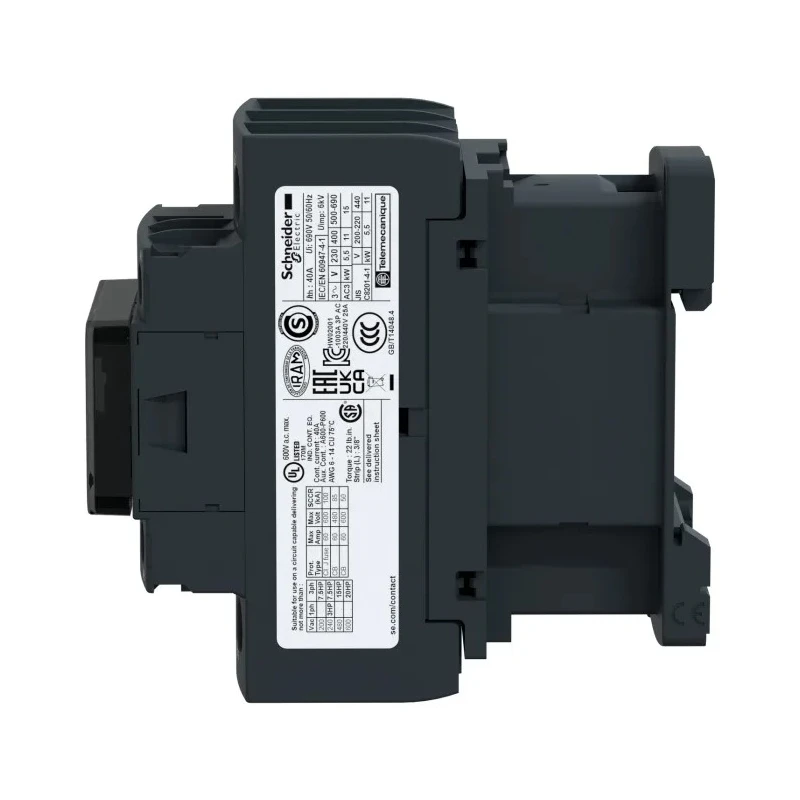

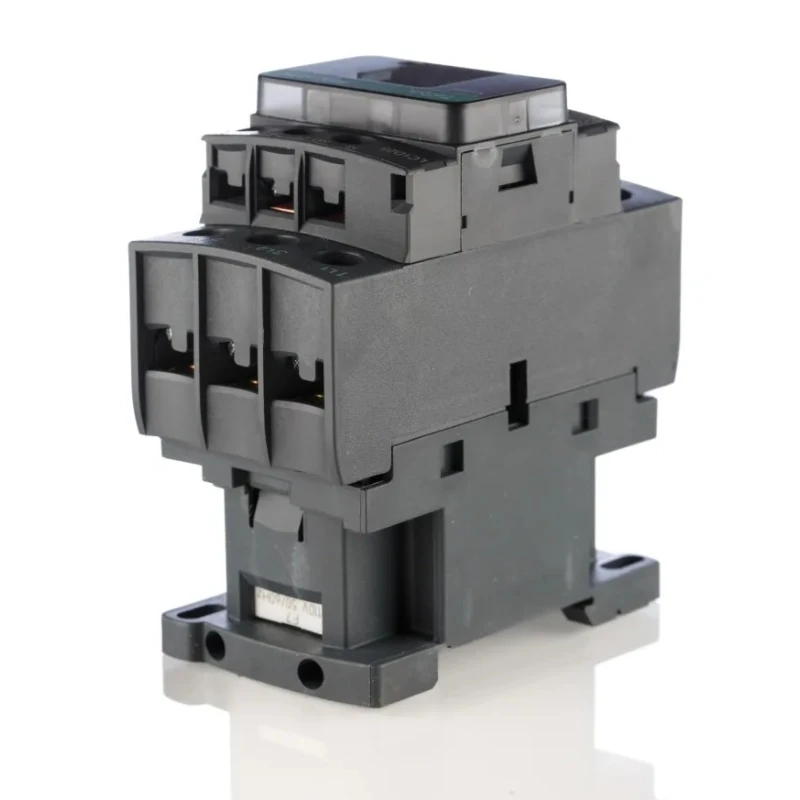

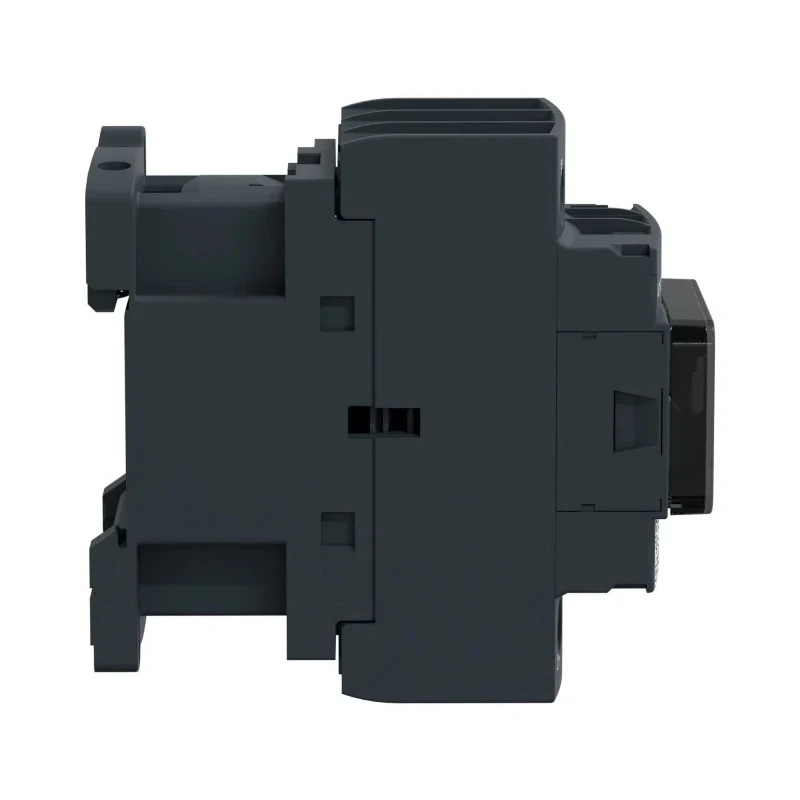

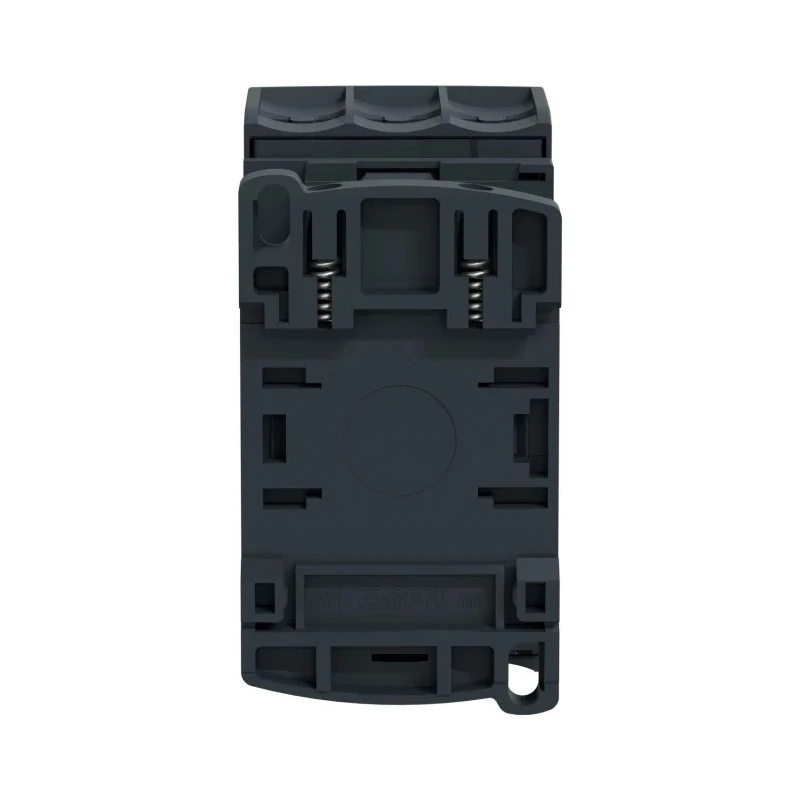

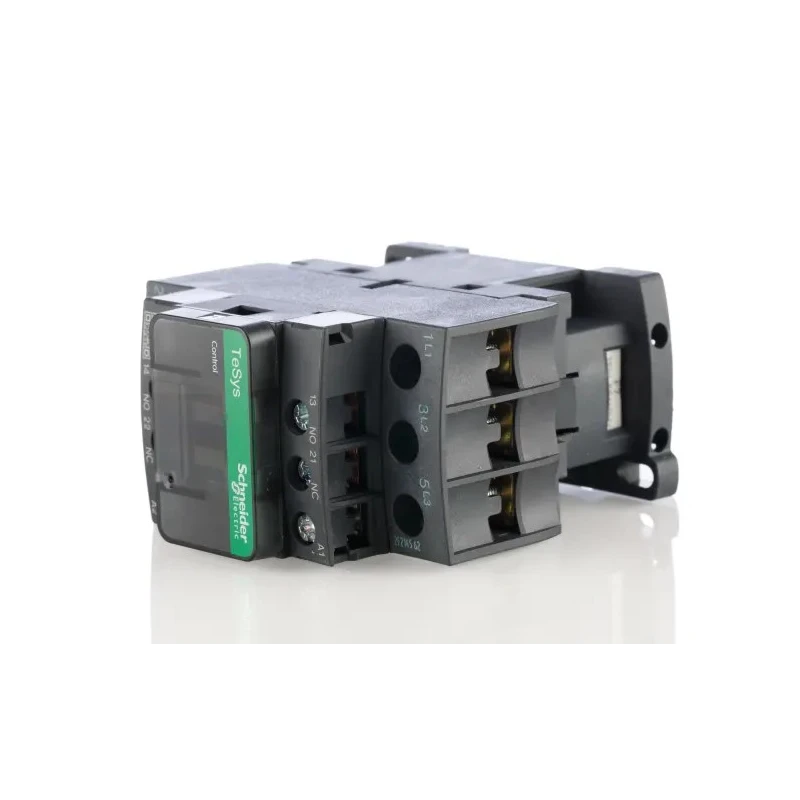

Schneider Electric LC1D25B7 Contactor, 24V AC Coil, 3-Pole, 25 A, 11 kW, 3 NO, 690V AC
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1D25B7 |
| Depth | 92mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 11kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| 3 pole contactor,11kW 25A 24Vac coilBrand | Telemecanique |
Key Features
- Operates at a coil voltage of 24V AC for reliable motor control applications.
- Equipped with 3 poles and 3 normally open (NO) contacts for efficient switching.
- Capable of handling contact currents up to 25A, suitable for controlling motors.
- Supports a maximum contact voltage of 690V AC to handle diverse industrial loads.
- Power rating of 11 kW makes it ideal for various motor control tasks.
- Includes 2 auxiliary contacts configured as 1 NO and 1 NC for enhanced control functions.
- Designed for DIN rail mounting ensuring easy installation in control panels.
- Constructed to operate reliably in temperatures from -40°C to +60°C.
Product Description
Schneider Electric LC1D25B7 contactor is a high-performance device designed for motor control, suitable for use in industrial automation and electrical systems. Featuring a coil voltage of 24V AC and rated for a contact current of 25A, it supports heavy-duty applications including motor control and resistive loads. With a 3-pole configuration and three normally open contacts, this contactor offers reliable switching capabilities for three-phase motors.
The device supports a maximum contact voltage of 690V AC, offering flexibility across a variety of electrical systems. It includes two auxiliary contacts (1 NO and 1 NC) for extended control options. Designed for optimal installation, the contactor mounts on standard DIN rails, simplifying integration into control panels and enclosures.
Built to perform reliably under harsh conditions, it operates across a wide temperature range of -40°C to +60°C. Screw terminals enable secure and straightforward electrical connections, ensuring stable operational performance. The compact dimensions of 85 mm length, 45 mm width, and 92 mm depth make it suitable for space-constrained installations.
This contactor meets multiple international standards including CCC, CSA, EAC, IEC, RoHS, and UL, reinforcing its quality and safety for industrial, manufacturing, HVAC, and commercial use cases. It is part of Schneider Electric's LC1D series, known for robust motor control and automation solutions.
Operates at 24V AC coil voltage for versatile automation control. Rated for 25A contact current, supporting industrial motor control. 3 poles with 3 normally open contacts ensure effective switching. Auxiliary contacts include one normally open and one normally closed for extended functionality.
Designed for DIN rail mounting for easy installation in control panels. Supports contact voltage up to 690V AC across industrial applications. Functions reliably within operating temperatures from -40°C to +60°C. Screw terminal design enables secure and simple wiring connections.
Complies with major safety and performance standards including IEC and UL. Explore a vast range of Contactors and automation components at EnvMart for your industrial automation and motor control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D25B7 contactor operates at a coil voltage of 24V AC.
It supports a maximum contact voltage of 690V AC, making it suitable for various industrial applications.
This contactor is rated for a contact current of 25A, which allows it to handle heavy-duty applications.
This model features a 3-pole configuration, providing efficient switching capabilities for three-phase motors.
It includes two auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC) for enhanced control functions.
The power rating of this contactor is 11 kW, suitable for various motor control tasks.
The dimensions are 85 mm in length, 45 mm in width, and 92 mm in depth, making it compact for installation.
It operates reliably in temperatures ranging from -40°C to +60°C, suitable for harsh environments.
This contactor is designed for DIN rail mounting, which simplifies installation in control panels.
It complies with multiple standards including CCC, CSA, EAC, IEC, RoHS, and UL, ensuring quality and safety.
The LC1D25B7 is suitable for motor control and resistive load applications in industrial automation.
It features screw terminals, allowing for secure and straightforward electrical connections.
