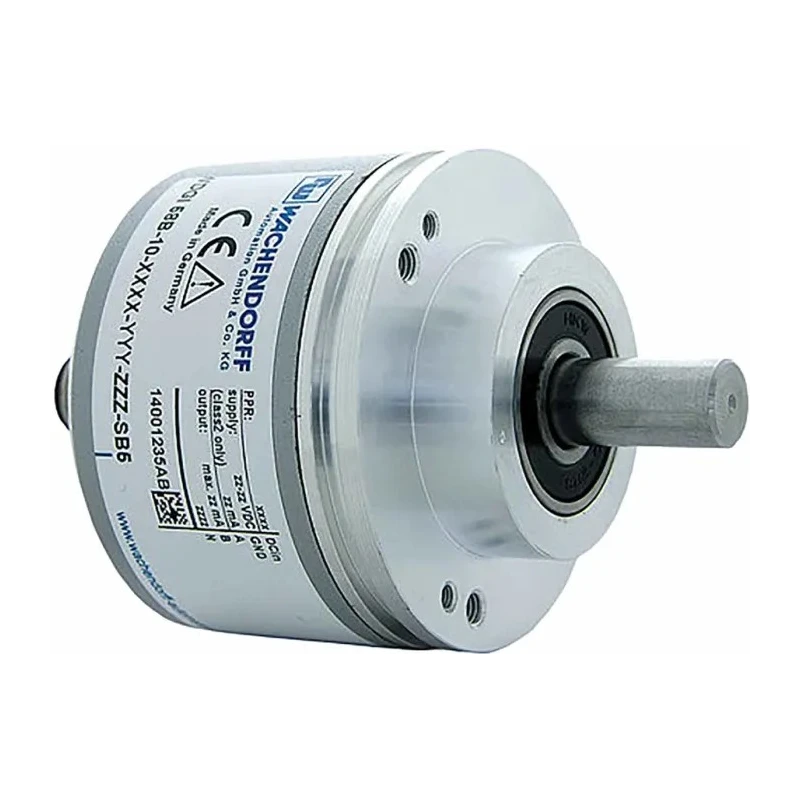

Wachendorff Incremental Encoder Solid Shaft 10mm Diameter, 5.5V dc, 5000 ppr, TTL Inverted RS422 WDG58B-5000-ABN-I05-K3

Wachendorff WDG58B-5000-ABN-I05-K3 is an incremental encoder designed for precise rotational measurement in demanding industrial settings. This encoder operates at a nominal voltage of 5.5V dc and provides 5000 pulses per revolution (ppr), enabling accurate detection of position, speed, and distance.

The robust encoder features a solid shaft of 10 mm diameter housed within a sturdy aluminium casing, ensuring durability against mechanical stress and environmental exposure. Its clamping flange mount facilitates easy and secure equipment integration.

With a high switching frequency of 200 kHz and maximum allowable speed of 8000 rpm, it supports high-speed motion control tasks. The output signals include TTL Inverted and RS422 types for enhanced noise immunity and reliable data transmission in industrial automation environments.

This model complies with DIN VDE 0160 standards and offers exceptional ingress protection: IP65 rating for the shaft and IP67 for the protective cover, safeguarding against dust and water ingress. Operating temperature range spans from -20°C to 80°C, suitable for a variety of manufacturing, laboratory, and automation applications.

Additional features include an early warning output that helps detect encoders' functional abnormalities, boosting safety and minimizing downtime in critical industrial processes. Features a solid shaft design with 10 mm diameter for robust mechanical coupling.

Provides TTL Inverted and RS422 output signals for noise-resistant communication. Operates reliably between -20°C and 80°C environmental temperature range. Equipped with IP65 (shaft) and IP67 (cover) ingress protection for harsh industrial environments.

Capable of maximum rotational speeds up to 8000 rpm with switching frequency of 200 kHz. Constructed with a sturdy industrial aluminium housing and clamping flange mount for secure installation. Conforms to DIN VDE 0160 standards ensuring industrial-grade quality and safety.

Early warning output functionality enhances operational reliability by preempting faults. Applications include rotary position, speed, distance, and rpm measurement in manufacturing and automation systems.

This Incremental Encoder is ideal for industrial automation, laboratory instrumentation, manufacturing machinery, HVAC control systems, and water treatment plants requiring precise feedback on motion parameters. Browse other high-quality motion control sensors and encoders at EnvMart for advanced industrial applications.
