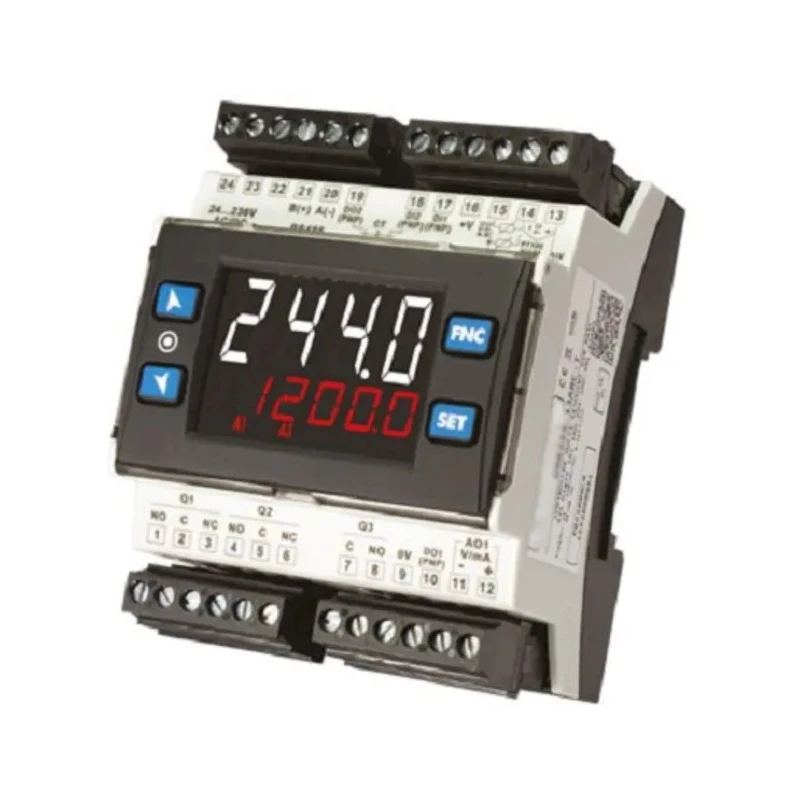

Wachendorff DIN Rail PID Temperature Controller 2 Input 3 Output Solid State Relay 230V ac/dc URDR001A

Free Delivery in India | Lowest Global Shipping Charges

Wachendorff DIN Rail PID Temperature Controller 2 Input 3 Output Solid State Relay 230V ac/dc URDR001A

Name: Wachendorff DIN Rail PID Temperature Controller 2 Input 3 Output Solid State Relay 230V ac/dc URDR001A
Brand: Wachendorff
SKU: 297322
Price: 299.28 USD
Availability: InStock



Category Temperature Controllers Brand Wachendorff Condition New

Specifications

Country of Origin	Italy
Display Type	LED
Brand	Wachendorff
Model	URDR001A
IP Rating	IP20
Width	72mm
Mount Type	DIN Rail
Number of inputs	2
Output type	Solid State Relay
Series	URDR
Input Type	Universal, PT100, Potentiometer
Maximum Operating Temperature	45°C
Control Type	PID
Minimum Operating Temperature	0°C
Maximum Current	5A
Number of outputs	3
Maximum Voltage	280V ac
Standards/Approvals	RoHS
Maximum Supply Voltage	230V ac/dc
Digital Comms	RS485 Modbus RTU Slave

Key Features

PID control type for precise temperature regulation.
Supports universal inputs including PT100 and potentiometers.
Features 3 output solid state relays with 5A maximum current.
Equipped with RS485 Modbus RTU slave digital communication.
LED 2-line display for clear user interface.
Operating temperature range from 0°C to 45°C.
Compact 72mm width with IP20 rating and DIN rail mount.
Universal power supply compatible with 230V AC/DC and max 280V AC voltage.

Product Description

Wachendorff URDR001A is a compact DIN Rail PID Temperature Controller designed for industrial process control and automation applications. This controller accommodates universal inputs for temperature sensors such as PT100, thermocouples, potentiometers, and process signals, providing flexibility across various measurement devices.

The device features a universal power supply capable of operating at 230V AC/DC with a maximum voltage rating of 280V AC, ensuring reliable operation in diverse electrical environments. With 2 inputs and 3 outputs using solid state relays capable of carrying 5A maximum current, it facilitates precise control and switching of heating or cooling elements.

The integrated PID control algorithm delivers robust temperature management for applications requiring accurate temperature regulation. Operation is simplified via a clear two-line LED display and support for communication over RS485 Modbus RTU, enabling integration with industrial automation systems.

Engineered for DIN rail mounting with a compact 72mm profile and rated IP20 for protection, it suits factory automation, HVAC systems, water treatment, and laboratory process control. The operating temperature range from 0°C to 45°C supports typical industrial site conditions.

This product is made in Italy to high-quality standards, and is RoHS compliant. The controller represents advanced technology combining proven hardware and modern software interfaces, with further app control capability under development.

PID control type for precise temperature regulation. Universal input accepts process signals, PT100 sensors, potentiometers, and thermocouples. 3 solid state relay outputs rated to 5A maximum current for versatile control.

Robust digital communication via RS485 Modbus RTU slave protocol. LED 2-line display provides user feedback and easy operation. Compact 72mm width DIN rail mounting with IP20 ingress protection. Universal power supply suitable for 230V AC/DC environments.

Suitable for industrial, laboratory, HVAC, and water treatment applications. Explore additional models and related temperature control devices at EnvMart’s Industrial Measuring Instruments category for comprehensive process automation solutions.
