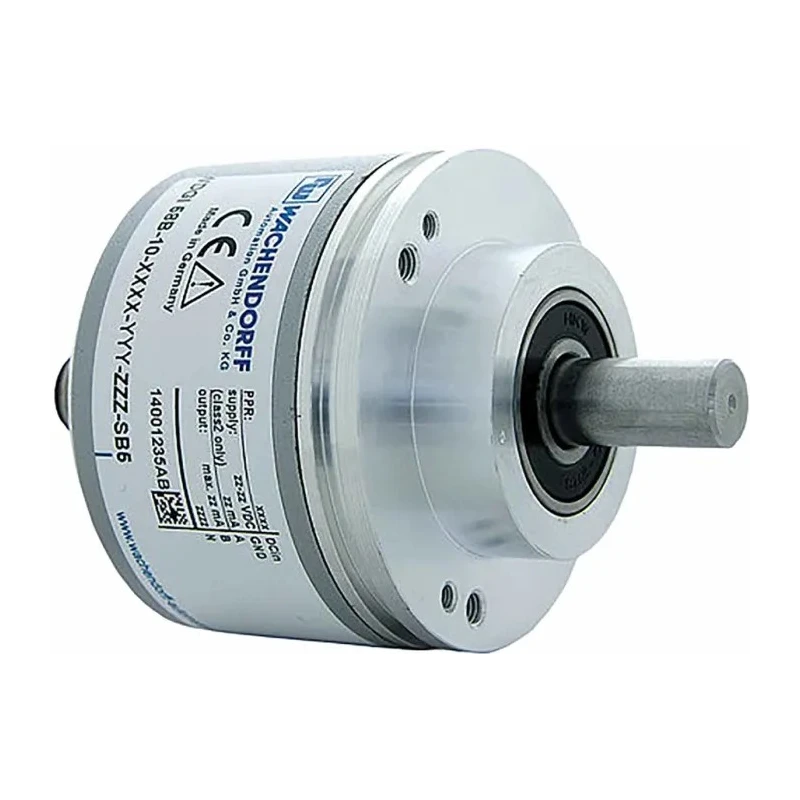

Wachendorff Incremental Encoder 30V DC, 1024 PPR, HTL Signal, Solid Shaft 10 mm, Clamping Flange Mount WDG58B-1024-ABN-G24-K3

The Wachendorff WDG58B-1024-ABN-G24-K3 Incremental Encoder is designed for precise rotational position and speed measurement in demanding industrial environments. Featuring a solid 10 mm shaft and a durable aluminum housing, this encoder ensures reliable performance at up to 8000 rpm. It operates on 30 V DC supply voltage and outputs an HTL signal, suitable for high-resolution motion control applications.

This model offers 1024 pulses per revolution (PPR), enabling accurate reading of angular position, speed, and distance. Its clamping flange mount simplifies installation and ensures secure attachment. The encoder boasts a robust protection rating, offering IP65 protection for the shaft and IP67 for the cover, shielding it from dust and water ingress, compliant with DIN 40 050 standards.

Rated for operation between -20°C and 80°C, it can withstand a wide range of industrial conditions. The high switching frequency of 200 kHz supports rapid and precise detection for automation, manufacturing, HVAC, and other industrial applications.

Operates at 30V DC with a maximum speed of 8000 rpm. Outputs High Threshold Logic (HTL) signals for stable sensor communication. Solid 10 mm diameter shaft with clamping flange mounting. Aluminum industrial housing offering IP65/IP67 protection.

Wide operating temperature range from -20°C to 80°C. High switching frequency of 200 kHz for exact motion detection. Conforms to DIN VDE 0160 safety and quality standard. Compact dimensions: 83 mm height and width.

This encoder finds utility across industrial automation, robotics, material handling, and process control systems, enhancing system accuracy and reliability. Its rugged construction and high protection levels ensure durability in harsh environments.
