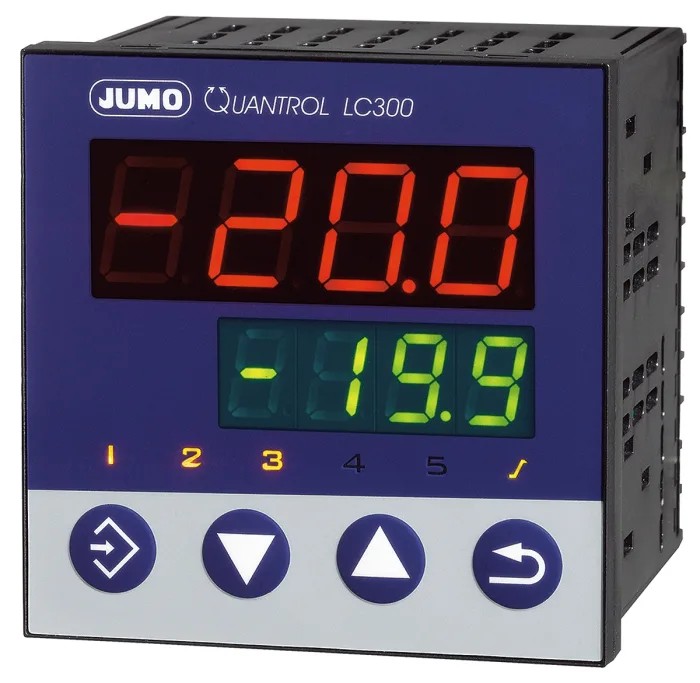

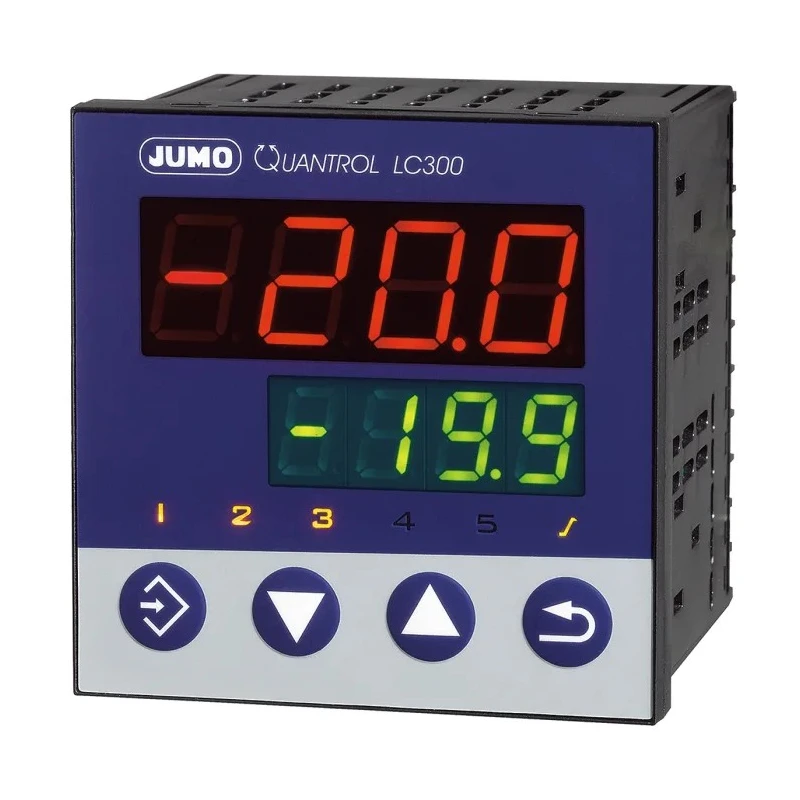

Jumo QUANTROL Panel PID Temperature Controller 1 Input, 2 Output Analogue 240V ac/dc On-Off 702034/8-3100-25
Specifications
| Country of Origin | Germany |
|---|---|
| Display Type | 7 Segment LED |
| Brand | Jumo |
| Length | 96mm |
| Model | 702034/8-3100-25 |
| IP Rating | IP65 |
| Mount Type | Panel |
| Number of inputs | 1 |
| Output type | Analogue |
| Series | QUANTROL |
| Input Type | Thermocouple |
| Maximum Operating Temperature | 55°C |
| Control Type | On-Off |
| Minimum Operating Temperature | -5°C |
| Interfaces | USB Mini-B) |
| Maximum Current | 3A |
| Number of outputs | 2 |
| Terminal type | Screw |
| Maximum Voltage | 230V |
| Maximum Supply Voltage | 240V ac/dc |
| Digital Comms | RS485 |
| Panel Depth | 80mm |
| Firing Mode | Firing curve for pottery kilns |
| 3 formats | 48x48mm, 48x96mm and 96x96mm |
Key Features
- The controller features 1 universal input compatible with thermocouples, RTD temperature probes, or current/voltage signals.
- It provides 2 analogue outputs suitable for regulating valves or SCR power controllers.
- Equipped with a 7-segment LED display capable of showing readings in °C or °F.
- The compact panel mount design measures 96 mm in length with a panel depth of 80 mm for flexible installation.
- Incorporates self-optimization autotuning for precise PID control and alarm monitoring.
- Supports RS485 communication via Modbus RTU protocol for effective diagnostics and remote management.
- Designed with IP65 rating, screw terminal connections, and compliance with multiple international DIN and IEC standards.
- Includes advanced features such as ramp and timer functions, level inhibit and key lock safety controls.
Product Description
Jumo 702034/8-3100-25 QUANTROL Panel PID Temperature Controller offers a compact and versatile solution for precise temperature control in industrial and laboratory environments. It accepts a single universal input compatible with thermocouples, RTD probes, or electrical signals, and distributes output control through two analogue channels designed for valve regulation or SCR power control.
The device operates on a maximum supply voltage of 240V ac/dc and supports On-Off control type with additional continuous output capabilities depending on configuration. The sturdy panel-mounted instrument measures 96 mm in length and has an 80 mm panel depth, fitting seamlessly into automation control panels.

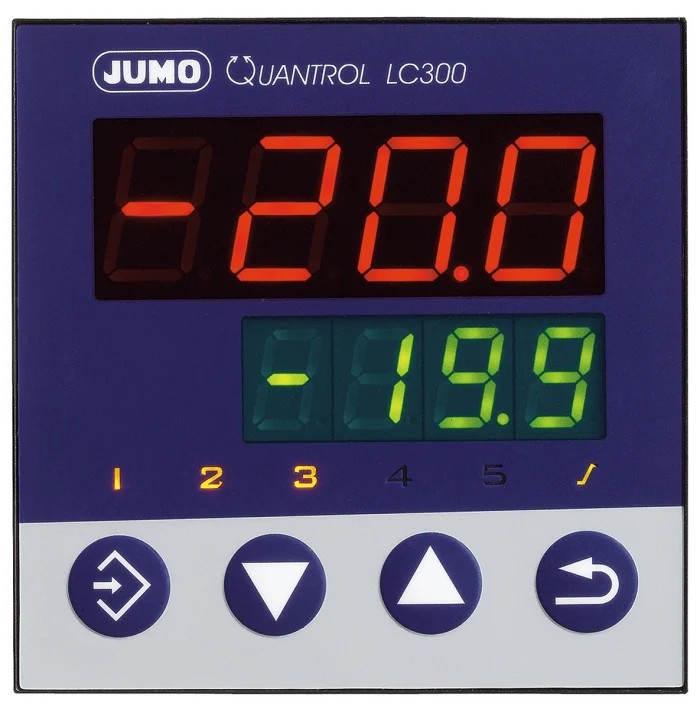

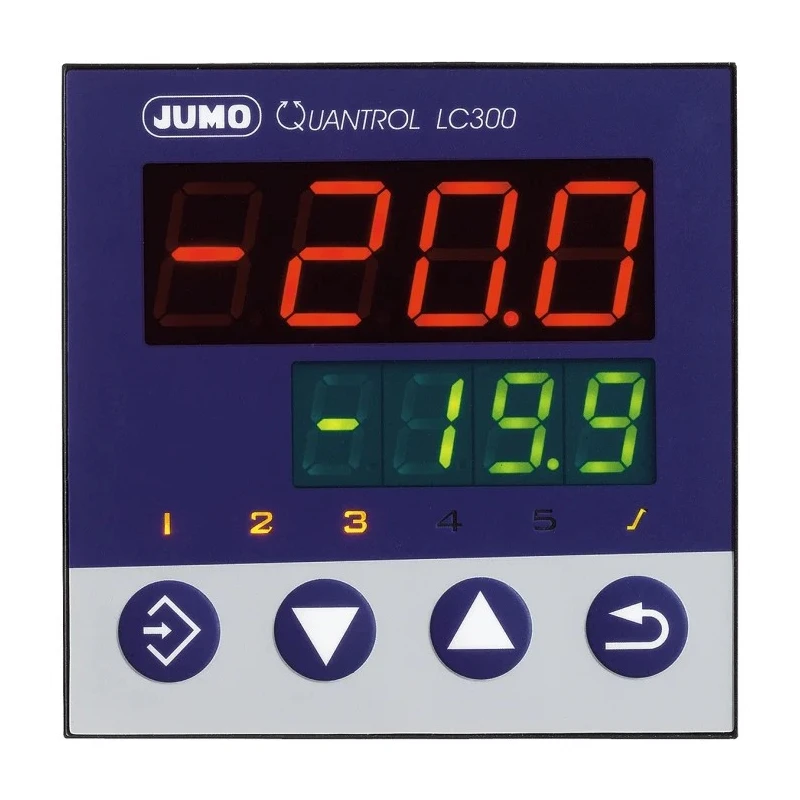

The controller features two bright 7-segment LED displays with color-coded output status indication, allowing temperature readout in either Celsius or Fahrenheit. Its IP65 rating confirms robust protection against dust and moisture, suitable for demanding industrial settings.
Advanced functionalities include autotuning PID algorithms for accurate temperature regulation, configurable alarms, sensor diagnostics, and RS485 communication interface with Modbus RTU protocol for integration into larger automation systems. Additionally, it provides firing curve support specifically tailored for pottery kiln applications, enhancing its versatility in ceramic processing industries.

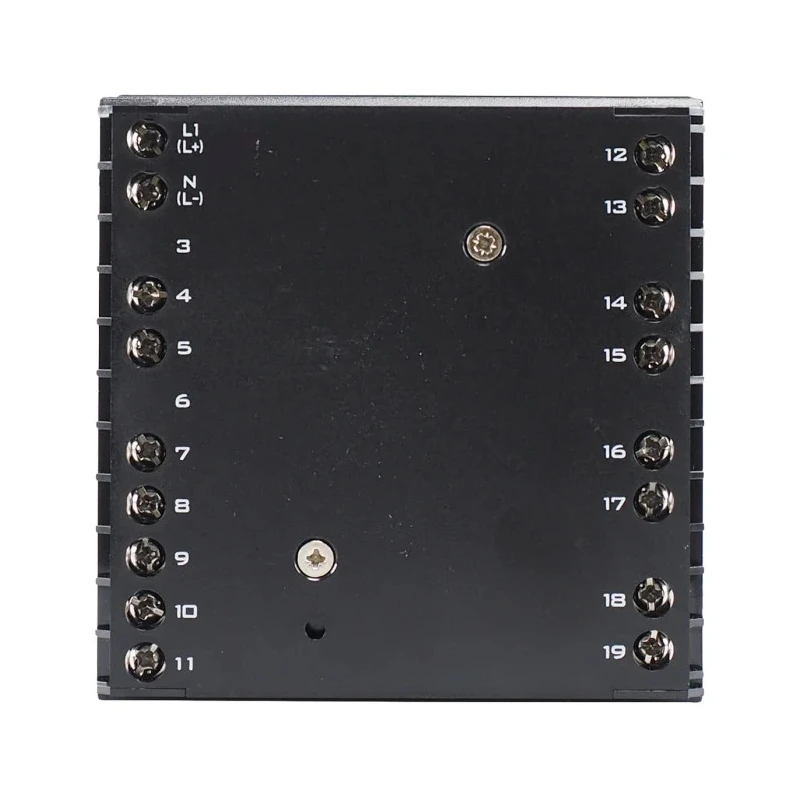

The controller accepts thermocouple inputs and can be user-programmed for different sensor types. It features screw terminal connections for secure wiring and complies with DIN EN 60529, DIN EN 61010-1, DIN EN 61326-1, UL 61010-1, and other international standards.

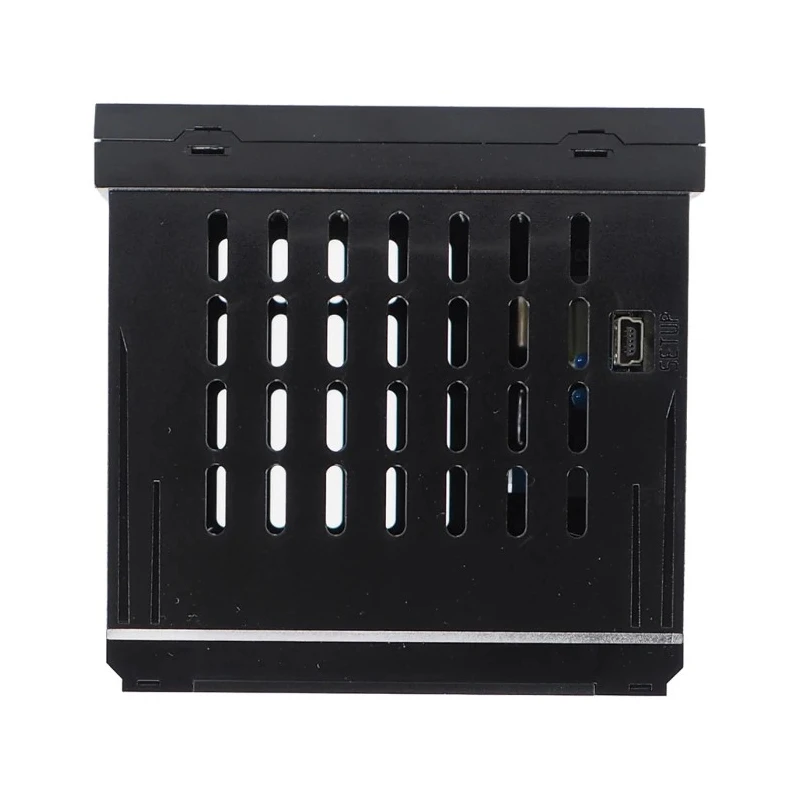

Includes manual/automatic modes, setpoint changeover, ramp and timer functions, level inhibit, and key lock options for safety and operational flexibility. The USB Mini-B interface enables easy setup and configuration, ensuring quick commissioning and maintenance.
Designed and manufactured in Germany, ensuring stringent quality and reliability.
This PID temperature controller is ideal for use in industrial automation, HVAC system management, laboratory instrumentation, process control systems, water treatment plants, ceramic kiln firing curves, and other precision temperature regulation applications.
