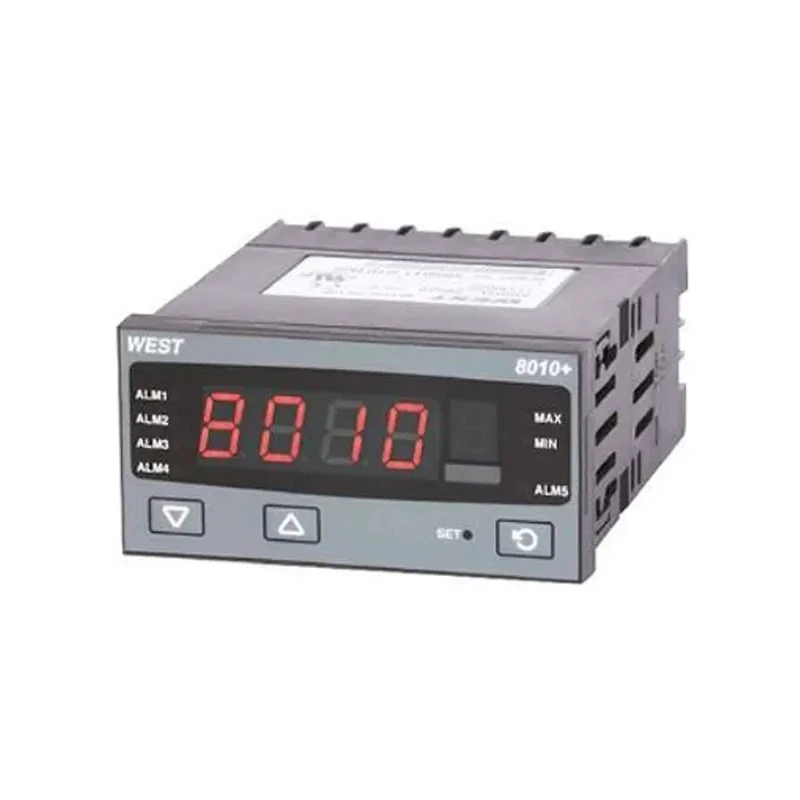

West Instruments DIN Rail PID Temperature Controller 1 Input 3 Output Relay 48V AC PID Controller P8010-2101-0200

West Instruments P8010-2101-0200 DIN Rail PID Temperature Controller featuring 1 input and 3 output relays operating at 48V AC provides reliable and accurate temperature control for industrial applications.

This model boasts a jumperless configuration and plug-in output modules including SSR driver, Triac, Relay, and linear types for flexible control output options. The LED display offers a user selectable dual color option with fixed red or green displays or green-to-red color change upon alarm conditions, enhancing visibility in process environments.

The PID controller supports advanced functions including Modbus and ASCII communication protocols facilitating seamless integration into automation systems. It includes features such as multi-point scaling and tare adjustments to suit varied process requirements.

With an auxiliary power supply of 24 watts, the P8010 can safely operate within 0°C to 55°C ambient temperatures while handling a maximum supply voltage of 48V AC. The controller outputs relay signals capable of sustaining up to 280V with a maximum current of 2A.

The robust housing meets IP66 and IP20 ingress protection ratings, ensuring dust tightness and protection against water jets. Installation is simplified with DIN Rail mounting compatibility and panel depth of 100mm, with compact dimensions (96mm length x 48mm width).

This PID temperature controller is ideal for process control in industrial manufacturing, HVAC systems, laboratory instrumentation, and automation control gear applications, offering precise temperature regulation and process safety.

Features a jumperless configuration for simplified setup. Equipped with plug-in output boards allowing easy field changes. High visibility LED display with user selectable dual color options. Supports Modbus and ASCII communications for integration.

Includes multi-point scaling and tare functions as standard. Auxiliary power supply rated at 24 watts. Designed to operate from 0°C to 55°C ambient temperature. Can handle a maximum supply voltage of 48V AC and output voltage up to 280V.

IP66 and IP20 rated for dust and water resistance. Mounts on standard DIN rails with compact dimensions 96mm length and 48mm width. Explore the range of West Instruments Temperature Controllers and accessories at EnvMart for advanced industrial temperature regulation solutions.
