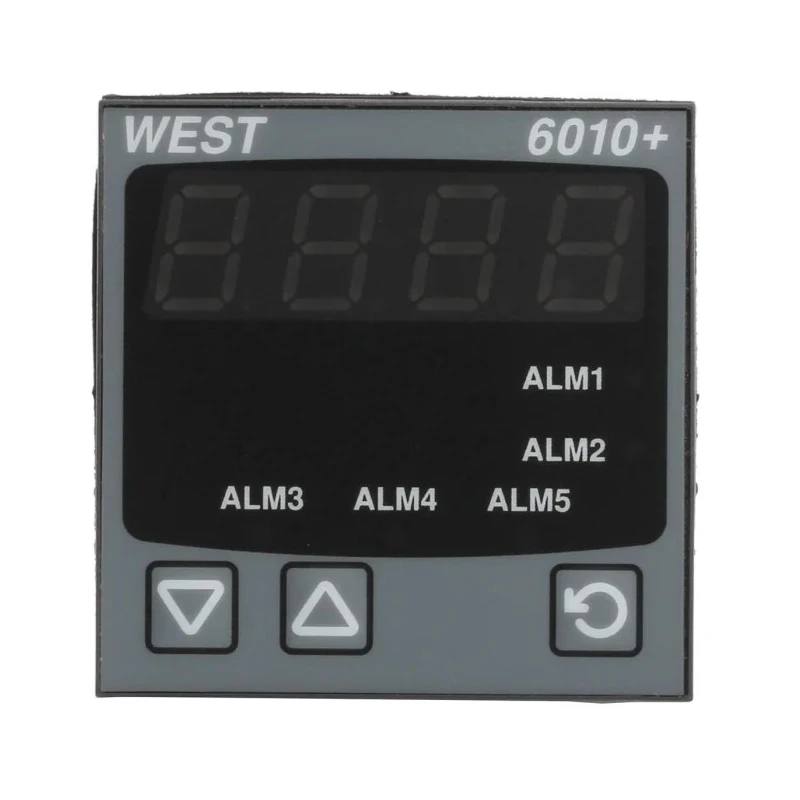

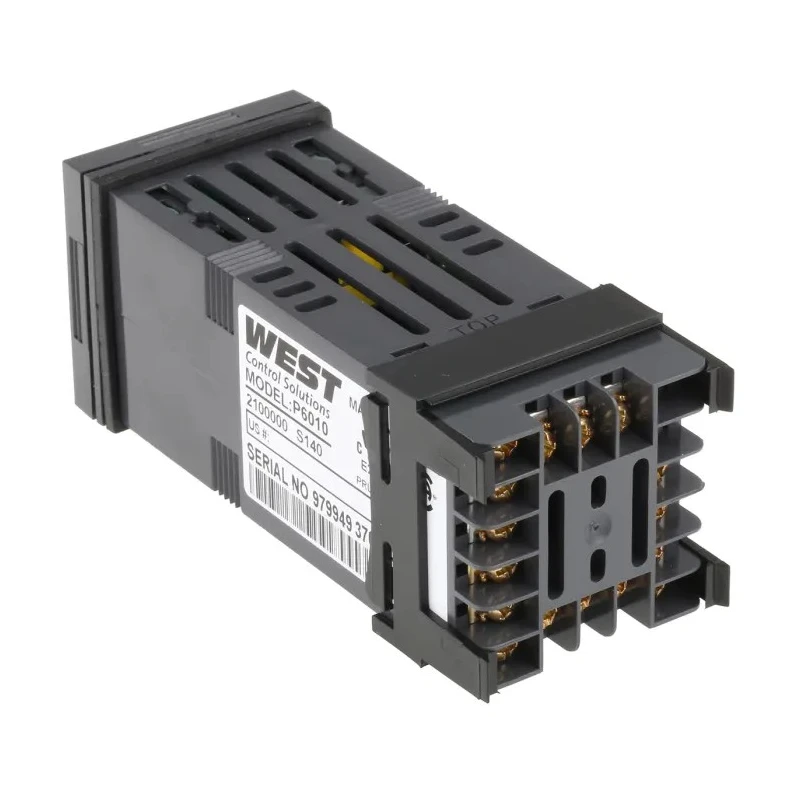

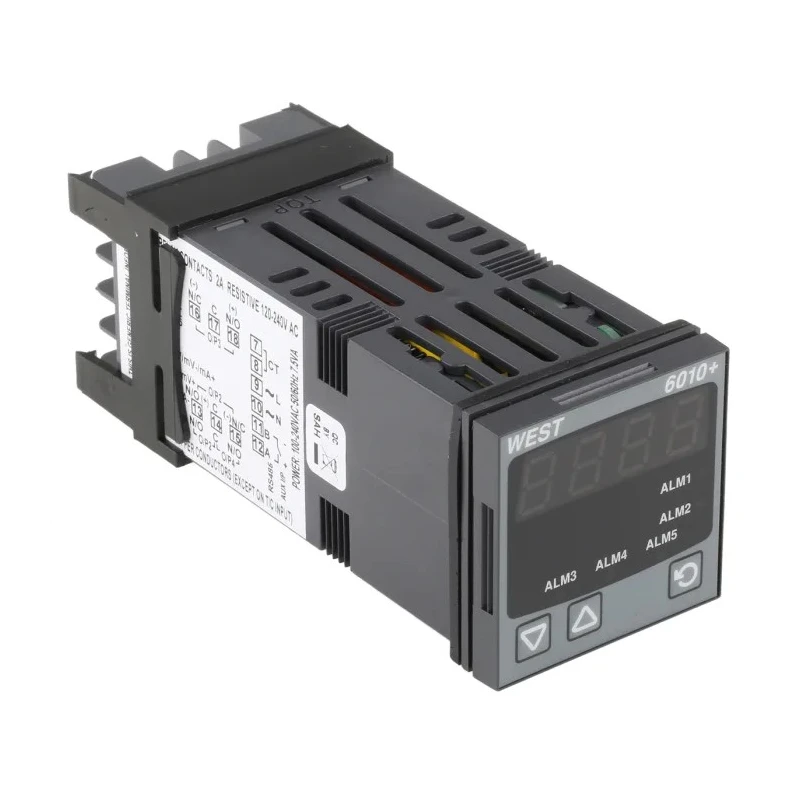

West Instruments 6010 LED Multi-Function Panel Meters for RTD Temperature Probe, Temperature, 45 mm x 45 mm P6010-2100-000

West Instruments P6010-2100-000 is an advanced LED multi-function panel meter designed for accurate process indication of RTD temperature probes and temperature signals. Featuring a high contrast, 4-digit LED display with 10 mm digit height, this indicator offers clear readings in industrial and laboratory settings.

The meter supports multiple input types, including thermocouples, RTD, and DC linear signals, providing versatile measurement capabilities. Its jumperless configuration and plug-in output boards enable quick and error-free setup. Users can equip the meter with up to four alarm relays with latching or non-latching options, and plug-in modules for SSR driver, TRIAC, relay, and linear outputs easily adapted in the field.

The included PC configurator features an intuitive wizard suitable for both novice and experienced operators, simplifying complex configuration tasks. Communication support includes Modbus and ASCII protocols for seamless integration into control systems. The 10 V SSR driver output allows control of up to three typical SSR/SCR inputs, enhancing automation capabilities.

The meter’s compact form factor includes a cut-out size of 45 mm by 45 mm and a depth of 110 mm, fitting standard panel dimensions. It operates reliably within temperature ranges of 0°C to 55°C. Designed with industrial robustness, the panel meter meets EN50082, CE marking, cRUus certification, and offers an IP66 waterproof rating with IP20 protection behind the panel.

This product is ideal for industrial automation, process control, HVAC systems, manufacturing plants, and laboratory applications requiring precise temperature monitoring and control. Its durable construction and comprehensive features make it suitable for diverse environments.

High contrast 4-digit LED display with 10 mm digit height for excellent visibility. Supports inputs from thermocouples, RTD sensors, and DC linear signals. Jumperless configuration with plug-in output modules for reliable and flexible setups.

Equipped with up to 4 alarm relays with selectable latching or non-latching functions. Includes a PC configurator wizard for easy, user-friendly configuration. Compatible with Modbus and ASCII communication protocols for integration.

10 V SSR driver output supports up to three SSR/SCR inputs. Compact panel mounting with cutout size of 45 mm height by 45 mm width and 110 mm depth. Operating temperature range from 0°C to 55°C for diverse industrial environments.

Compliant with EN50082, CE, cRUus certifications, and IP66 rating for robust protection. Explore the range of West Instruments Multi-Function Panel Meters and other industrial instrumentation products at EnvMart for precision and reliability in your applications.
