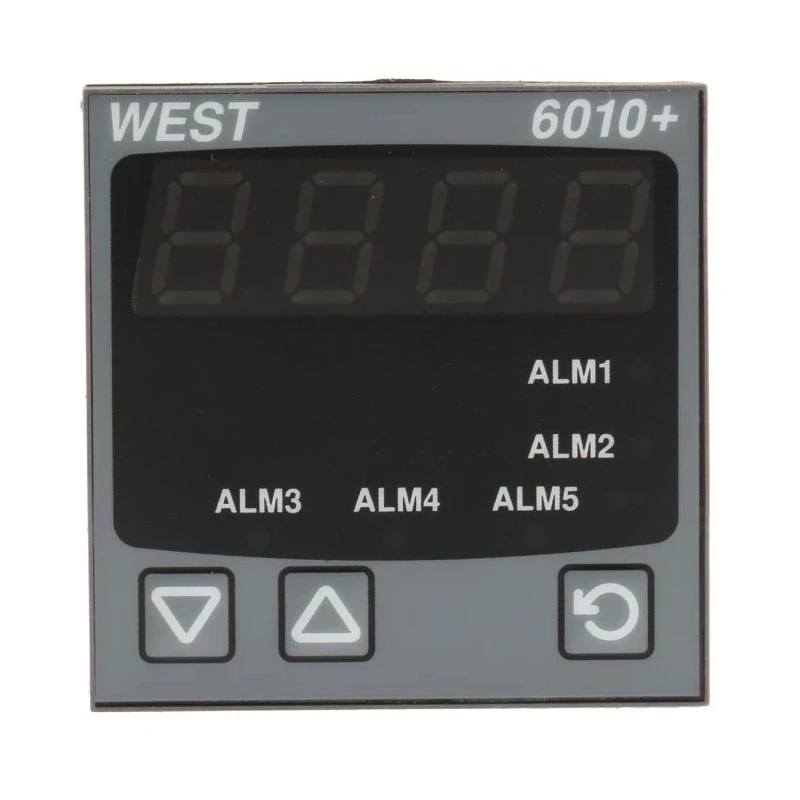

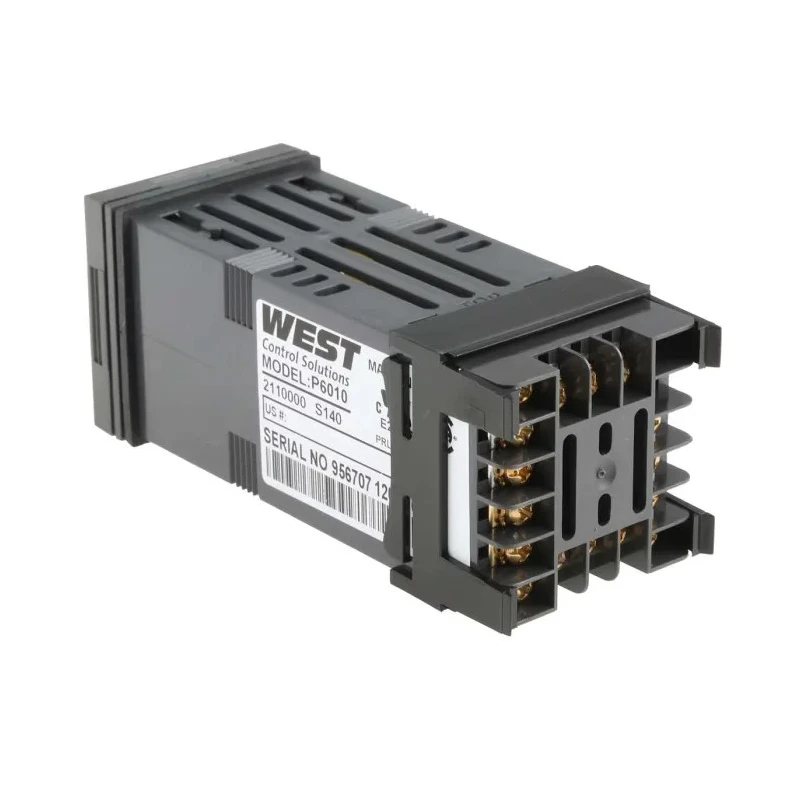

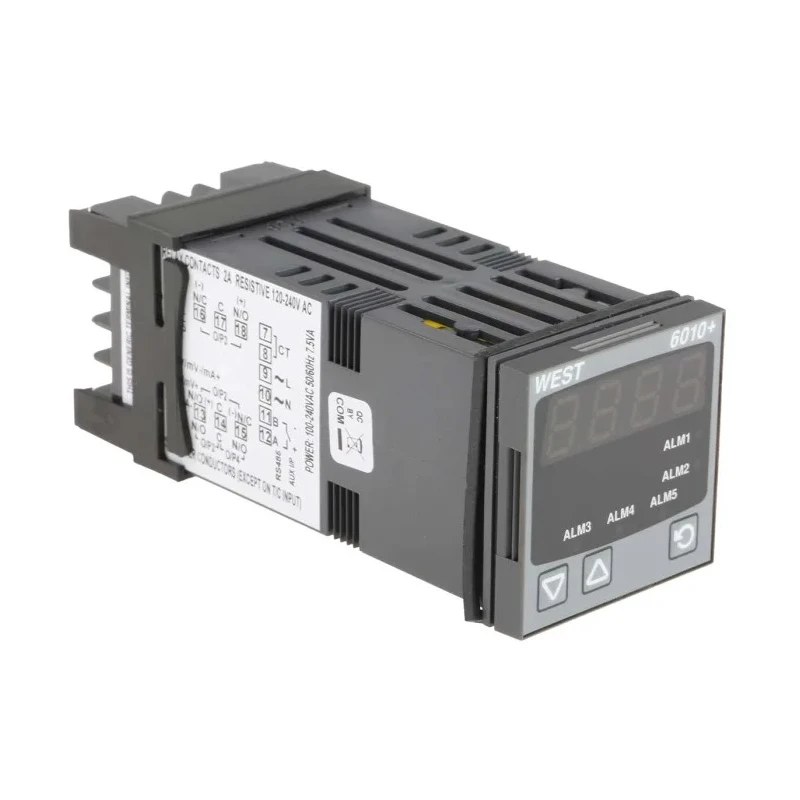

West Instruments Digital Panel Multifunction Meter RTD Temperature Probe 45 mm x 45 mm P6010-2110-000

Free Delivery in India | Lowest Global Shipping Charges

West Instruments Digital Panel Multifunction Meter RTD Temperature Probe 45 mm x 45 mm P6010-2110-000

Name: West Instruments Digital Panel Multifunction Meter RTD Temperature Probe 45 mm x 45 mm P6010-2110-000
Brand: West Instruments
SKU: 342986
Price: 523.81 USD
Availability: InStock



Category Digital Panel Multifunction Meter Brand West Instruments Condition New

Specifications

Country of Origin	United Kingdom
Display Type	LED
Brand	West Instruments
Model	P6010-2110-000
Depth	110mm
Series	6010
Maximum Operating Temperature	55°C
Meter Type	Electronic
Number Of Digits	4
Minimum Operating Temperature	0°C
Digit height	10mm
Standards/Approvals	EN50082
Properties Measured	RTD Temperature Prob, Temperature
Cutout Height	45mm
Cutout Width	45mm
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007
Maximum Measurement	10 V
1/16 DIN 4 digit indicator,240V 2 alarmBrand	West Instruments

Key Features

4-digit LED display with 10 mm digit height assures clear visibility.
Compact panel cutout of 45 mm x 45 mm and 110 mm depth for easy installation.
Operates reliably within 0°C to 55°C temperature range.
Configurable outputs include 2 x SPST and SPDT relays and up to 4 alarm relays.
Supports thermocouple, RTD, and DC linear inputs for versatile measurement.
Plug-in output modules enable SSR driver, TRIAC, relay, and linear output options.
Equipped with Modbus and ASCII communication interfaces for integration.
Self-recognition option boards ensure error-free setup.

Product Description

West Instruments P6010-2110-000 Digital Panel Multifunction Meter is engineered for precise measurement of temperature via RTD temperature probes and a range of process variables. Featuring a bright 4-digit 10 mm LED display housed in a compact 45 mm x 45 mm panel cutout with a depth of 110 mm, this electronic meter provides excellent visibility and fits easily into control panels.

Designed for industrial and laboratory environments, the device supports thermocouple, RTD, and DC linear signal inputs. It delivers versatile output options with 2 x SPST and SPDT relays suitable for single or dual alarms, plus up to 4 optional latching or non-latching alarm relays.

The meter allows plug-in output modules for SSR driver, TRIAC, relay, and linear outputs which can be field changed easily. It features a 10V SSR drive output to operate up to three SSR or SCR inputs, enhancing control capabilities.

Communications are facilitated via Modbus and ASCII protocols, allowing integration into automation systems. Setup is simplified through a jumperless configuration and a PC configurator wizard suitable for both novice and experienced users. The self-recognition of option boards promotes error-free configuration.

The meter is certified CE and cRUus, and rated for IP66 front panel sealing and IP20 behind panel protection, ensuring robust operation in industrial settings. It complies with EN50082, ANSI/ESD S20.20:2014, and BS EN 61340-5-1:2007 standards.

Suitable for industrial automation, process control, HVAC, laboratory measurements, and manufacturing environments, this multifunction panel meter provides reliable monitoring and control of temperature and other parameters.

4-digit LED display with high visibility. Multiple input types including RTD and thermocouple. Configurable alarm relays with latching options. Plug-in and field changeable output modules. Modbus and ASCII communication capabilities.

Robust compliance and environmental ratings. Explore the West Instruments category for additional industrial measurement and control solutions at EnvMart.
