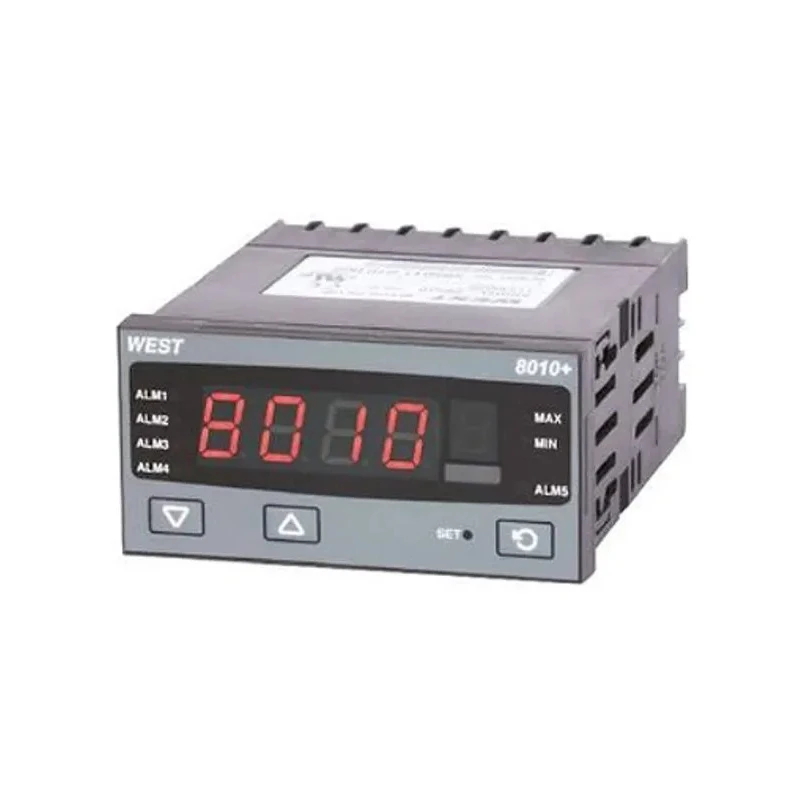

West Instruments DIN Rail PID Temperature Controller 1 Input, 2 Output Relay 24V ac/dc P8010-1100-0200

West Instruments P8010-1100-0200 DIN Rail PID Temperature Controller is engineered for precise temperature regulation in industrial process control applications. Designed with 1 input and 2 output relay configurations, this controller supports robust and reliable operation powered at 24V ac/dc.

The device incorporates an LED display for clear process variable indication with user-selectable dual color display options to indicate alarm conditions effectively. Its jumperless configuration and plug-in output modules facilitate simple setup and flexibility, allowing field changes without error.

Communication capabilities include Modbus and ASCII protocols, enabling smooth integration in automated systems. The controller supports multi-point scaling and tare features to enhance measurement accuracy.

With IP20 and IP66 ratings, it withstands harsh industrial environments, operating comfortably within 0°C to 55°C. Its compact footprint (110mm length, 48mm width) and DIN Rail mounting make it ideal for panel depth requirements of 100mm.

Optional alarm relays can be programmed as latching or non-latching for customized control strategies. The 10V SSR driver output facilitates driving up to 3 SSR or SCR inputs, expanding control capabilities.

This controller complies with international standards including UL, ULC, and CE, assuring reliability and safety in critical applications across manufacturing, HVAC, water treatment, and laboratory instrumentation.

Features a jumperless configuration for straightforward setup. Equipped with high visibility LED display with dual color alarm indication. Supports multiple communication protocols including Modbus and ASCII. Compact DIN Rail mount design suitable for various panel depths.

Robust construction with IP20 and IP66 ratings for industrial environments. Flexible output modules for SSR, Triac, relay, and linear signals. Optional alarm relay configurations with latching and non-latching modes. 10V SSR driver output supporting multiple SSR/SCR inputs.

Multi-point scaling and tare for precise measurement adjustments. Certified to UL, ULC, and CE standards ensuring quality and compliance. Explore the wide range of West Instruments process control devices available at EnvMart for reliable and precise temperature management solutions.
