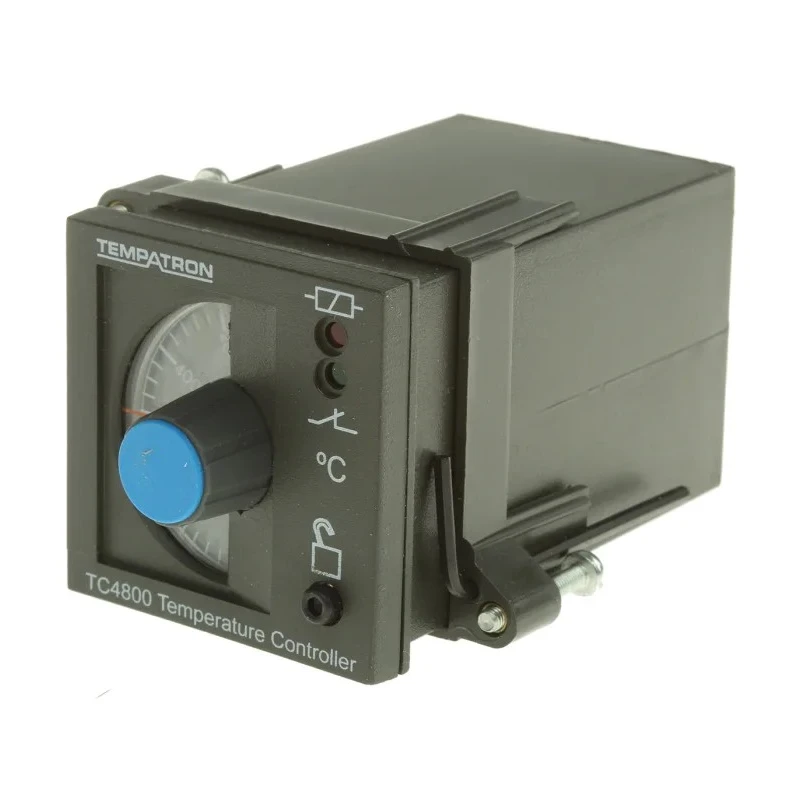

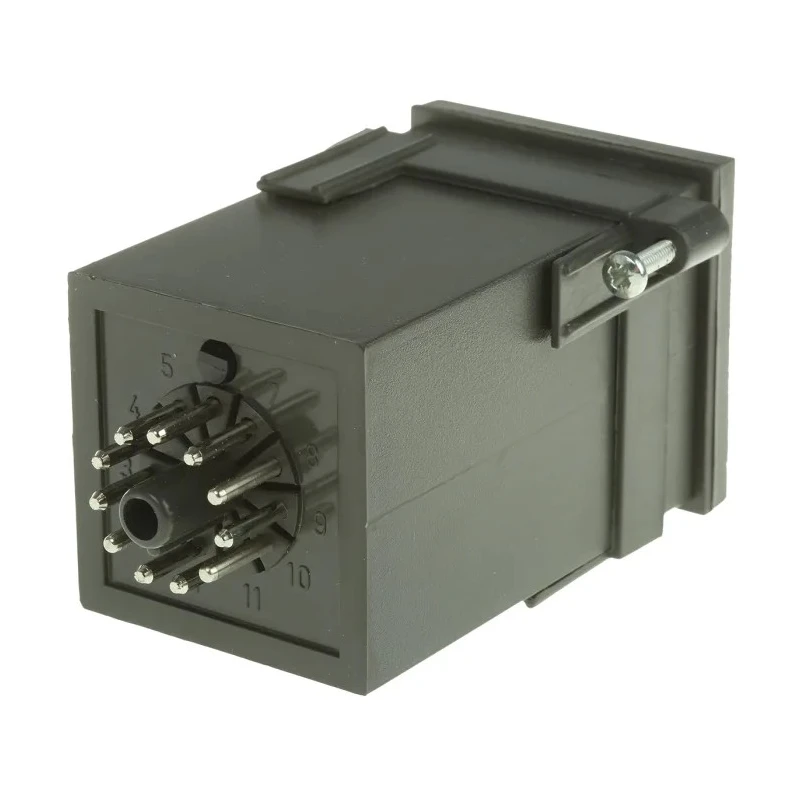

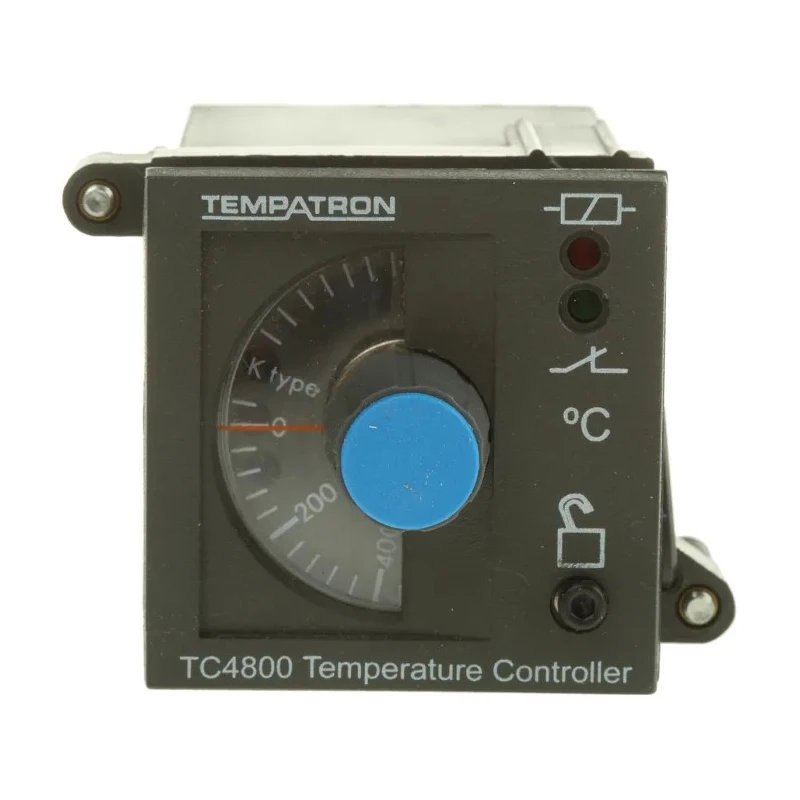

Tempatron On-Off Temperature Controller 1 Output Relay 5A 230V AC DIN Rail Panel Surface Mount TC4800

The Tempatron TC4800 model is an On-Off temperature controller designed for industrial automation, laboratory, and process control applications. It operates with 1 output relay rated for a maximum current of 5A and supports a supply voltage of 230V AC, making it suitable for various electrical control systems. The unit is compatible with K Type Thermocouple inputs, enabling precise temperature sensing across a range from -10°C to 50°C.

This temperature controller features a clear LED display that provides status and supply indication to aid in monitoring and operation. The TC4800 series device offers versatile mounting options including DIN Rail, panel, and surface mounting, with compact physical dimensions of 89 mm length, 48 mm width, and 74 mm panel depth. The unit is IP40 rated, providing protection against ingress of solid particles.

Engineered for robust industrial environments, the controller complies with CE marking standards EN61010-1 and EMC directives EN50081-1/50082-1, ensuring safety and electromagnetic compatibility. It comes supplied with a hex key to lock the temperature setting, preventing accidental changes and enhancing operational security.

The product is manufactured in the United Kingdom and includes a panel cut-out dimension of 45 x 45 mm for straightforward installation into control panels and electrical enclosures. Due to its reliable control capabilities, the Tempatron TC4800 is widely used in HVAC, manufacturing, water treatment, and other industrial process control systems.

Operates at 230V AC supply with relay output suitable for 5A maximum current. K Type Thermocouple input for accurate temperature measurement. Robust LED display for operational and status indication. Flexible mounting options: DIN Rail, panel, and surface mount.

Designed to operate from -10°C to +50°C with IP40 ingress protection. CE marked to international safety and EMC standards. Manufactured in the United Kingdom for assured quality. Includes locking hex key for temperature setting security.

Compact dimensions facilitate easy integration into panels.

EnvMart offers the Tempatron TC4800 as part of a comprehensive range of industrial Temperature Controllers suitable for high-precision and demanding applications. Explore our catalog for more innovative automation solutions to enhance operational efficiency and control accuracy.
