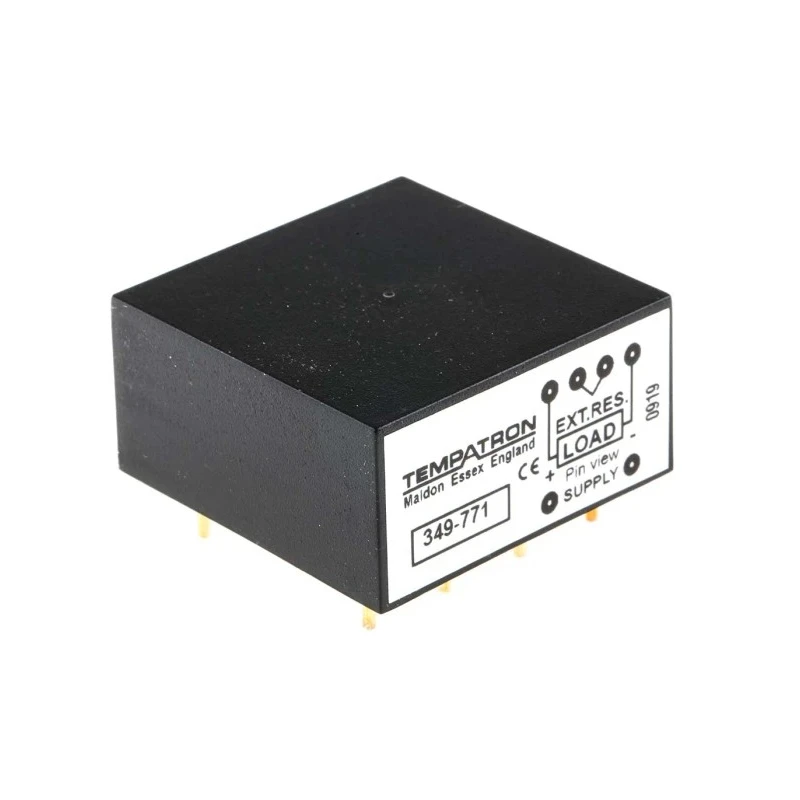

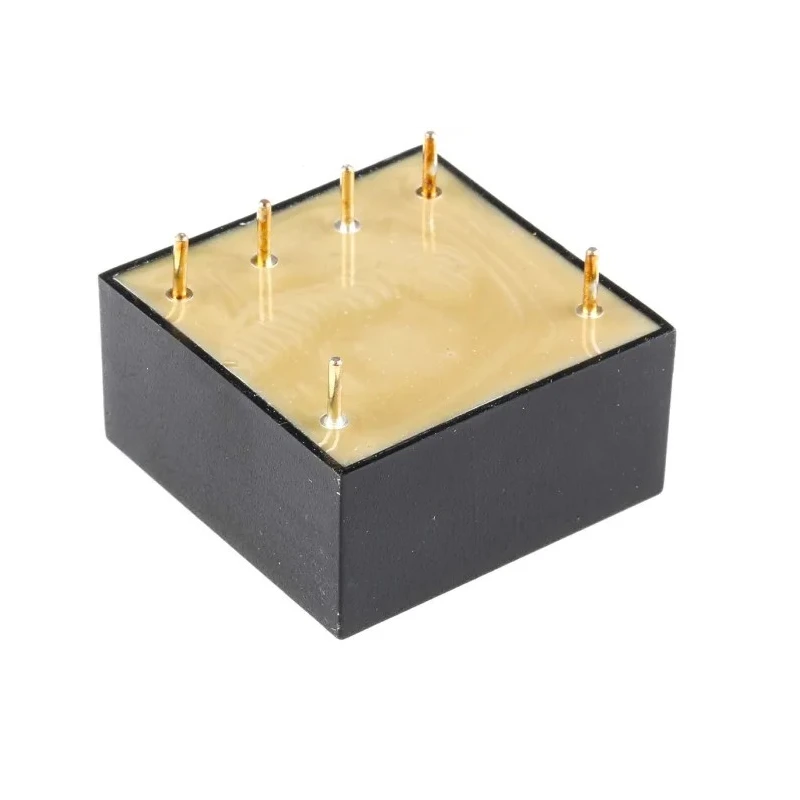

Tempatron MDE Series PCB Timer Relay, 10 to 30 V DC, 0.5 to 20 s Time Range, Offset Double Ring End Function MDE20SRP30VDC

Tempatron MDE20SRP30VDC is a solid-state PCB timer relay designed for precise time delay applications in industrial, automation, and electrical control systems. It operates on a DC voltage supply ranging from 10 to 30 volts and provides a configurable time range between 0.5 and 20 seconds. Its offset double ring end function ensures high timing accuracy suitable for various timing control requirements.

This timer relay features an IP65 rating, protecting it against dust and water ingress, making it reliable for harsh environments. The compact size of 40 mm by 40 mm by 20 mm facilitates easy integration on printed circuit boards. It operates optimally within a wide temperature range from -20°C to 60°C, suitable for diverse industrial conditions.

The relay supports a contact current of 150 mA and provides an output sink current of 150 mA. It includes a reset functionality by removing the power supply with an ultrafast 50 ms reset time, enhancing the device's operational cycle.

Manufactured in the United Kingdom, this timer relay complies with CE standards and international safety and electromagnetic compatibility standards EN61010-1 and EN50081-1/50082-1. The encapsulated solid-state design improves reliability and lifespan, making it ideal for industrial automation, process control, and electronic circuit timing applications.

PCB mounting with IP65 protection. Operating voltage range 10 to 30 V DC. Time range from 0.5 to 20 seconds. Temperature range from -20°C to 60°C. 150 mA contact and output sink current. CE and EN standards compliant. Compact size for PCB integration.

Rapid reset in 50 ms.

This timer relay is part of the MDE series known for reliability and precise timing functions in electrical and industrial automation sectors. Explore more Timer Relays and related automation components on EnvMart for comprehensive control solutions.
