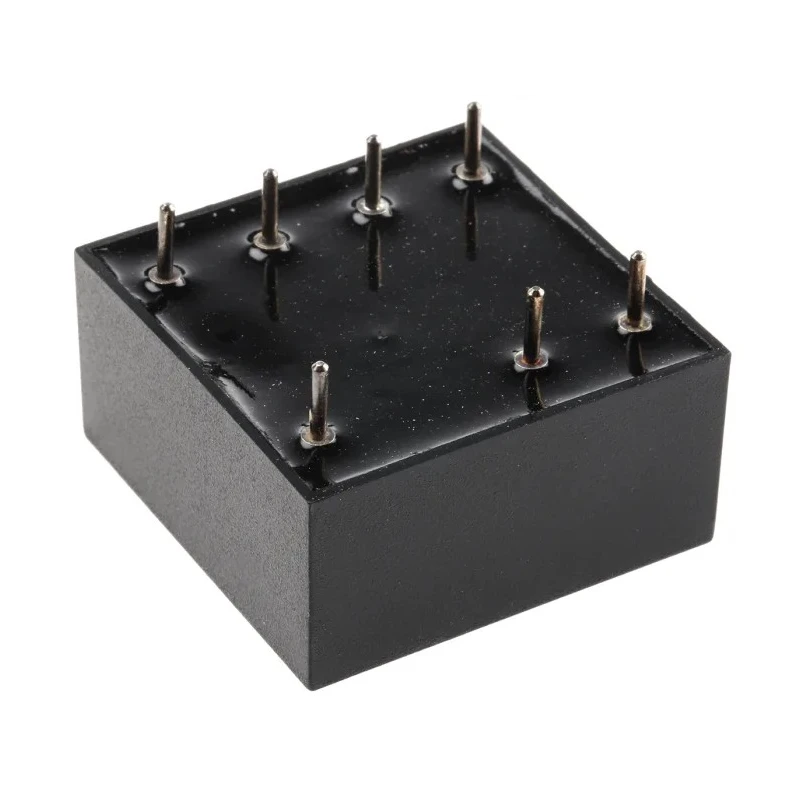

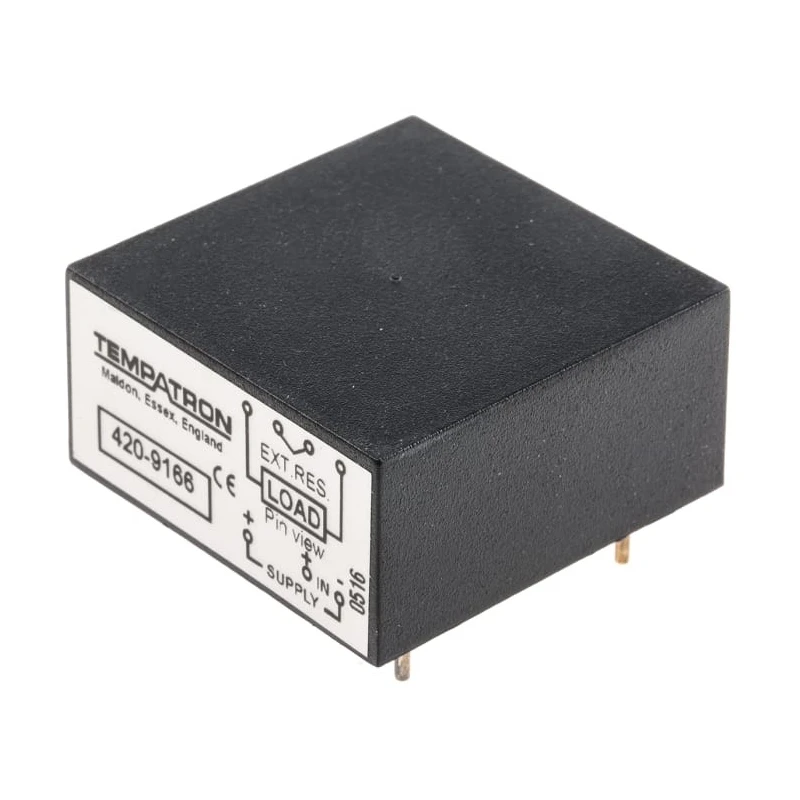

Tempatron Mint Series Panel Timer Relay 10 to 30 V dc, 0.5 to 20 s ON Delay, 1-Function MDD20SRP30VDC
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Tempatron |
| Height | 20mm |
| Function | Offset Double Ring End |
| Length | 40mm |
| Model | MDD20SRP30VDC |
| IP Rating | IP65 |
| Mode | ON Delay |
| Width | 40mm |
| Mount Type | Panel |
| Series | Mint |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Time Range | 0.5 to 20 s |
| Terminal type | Solder |
| Standards/Approvals | CE marked (meets EN61010-1 low voltage and EN50081-1/50082-1 EMC directives) |
| Number of Timer Functions | 1 |
| Contact Current | 150mA |
| Supply DC Voltage | 10 to 30 V dc |
| Supply AC Voltage | 230V ac |
Key Features
- This timer relay offers one timer function with offset double ring end functionality.
- Mount type is designed for panel installation with solder terminal connections.
- It operates reliably within a temperature range of -20°C to 60°C, suited for demanding environments.
- Rated contact current is 150 mA with robust IP65 ingress protection rating.
- The relay measures 40 mm in length, 40 mm in width, and 20 mm in height, adhering to Mint series standards.
- Complies with CE standards including EN61010-1 low voltage and EN50081-1/50082-1 EMC directives.
- Reset is achieved by removing power supply with a reset time of 50 ms, incorporating encapsulated solid-state timer technology.
- Output sink current capability of 150 mA ensures compatibility with control circuits.
Product Description
Tempatron MDD20SRP30VDC Mint Series Panel Timer Relay operates within a supply voltage of 10 to 30 V dc and features an ON Delay mode with a timing range of 0.5 to 20 seconds. This panel-mount timer relay offers a single timer function with offset double ring end contacts, designed to meet demanding industrial and automation control applications.
Constructed with solder terminals and a compact form factor measuring 40 mm by 40 mm by 20 mm, it ensures ease of integration into control panels and automation systems.
Its IP65 rating provides excellent protection against dust and water ingress, ensuring reliability in challenging environmental conditions between -20°C and 60°C operating temperatures.
The device meets CE certification standards complying with EN61010-1 low voltage and EN50081-1/50082-1 electromagnetic compatibility directives, making it suitable for industrial, manufacturing, and HVAC control systems.
Encapsulated solid-state timer technology and a fast reset time of 50 ms by power removal enhance its performance, while the 150 mA contact current and output sink current supports robust and precise control operations.
This timer relay offers one timer function with offset double ring end functionality. Mount type is designed for panel installation with solder terminal connections. It operates reliably within a temperature range of -20°C to 60°C, suited for demanding environments.
Rated contact current is 150 mA with robust IP65 ingress protection rating. The relay measures 40 mm in length, 40 mm in width, and 20 mm in height, adhering to Mint series standards. Complies with CE standards including EN61010-1 low voltage and EN50081-1/50082-1 EMC directives.
Reset is achieved by removing power supply with a reset time of 50 ms, incorporating encapsulated solid-state timer technology. Output sink current capability of 150 mA ensures compatibility with control circuits. Made in the United Kingdom, reflecting high manufacturing quality.
This panel timer relay is ideal for industrial automation, electrical control panels, HVAC systems, and manufacturing process control applications where reliable and precise timing functions are critical.
Explore the EnvMart collection for more Timer Relays and automation control components to support your projects and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a supply voltage range of 10 to 30 V dc.
The ON Delay function has a timing range of 0.5 to 20 seconds.
This timer relay measures 40 mm in length, 40 mm in width, and 20 mm in height.
The rated contact current is 150 mA.
It is designed for panel installation and features solder terminal connections.
It has an IP65 ingress protection rating, providing excellent protection against dust and water.
It operates reliably within a temperature range of -20°C to 60°C.
It is CE marked and complies with EN61010-1 low voltage and EN50081-1/50082-1 EMC directives.
Reset is achieved by removing the power supply, with a reset time of 50 ms.
This model offers one timer function with offset double ring end functionality.
The output sink current capability is 150 mA, ensuring compatibility with control circuits.
It is manufactured in the United Kingdom.
