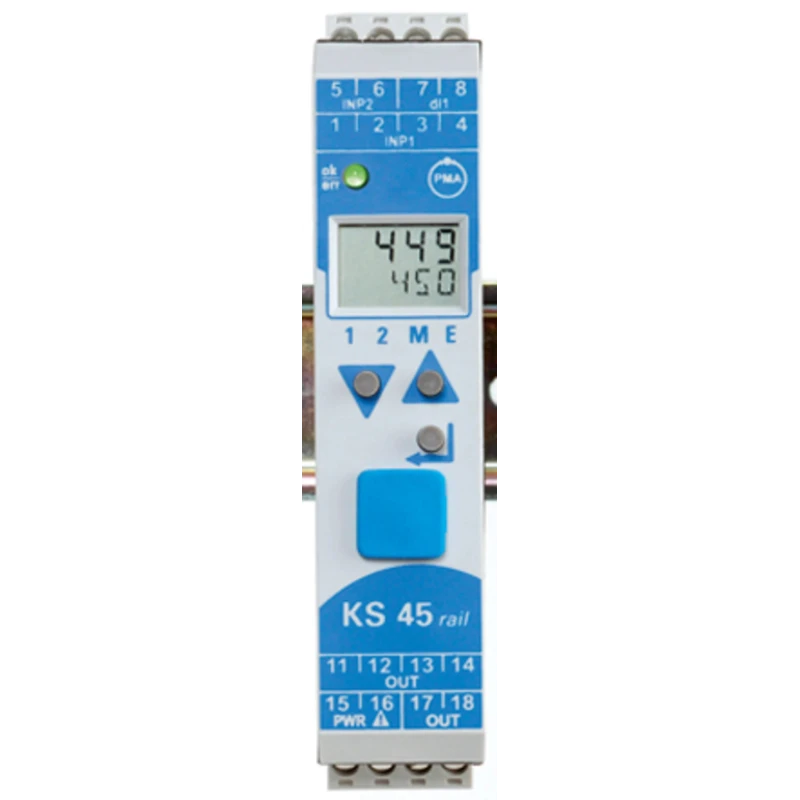

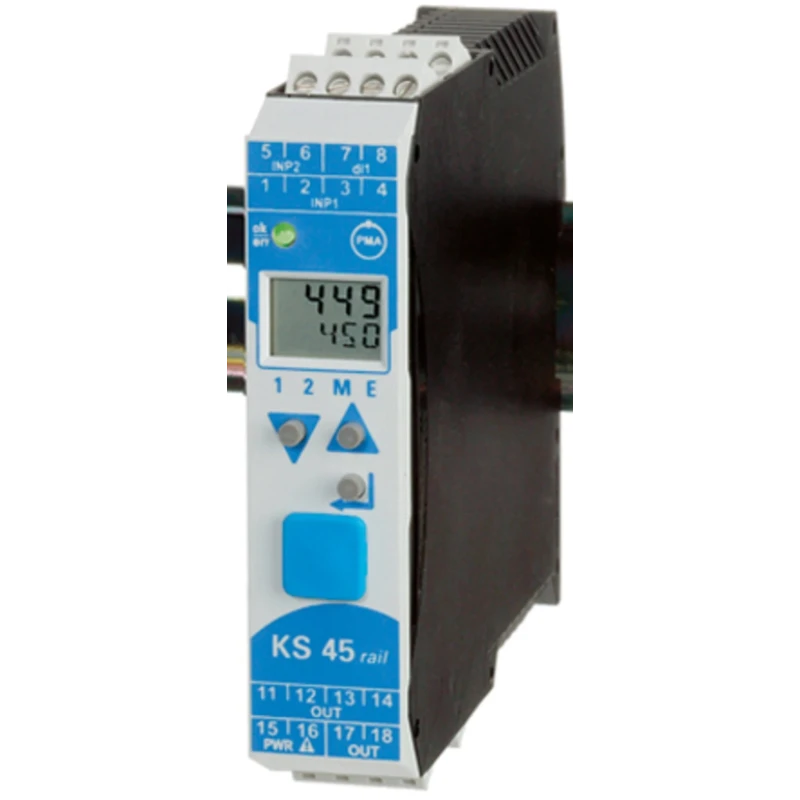

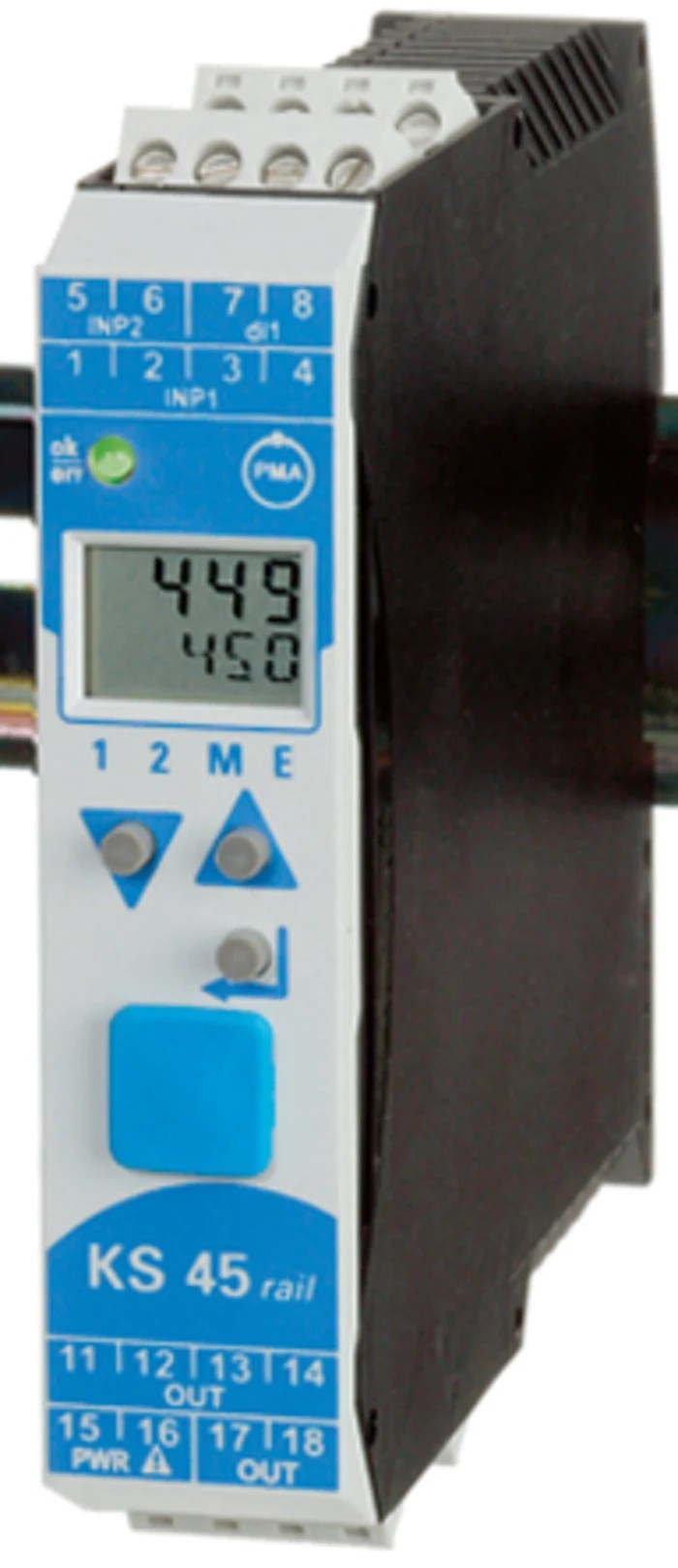

P.M.A KS45 Top Hat Rail, DIN Rail PID Temperature Controller 1 Input, 2 Output Relay 260V AC On-Off KS45

P.M.A KS45 PID Temperature Controller KS45 is a compact and versatile device designed for precise and cost-effective temperature regulation in industrial environments. It features a universal input compatible with various sensor types including thermocouples, RTDs, voltage, and current signals.

Mountable on top hat DIN rails, this controller has a slim profile of 22.5 mm width and a panel depth of 99 mm, making it an ideal solution for space-constrained control cabinets. The LED multi-line display allows operators to monitor process values in real-time easily.

Equipped with RS485 Modbus RTU digital communication, the KS45 facilitates integration into PLC and PC control systems for distributed automation tasks. It supports several control modes such as on-off, 2-point, 3-point stepping, and continuous PID control with self-tuning functionality for optimized performance.

The device has two relay output contacts rated up to 2A maximum current, suitable for controlling solid-state relays or other actuators. Galvanic isolation enhances safety and signal integrity by electrically separating inputs, outputs, supply, and communication lines.

The controller supports applications including furnaces, ovens, burners, plastics processing, driers, climatic chambers, heat treatment plants, sterilizers, and oxygen applications.

Compact design saves control cabinet space while offering advanced temperature control capabilities. Front interface with 3-key operation enables simplified setup and configuration directly on the device. Plug-in screw or spring-clamp connectors provide reliable and easy wiring solutions.

High response speed (100 ms) supports fast signal control requirements.

This product complies with major international standards such as CE, DIN 3440, cULus, EN 14597, VDE 0411-1, and EN 61010-1, ensuring quality and safety in demanding industrial environments. Manufacturing origin is Germany, reflecting robust engineering.

Explore EnvMart's wide range of Temperature Controllers and top hat rail DIN rail mounting solutions for industrial automation and control.
