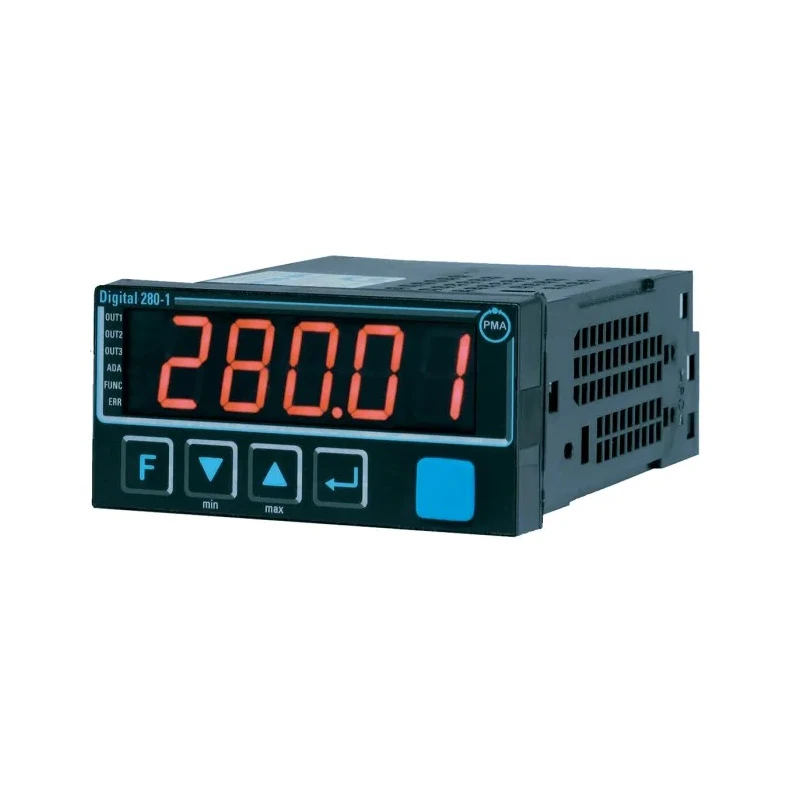

P.M.A BluePort Panel Temperature Indicator 4 Input 3 Output Relay 260V D280-111-0000D-000

P.M.A D280-111-0000D-000 BluePort Panel Temperature Indicator is a high-precision instrument designed for reliable temperature control and monitoring with an auxiliary power supply of 24 V ac and maximum supply voltage of 260V. It features 4 inputs and 3 relay outputs allowing for versatile control options in industrial automation.

The device uses K Type Thermocouple inputs, making it suitable for a wide temperature range and multiple sensor compatibility. The 5 digit LED display with large 20mm digits ensures clear visibility of temperature readings. Digital communication is facilitated through RS485 and RS422 protocols, allowing integration into automation networks.

The indicator supports customer-specific linearization across 16 segments enhancing sensor calibration accuracy. It provides limit signaling functions including hysteresis control, discriminator time, and rate of change monitoring for sophisticated process management. Its reaction time is rapid with a scan rate of 100ms cycle time, enabling quick process adjustments.

Mounting is designed for panel installation with dimensions of 96 mm width and length and 118 mm panel depth. The BluePort® front interface combined with BlueControl® software supports user-friendly configuration and maintenance, including error list and maintenance manager features.

Its IP65 and IP20 protection ratings ensure durability in various industrial environments including furnaces, ovens, burners, boilers, weighing and batching systems, process control, and plastics processing industries. The indicator’s multiple control modes include on/off, two-point, and continuous control as well as oxygen measurement with high impedance inputs.

Standards compliance includes EN 61010-1, CULus certification, EN 61 326-1, GOST-R Certificate, and UL 94 VO flame retardancy ensuring quality and safety in use. The indicator supports K Type Thermocouple inputs for accurate temperature measurement.

Features a 5 digit LED display with 20mm high digits for clear readings. Equipped with RS485 and RS422 digital communication interfaces. Includes customer-specific linearization with 16 segments for sensor calibration. Operating temperature range from 0°C to 60°C suitable for industrial environments.

Its IP65 and IP20 ratings provide protection for use in harsh conditions and panel mounting. Allows use as indicator, on/off controller, two-point or continuous controller. Measures 96mm length and width with a panel depth of 118mm.

Supports limit signalling functions with hysteresis and rate of change monitoring. Designed for industrial applications such as furnaces, ovens, burners, boilers, and plastics processing. Explore EnvMart’s wide selection of Temperature Controllers and automation solutions to find matching products for your industrial control needs.
