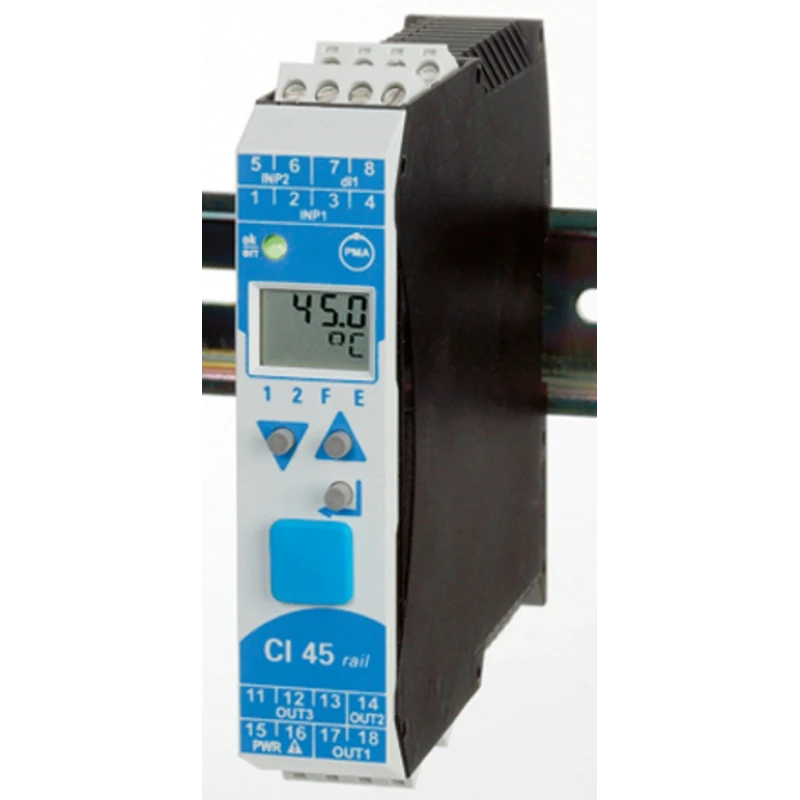

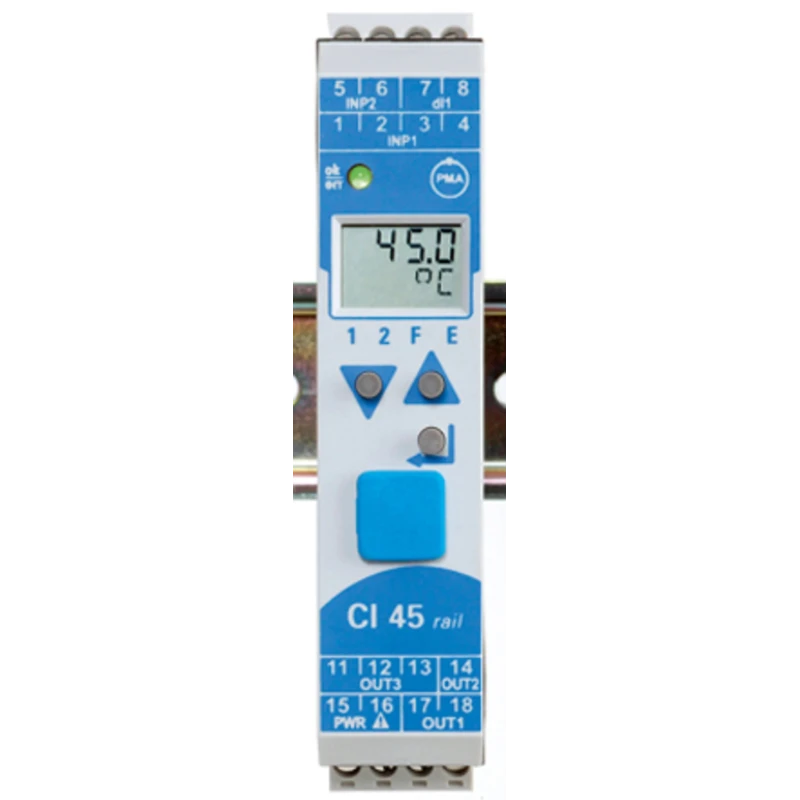

P.M.A CI45 Series Signal Conditioner Universal Input Universal Output 260V AC 90V AC Supply CI45

P.M.A CI45 Series Signal Conditioner model CI45 is engineered for universal input and universal output signal conditioning with supply voltages of 260V AC and 90V AC. This device is designed to deliver precise and cost-effective signal conversion and isolation for industrial automation and control processes.

The universal input supports a wide range of signals including frequency (0 to 100 kHz), resistance (0 to 4500 Ω), voltage (-10 to 30 V), digital bits (15 to 31 bit), and temperature (-200 to 2315 °C). The output range includes 14 bit resolution signals, 0 to 10 V voltage output, 0 to 1000 Hz frequency output, and 0 to 20 mA current output, offering versatility for various industrial instrumentation needs.

Featuring a DIN rail mount type, the CI45 series is compact and suitable for streamlined panel integration. The product operates reliably across a temperature range of -20°C minimum up to 60°C maximum and provides an IP20 rating for solid particle protection. It incorporates galvanic isolation between inputs, outputs, supply voltage, and communication interfaces to ensure signal integrity and equipment protection.

Compliant with international standards EN 61010-1, DIN EN 60068-2-27 (shock), DIN EN 60068-2-6 (vibration), CE certification, and pending UL/cUL certification, this signal conditioner is suitable for rigorous industrial environments. Optional configurations allow the addition of relays and frequency inputs to extend functional capabilities as per customer requirements.

This device is ideal for industrial, laboratory, manufacturing, and automation system applications requiring accurate signal conversion, conditioning, and isolation. Its robust construction and flexible input/output ranges support diverse measurement and control tasks.

Supports universal input signals: frequency, resistance, voltage, digital, and temperature. Provides universal output signals with voltage, current, and frequency options. Compact DIN rail mounting for easy installation.

Wide operating temperature range from -20°C to 60°C. Galvanic isolation enhances safety and noise immunity. Certified to multiple industrial standards ensuring compliance. Optional relays and additional inputs for expanded functionality.

IP20 ingress protection suitable for indoor industrial environments. High resolution and fast cycle time support precise signal processing. Manufactured in Germany ensuring quality and reliability. Explore more Signal Conditioners in the P.M.A product range at EnvMart for dependable industrial signal management solutions.
