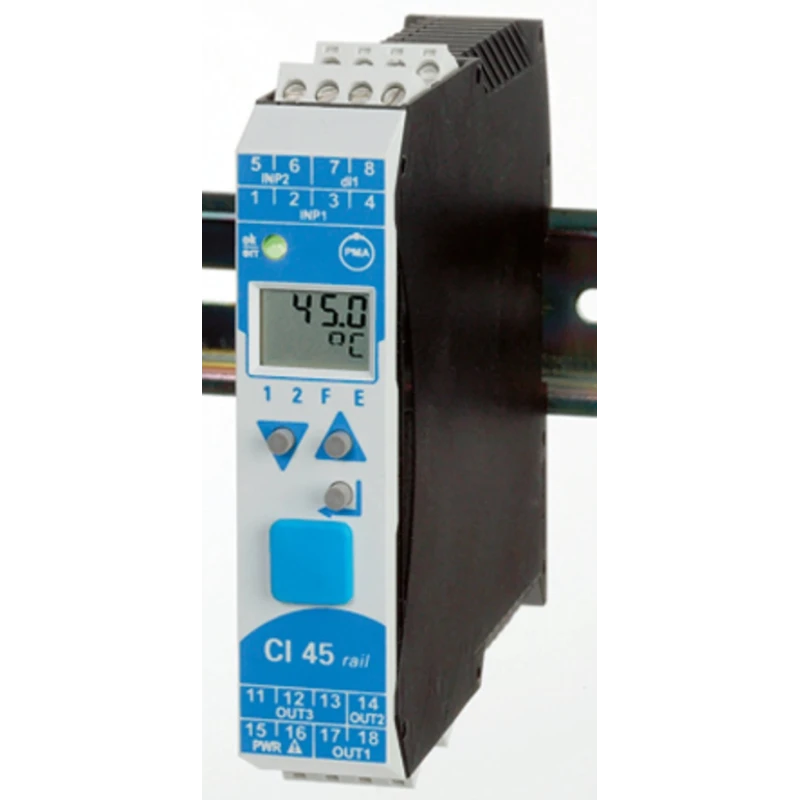

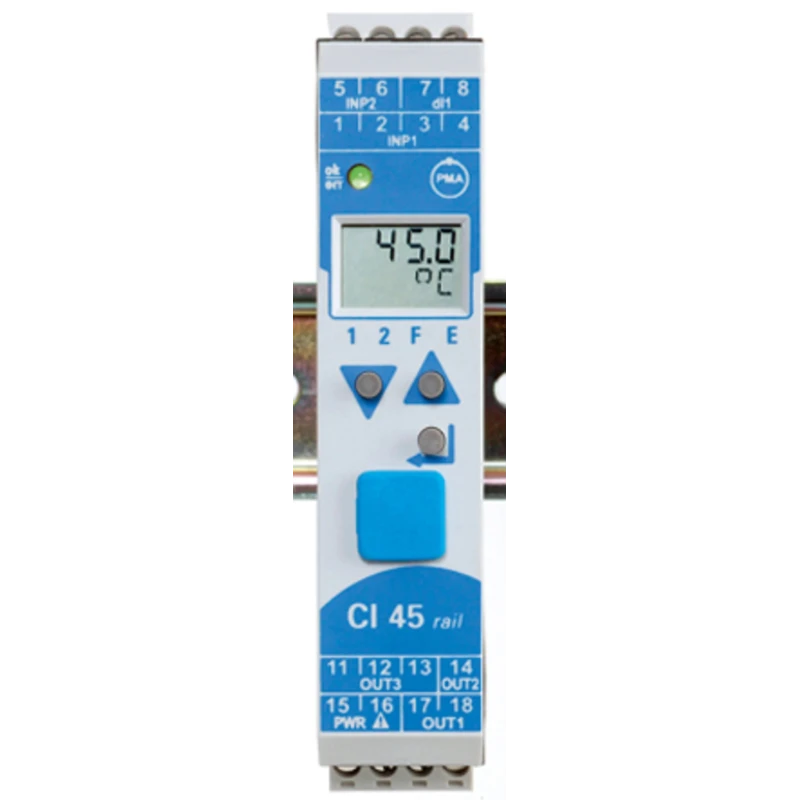

P.M.A CI45 Series Signal Conditioner Universal Input Universal Output 260V AC 90V AC Supply CI45

P.M.A CI45 Series Signal Conditioner model CI45 is a highly versatile universal input and output signal conditioning device. Operating with supply voltages of 260V AC and 90V AC, it is engineered for precise and cost-effective signal detection and processing in demanding industrial, laboratory, and automation environments.

The unit supports a broad input range from frequency (0 to 100 kHz), resistance (0 to 4500 Ω), voltage (-10 to 30 V), bit signals (15 to 31 bit), and temperature (-200 to 2315 °C). Corresponding universal output ranges include 14-bit resolution voltage (0 to 10 V), frequency (0 to 1000 Hz), and current (0 to 20 mA).

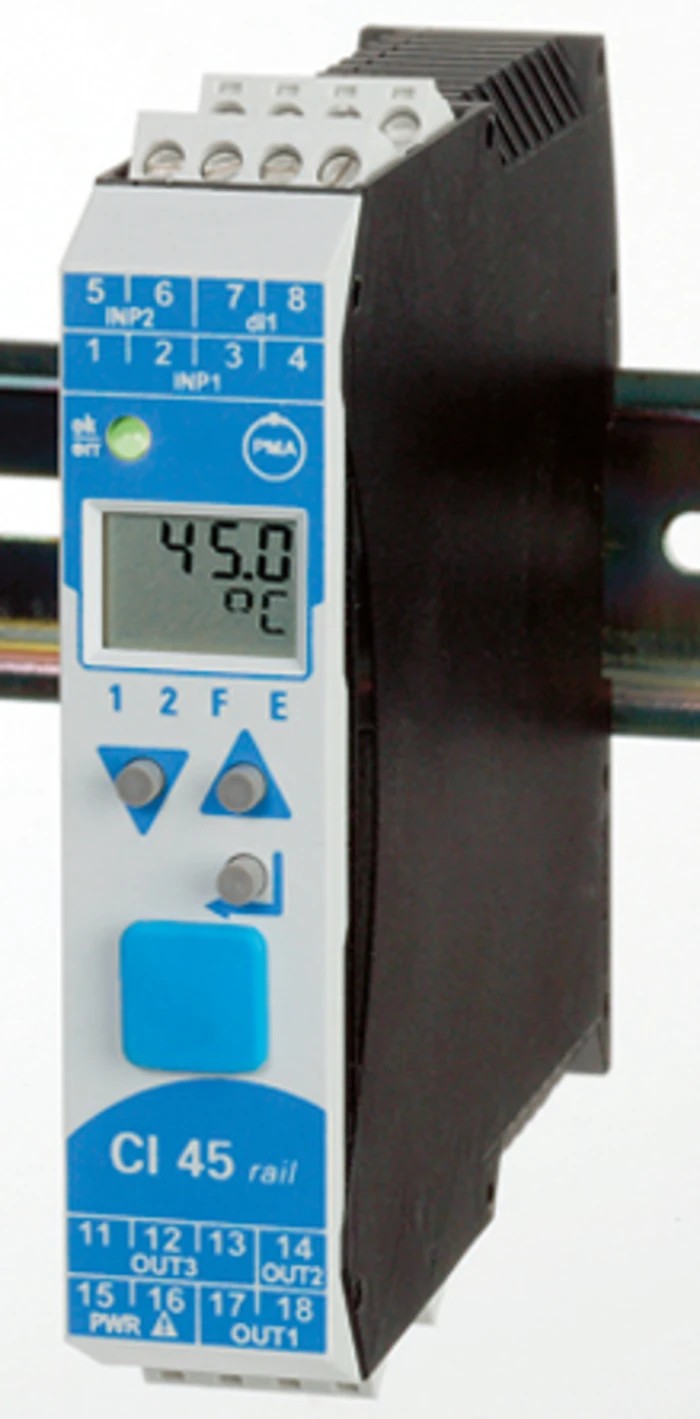

The signal conditioner includes galvanic isolation between inputs and outputs and from power supply and communication interfaces, ensuring safe, interference-free operation. Its compact DIN rail mount form factor simplifies integration into existing control panels.

Featured operating temperature range of -20°C to 60°C and IP20 ingress protection make it well-suited for industrial environments requiring durable, reliable signal conditioning components. The device complies with international standards such as EN 61326-1 for electromagnetic compatibility and EN 61010-1 for electrical safety, with UL/cUL certification applied for.

This series offers optional flexibility by supporting additional relays, second universal inputs, counters, frequency inputs, and frequency outputs. Advanced features like customer-specific linearization, measurement value correction, and min/max indicators enhance its utility in complex automation and monitoring applications.

Typical uses include temperature measurement and transmission, signal conversion, and conditioning in automation, HVAC control systems, manufacturing processes, and water treatment plants.

Choose the P.M.A CI45 for accurate performance, industry-standard compliance, and robust industrial signal conditioning solutions. Supports universal input signal types including frequency, resistance, voltage, bit, and temperature ranges.

Provides universal output signals including voltage, frequency, and current options. Equipped with DIN rail mounting for easy installation. Operates reliably within a temperature range of -20°C to 60°C. Features IP20 protection rating ensuring suitability for industrial environments.

Includes galvanic isolation between inputs, outputs, supply voltage, and communication interfaces. Complies with electromagnetic compatibility standards EN 61326-1 and safety standards EN 61010-1. Compact design with high resolution and fast cycle times for accurate and timely signal processing.

Offers optional additional relays, frequency inputs, and customer-specific linearization capacities. Designed for universal signal conditioning and temperature transmitter applications in industrial automation. Explore EnvMart’s comprehensive range of Signal Conditioners and temperature transmitters for your industrial automation needs.
