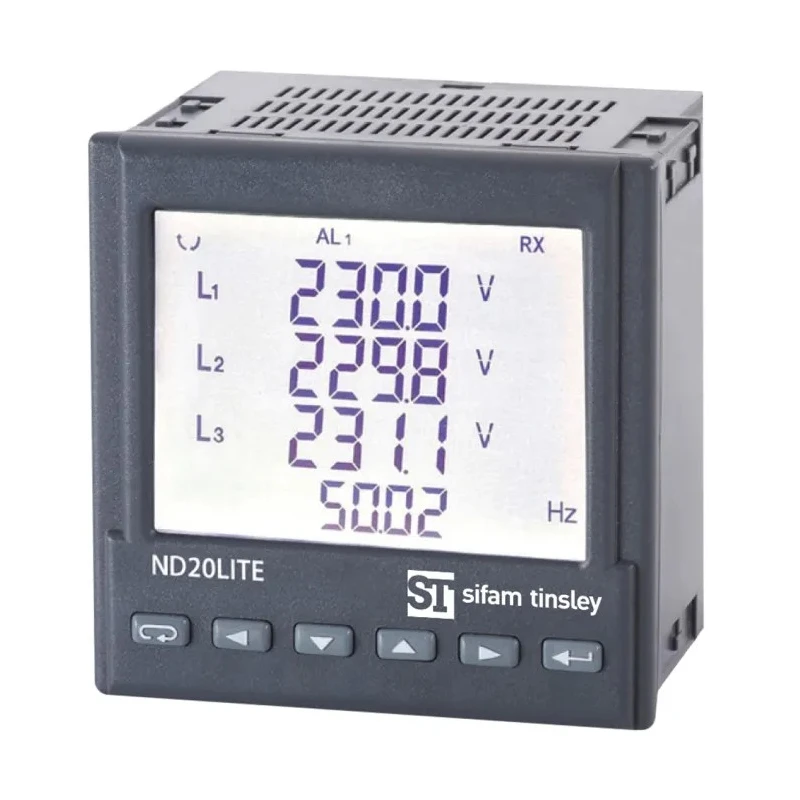

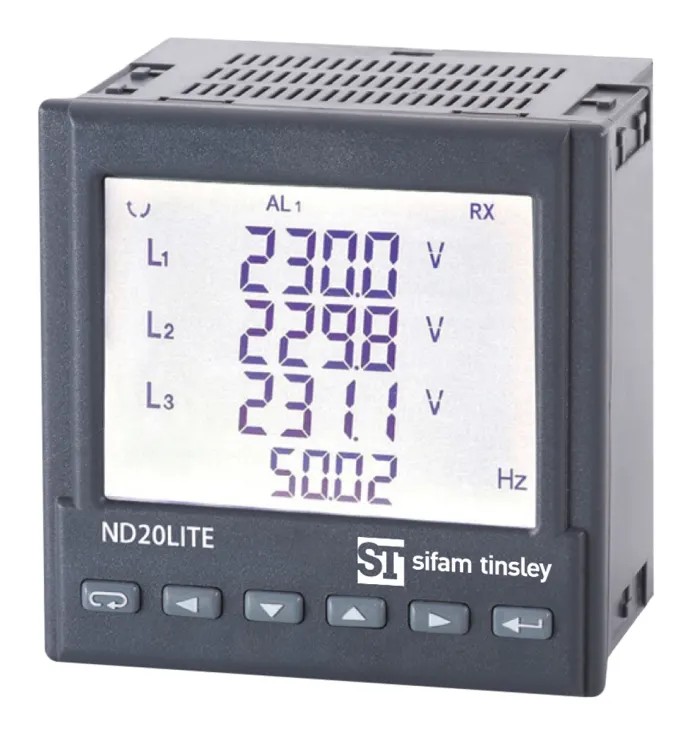

Sifam Tinsley 1 Phase Electrical LCD Energy Meter ND20LITE-22100U0

The Sifam Tinsley ND20LITE-22100U0 is a state-of-the-art 1 Phase Electrical LCD Energy Meter designed for accurate power measurement in single-phase power networks as well as 3-phase 3, 4-wire networks under balanced and unbalanced system conditions. It features a large backlit 3.5-inch LCD display with 16 digits and 85 mm digit height, offering excellent visibility in industrial settings.

With high accuracy class 0.2% on critical measurements, the ND20LITE meter supports programmable voltage transformer (VT) and current transformer (CT) ratios to accommodate medium and low voltage applications. The device's versatility allows it to be user-programmed for various system types to match installation requirements.

The device includes advanced functionalities such as profiling power consumption over 15, 30, and 60-minute intervals, configurable alarm and pulse outputs for energy consumption monitoring, and a RS485 Modbus interface, facilitating seamless communication with control and monitoring systems. Its slim depth of 7.7 mm and compact 92.5x92.5 mm panel cutout profile make it ideal for modern electrical panels.

Rated for operation within a temperature range of -25°C to 55°C and compliant with CE and EN 61000-6-2, EN 61000-6-4, and EN 61010-1 standards, the meter ensures reliability and safety in diverse industrial environments. The product is manufactured in Poland, guaranteeing adherence to stringent European manufacturing standards.

Large backlit 3.5-inch LCD display with 16 digits. High accuracy class 0.2% on selected measurements. Programmable VT and CT ratios for flexible application. RS485 Modbus interface for system integration. Configurable alarm and pulse outputs for energy monitoring.

Profile logging of 15, 30, and 60-minute intervals. Compact panel mounting with 92.5 mm cutout dimensions. Wide operating temperature range from -25°C to 55°C. Complies with CE and relevant EN safety and electromagnetic standards.

Manufactured in Poland ensuring quality and reliability.

This energy meter is suitable for use in industrial facilities, commercial buildings, HVAC systems, manufacturing plants, and electrical installations where precise energy monitoring and control are critical. Its features support optimization of power usage, enhance energy management, and improve system diagnostics.
