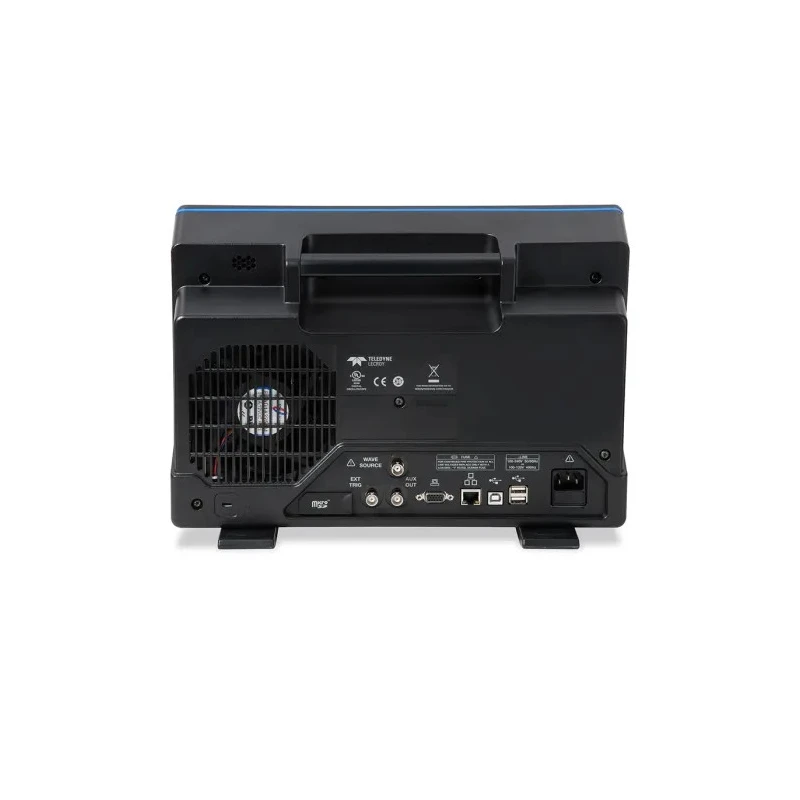

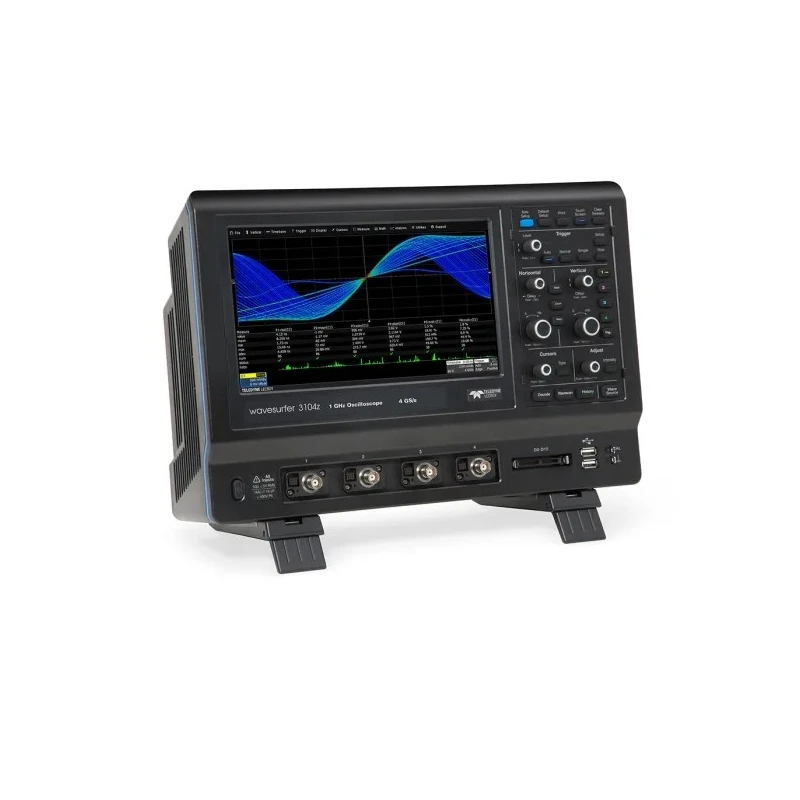

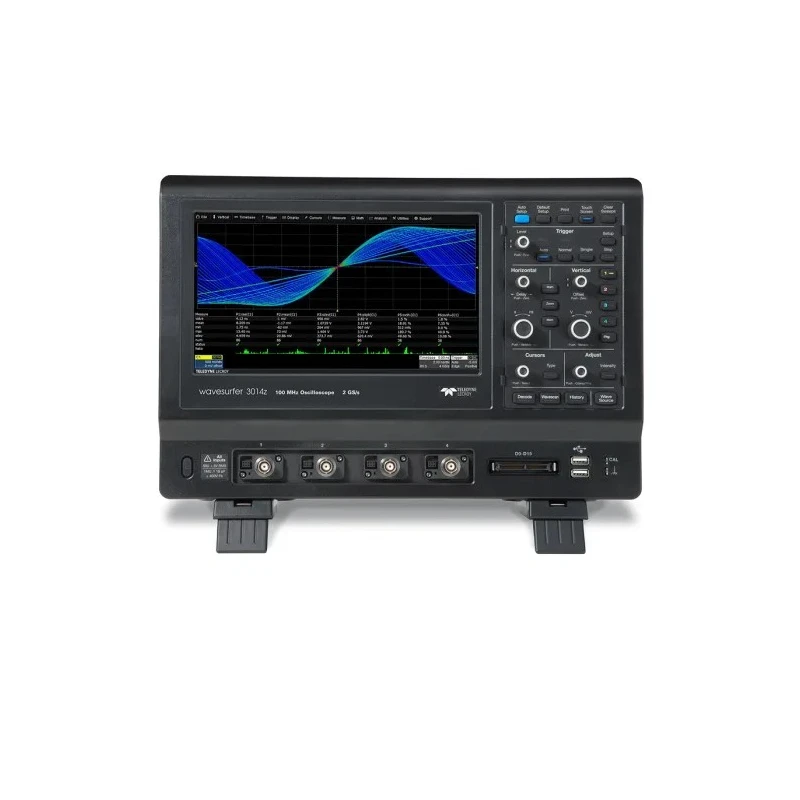

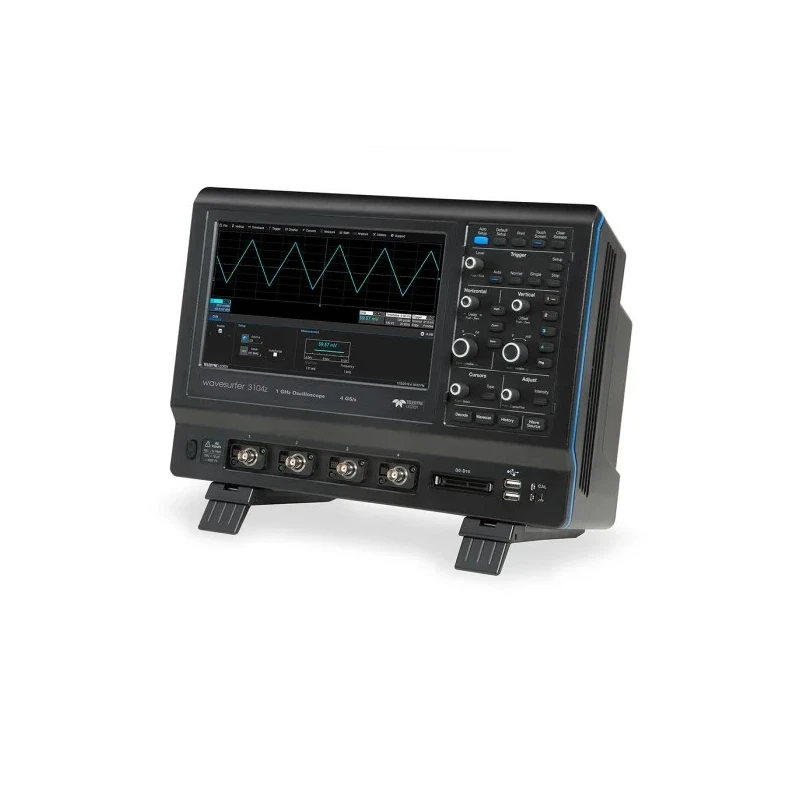

Teledyne LeCroy 500 MHz Bench Oscilloscope 4-Channel WaveSurfer 3054 Promo2
Specifications
| Country of Origin | China |
|---|---|
| Display | screen |
| Brand | Teledyne LeCroy |
| Height | 270mm |
| Length | 380mm |
| Model | WaveSurfer 3054 Promo2 |
| Width | 125mm |
| Bandwidth | 500MHz |
| Sampling rate | up to 4GS/s |
| Series | WaveSurfer 3000z |
| Number Of Channels | 4 |
| Vertical Resolution | 11 bit |
| Rise Time | 800ps |
| Interface Type | CAN, LIN, RS232, SPI, UART, USB |
| Oscilloscope Type | Bench |
| Digital Channels | 16 |
| Minimum Vertical Sensitivity | 1mV/div |
| Carry Case | 830-3203 |
| Minimum Time Base | 1ns/div |
| Maximum Vertical Sensitivity | 10V/div |
| Maximum Time Base | 100s/div |
| Function Generator | 830-3206 |
| MSO option | 830-3212 |
| Teledyne LeCroy T3DSO3000 Series, 500 MHz Bench Oscilloscope 16-ChannelBrand | Teledyne LeCroy |
| Teledyne LeCroy 3054 WaveSurfer 3000 Series, 500MHz Bench OscilloscopeBrand | LeCroy |
Key Features
- The oscilloscope offers a 500 MHz bandwidth to capture high-frequency signals accurately.
- Equipped with 4 input channels, allowing comprehensive multi-signal analysis simultaneously.
- A large 10.1-inch LCD touch screen offers intuitive operation and clear signal visualization.
- Advanced features include history mode, segmented memory acquisition, and anomaly detection.
- Supports protocol analysis and serial triggers for CAN, LIN, RS232, SPI, UART, and USB communication interfaces.
- The device includes embedded auto and function generator options as standard, enhancing test capabilities.
- Sampling rate of up to 4 GS/s ensures precise temporal resolution during measurements.
- Compact bench design with dimensions of 380 mm length, 270 mm height, and 125 mm width for convenient workspace integration.
Product Description
Teledyne LeCroy WaveSurfer 3054 Promo2 bench oscilloscope features a 500 MHz bandwidth with 4 input channels, providing precise and versatile digital signal analysis for industrial, laboratory, and electronics testing applications.
This digital oscilloscope incorporates a large 10.1-inch capacitive touch screen that ensures ease of use, combined with a rich interface including protocol analysis for CAN, LIN, RS232, SPI, UART, and USB signals. It is engineered to support engineers and technicians in troubleshooting, designing, and verifying complex electronic systems.
The WaveSurfer 3000z Series offers a sampling rate of up to 4 GS/s and features advanced capabilities such as segmented memory acquisition, history mode for waveform review, super-fast update rates, and anomaly detection to enhance measurement confidence.
Additional functionality includes embedded auto and function generator options, making this oscilloscope a versatile tool for mixed-signal and video designing, embedded electronics troubleshooting, automotive electronics, and electronics education environments.
Designed with a compact form factor, measuring 380 mm in length, 270 mm in height, and 125 mm in width, it fits neatly on benches and workstations while delivering professional-grade performance.

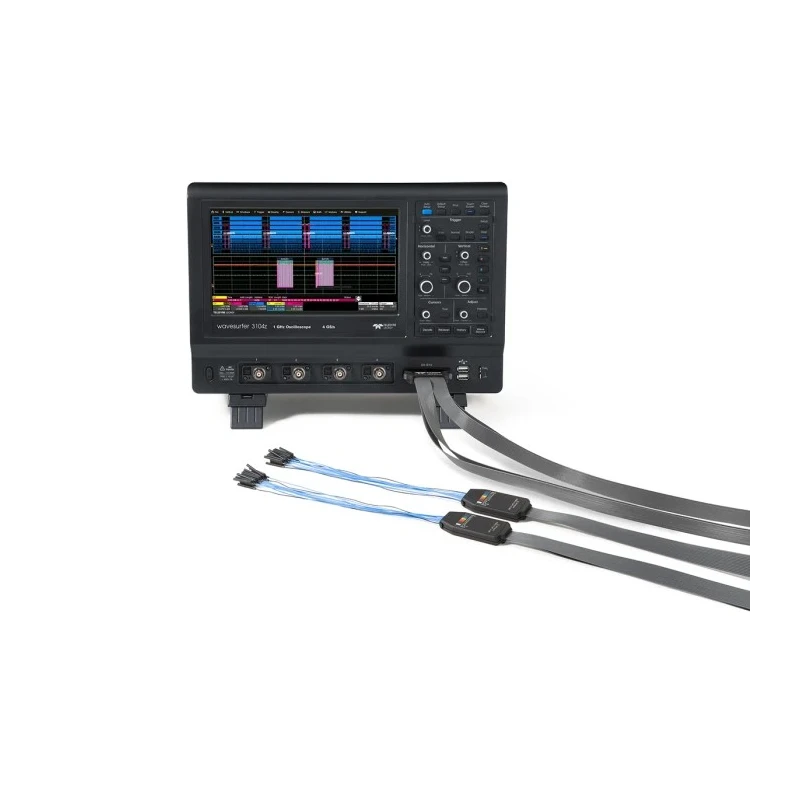

The oscilloscope covers a bandwidth range of 500 MHz supporting complex signal capture. It includes 16 digital MSO channels via an optional module, extending measurement capabilities. Advanced triggering and protocol decoding support multiple communication standards.
Future-proof with upgradable bandwidth and software/hardware options in the field. Extensive accessories available, including software packages, carry case, MSO options, and probes.
The WaveSurfer 3054 Promo2 oscilloscope is essential equipment for precise electrical signal measurement and analysis in industrial, manufacturing, electronics design, test & measurement, automotive, and educational sectors.
Explore EnvMart's wide assortment of professional Oscilloscopes and test instruments for all your measurement needs.
