Wachendorff Incremental Encoder 30V DC, 100 PPR, HTL Signal, Solid 10 mm Shaft, IP65/IP67, Clamping WDG58B-100-ABN-G24-K3

Free Delivery in India | Lowest Global Shipping Charges

Wachendorff Incremental Encoder 30V DC, 100 PPR, HTL Signal, Solid 10 mm Shaft, IP65/IP67, Clamping WDG58B-100-ABN-G24-K3

Name: Wachendorff Incremental Encoder 30V DC, 100 PPR, HTL Signal, Solid 10 mm Shaft, IP65/IP67, Clamping WDG58B-100-ABN-G24-K3
Brand: Wachendorff
SKU: 182501
Price: 370.92 USD
Availability: InStock



Category Incremental Encoder Brand Wachendorff Condition New

Specifications

Country of Origin	United States
Brand	Wachendorff
Model	WDG58B-100-ABN-G24-K3
IP Rating	IP65, IP67
Mount Type	Clamping Flange Mount
Standards	DIN VDE 0160
Series	WDGI 58B
Overall Width	83mm
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-20°C
Shaft Diameter	10mm
Overall height	83mm
Switching Frequency	200kHz
Shaft Type	Solid
Terminal type	Cable and Connector
Pulses per Revolution	100ppr
Maximum Supply Voltage	30V dc
Encoder Technology	Incremental
Maximum Revolutions	8000rpm
Output Signal Type	HTL
High protection class according to DIN 40 050	IP65 (shaft), IP67 (cover)

Key Features

Designed for precise rotary position and speed measurements.
Features a solid 10 mm diameter shaft suitable for industrial applications.
Robust aluminium housing with IP65 and IP67 protection ratings ensures durability.
Mounts via clamping flange for secure attachment.
Operating temperature range from -20°C to 80°C for varied environments.
Maximum rated rotational speed up to 8000 rpm.
Includes cable and connector terminal type for signal output.
Switching frequency capability of 200 kHz for high-resolution data signals.

Product Description

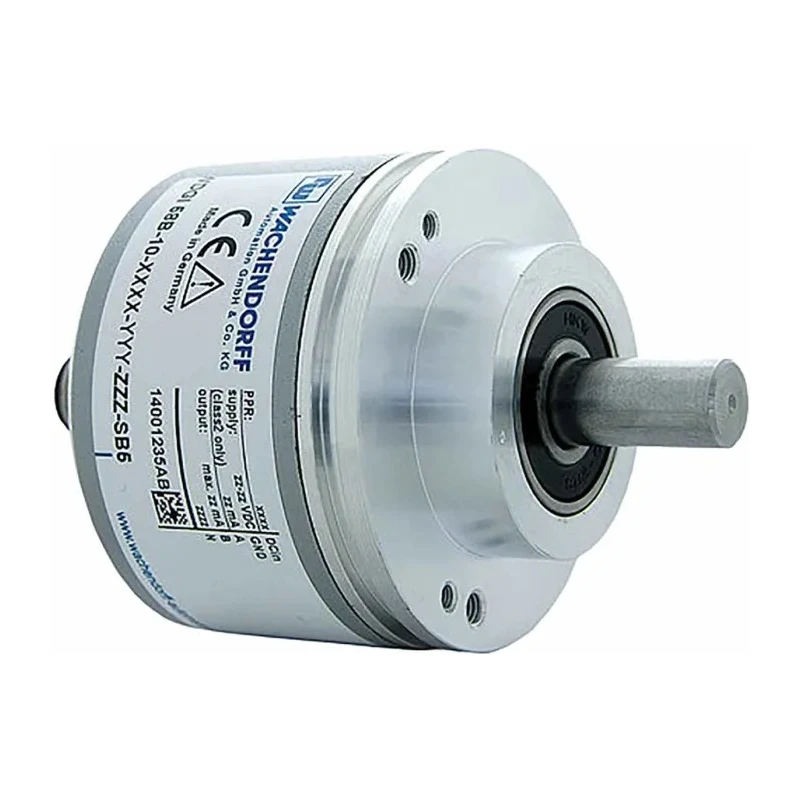

Wachendorff WDG58B-100-ABN-G24-K3 is an industrial-grade incremental encoder designed for accurate recording of RPM, position, distance, and speed in industrial automation and motion control systems. It operates at 30V DC power supply and provides 100 pulses per revolution with HTL signal output, making it suitable for precision motion sensing.

This encoder features a solid shaft with a diameter of 10 mm and a robust aluminium housing offering high mechanical strength and resistance to harsh industrial conditions. Its design includes a clamping flange mount ensuring firm and reliable installation in various machinery.

The device is engineered to withstand environmental challenges with protection classes IP65 for the shaft and IP67 for the cover, conforming to DIN 40 050 standards. It operates reliably within a wide temperature range of -20°C to 80°C, supporting demanding operational environments.

The maximum rotational speed is rated at 8000 rpm with a switching frequency of 200 kHz, enabling precise and high-speed signal processing. The encoder includes an early warning output feature to provide advance alerts for maintenance or operational anomalies, increasing uptime and system safety.

Applications span a wide range of industries including manufacturing automation, robotics, HVAC systems, and laboratory equipment requiring precise incremental position feedback. Designed for mounting with a clamping flange providing secure installation.

Highly precise chip analysis technology enhances signal quality. High protection class IP65 (shaft) and IP67 (cover) ensures durability against dust and water ingress. Suitable for industrial environments with high axial and radial loads resistance.

Standards compliance with DIN VDE 0160 certifies product reliability and safety. Explore more Incremental Encoders in the Sensors category on EnvMart to find tailored solutions for your industrial automation needs.
