Teledyne LeCroy 350 MHz 4-Channel Bench Oscilloscope HDO4000A

Free Delivery in India | Lowest Global Shipping Charges

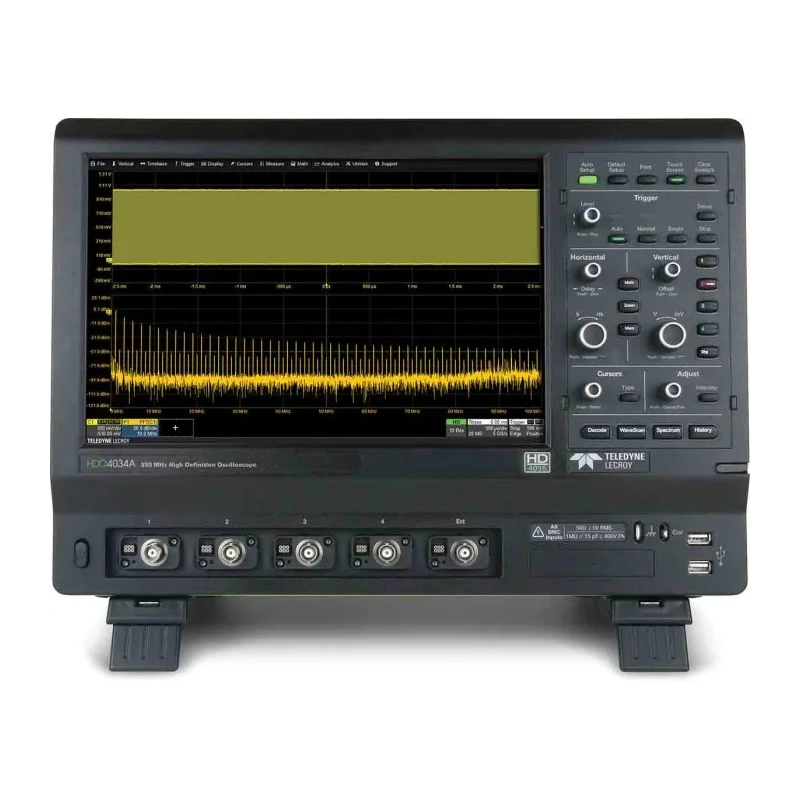

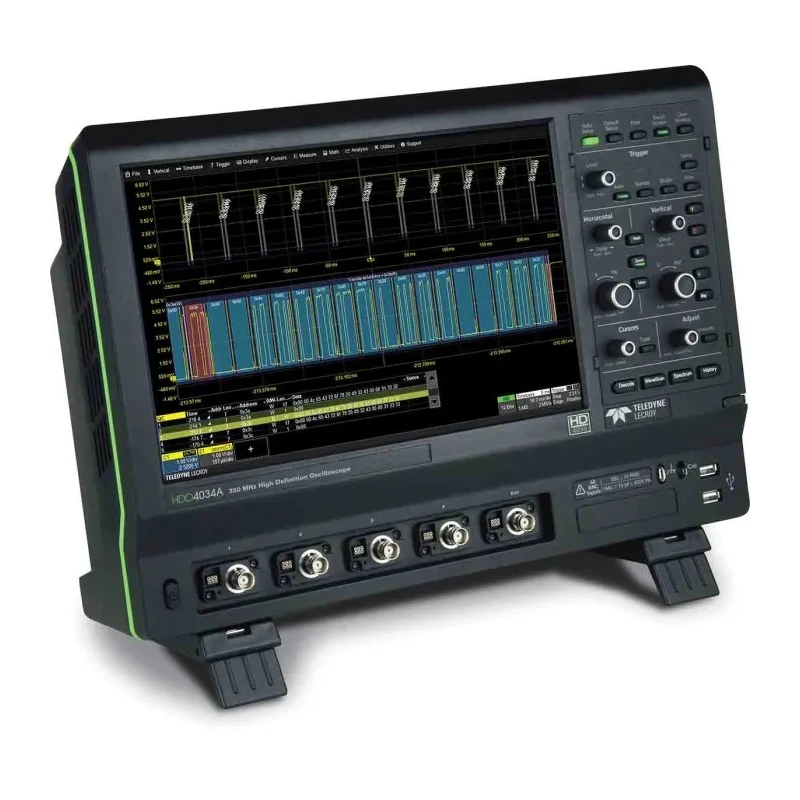

Teledyne LeCroy 350 MHz 4-Channel Bench Oscilloscope HDO4000A

Name: Teledyne LeCroy 350 MHz 4-Channel Bench Oscilloscope HDO4000A
Brand: Teledyne LeCroy
SKU: 145608
Price: 33261.93 USD
Availability: InStock



Category Oscilloscope Brand Teledyne LeCroy Condition New

Specifications

Country of Origin	United States
Display	touch screen
Brand	Teledyne LeCroy
Height	291.7mm
Model	HDO4000A
Width	339.4mm
Bandwidth	350MHz
Series	HDO4000A
Interfaces	LAN and USB ports for connectivity
Number Of Channels	4
Vertical Resolution	12 bit, 15 bit
Rise Time	1ns
Interface Type	CAN, IIC, LIN, RS232, SPI, UART, USB
Oscilloscope Type	Bench
Minimum Vertical Sensitivity	1mV/div
Minimum Time Base	200ps/div
Maximum Vertical Sensitivity	10V/div

Key Features

Features a compact and space-efficient design with a 12.1-inch multi-touch color LCD display.
Supports multiple interface types including CAN, IIC, LIN, RS232, SPI, UART, and USB for versatile connectivity.
Includes advanced digital debug tools and Wavescan Advanced Search for efficient troubleshooting.
Equipped with long memory capabilities up to 50 million points for detailed waveform capture.
Offers extensive signal triggering and advanced math functions with histogram and statistics.
Suitable for applications in power electronics, digital power management, and automotive electronics development.
Features Lab Notebook documentation and report generator tools for thorough analysis reporting.
Includes LAN and USB ports for easy integration with test systems and data transfer.

Product Description

Teledyne LeCroy HDO4034A 4-Channel Bench Oscilloscope from the HDO4000A Series offers 350 MHz bandwidth and 12-bit ADC resolution, making it ideal for detailed electronic signal analysis and measurement.

This digital storage oscilloscope is designed with HD4096 technology, allowing waveform capture with 16 times greater resolution than conventional oscilloscopes. Its compact form factor, measuring only 5 inches in depth, fits conveniently in laboratory and test station environments.

The oscilloscope includes a large 12.1-inch high-definition multi-touch color screen supporting intuitive user interaction through the MAUI user interface. It supports a wide range of serial interfaces including CAN, IIC, LIN, RS232, SPI, UART, and USB to facilitate connection with various devices and communication protocols.

Key features include extensive signal triggering capabilities, advanced digital debugging tools, physics-based math functions, and a long memory depth of up to 50 million points for capturing long-duration signals without loss.

This instrument is well-suited for industrial, laboratory, and electronics design applications such as power electronics debugging, digital power management validation, power integrity analysis, automotive electronics troubleshooting, and embedded system development.

High-definition signal capture with 12-bit ADC resolution and 350 MHz bandwidth. Four analog input channels for multi-signal observation. Advanced waveform capture modes including sequence mode and history mode playback.

Supports Lab Notebook for detailed documentation and report generation. Comes with LAN and USB connectivity ports to integrate with automated test systems. Compact design optimized for bench space efficiency in laboratory or production settings.

Country of Origin: United States. Discover more high-precision measuring instruments and Oscilloscopes on EnvMart to support your industrial and research needs.
