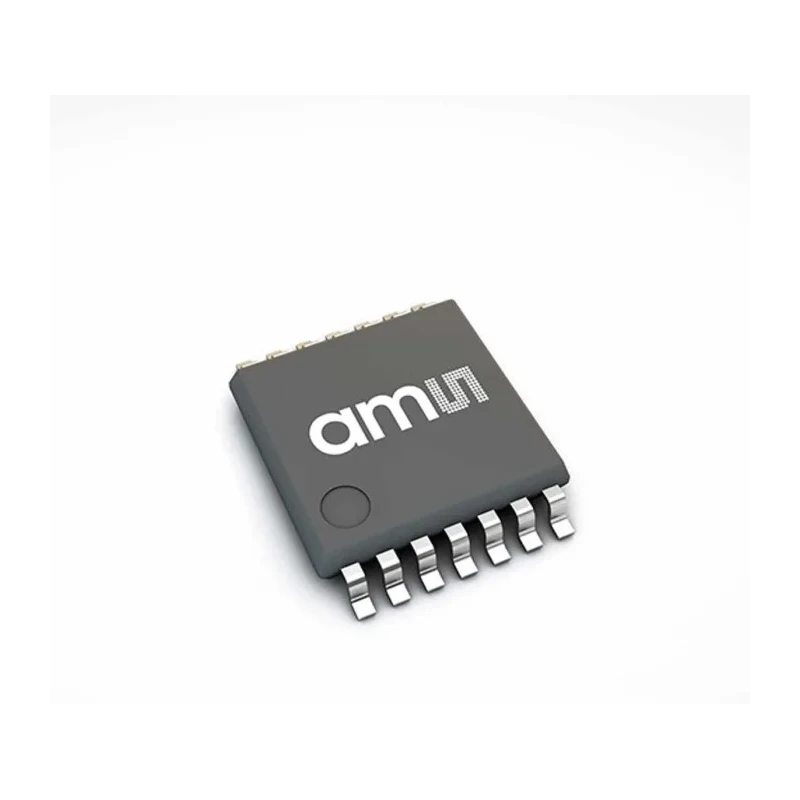

ams OSRAM 14 Bit On-Axis Magnetic Rotary Position Sensor 1 Axis, SPI, PWM, UVW, TSSOP 14-Pin AS5047P-ATSM

Free Delivery in India | Lowest Global Shipping Charges

ams OSRAM 14 Bit On-Axis Magnetic Rotary Position Sensor 1 Axis, SPI, PWM, UVW, TSSOP 14-Pin AS5047P-ATSM

Name: ams OSRAM 14 Bit On-Axis Magnetic Rotary Position Sensor 1 Axis, SPI, PWM, UVW, TSSOP 14-Pin AS5047P-ATSM
Brand: ams OSRAM
SKU: 163585
Price: 8.71 USD
Availability: InStock



Category Position Sensor Brand ams OSRAM Condition New

Specifications

Country of Origin	Austria
Brand	ams OSRAM
Response time	10ms
Height	1.2mm
Length	5mm
Model	AS5047P-ATSM
Technology	CMOS
Sensor Type	Hall Effect
Width	6.4mm
Mount Type	Surface
Series	AS5047P
Maximum Operating Temperature	125°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Number of axis	1
Interface Type	SPI, PWM, UVW
Standards/Approvals	AEC-Q100-004, IPC/JEDEC J-STD-020, AEC-Q100-002
Pin Count	14
Automotive Standard	AEC-Q100
Maximum Supply Voltage	7V
Minimum Supply Voltage	3V
Supply Current	15mA
Magnetic Type	Omnipolar

Key Features

Operates as a 1 axis magnetic rotary position sensor using Hall Effect technology.
Provides 14-bit absolute angle position data via SPI, PWM, UVW interfaces.
Suitable for high-speed operation up to 28,000 rpm with integrated dynamic angle error compensation.
Encapsulated in a TSSOP 14-pin package with a compact 5mm by 6.4mm footprint.
Designed to operate in a broad temperature range from -40°C to 125°C for automotive and industrial use.
Features low supply current of 15mA and conforms to automotive standards AEC-Q100.
Offers programmable ABI incremental movement signals for customizable resolution.
Robust against external stray magnetic fields ensuring reliable output accuracy.

Product Description

ams OSRAM AS5047P-ATSM is a high-resolution 14-bit on-axis magnetic rotary Position Sensor designed for precise 360-degree angle measurements using Hall Effect technology. It operates on a supply voltage range of 3V to 7V and comes in a compact TSSOP 14-pin package measuring 5mm length, 6.4mm width, and 1.2mm height. The sensor is intended for dynamic angle measurement at high speeds up to 28,000 rpm, suitable for a variety of industrial and automotive electronic applications.

This sensor features innovative integrated dynamic angle error compensation to minimize latency and suppress interference from homogeneous external magnetic fields. It interfaces with host microcontrollers via SPI, PWM, and UVW protocols, delivering 14-bit absolute angle data with programmable incremental ABI signals tailored for pulse counts ranging from 25 to 4096 pulses per revolution.

Engineered to meet automotive grade AEC-Q100 standards, the AS5047P-ATSM supports extended operation temperature from -40°C to 125°C, ensuring reliability in harsh environments. It offers a low supply current of 15mA, facilitating energy-efficient system designs in automotive, robotics, industrial automation, and other precise motion control systems.

The compact size and robust magnetic sensing capability make this sensor ideal for rotary encoders, motor feedback, shaft position sensing, and motion control in laboratory instruments, manufacturing equipment, and HVAC systems.

Operates with one axis using Hall Effect CMOS technology. Compact 14-pin TSSOP package suitable for surface mounting. High-speed dynamic measurement capability up to 28krpm. Supports SPI, PWM, and UVW interface protocols for versatile connectivity.

Integrated dynamic angle error compensation ensures minimal latency. Resistant to external stray magnetic field interference. Wide operating temperature range, compliant to automotive standards. Offers programmable ABI resolution increments for customized signal output.

This product is manufactured in Austria and suited for applications requiring precise angular position feedback such as industrial automation, robotics, automotive sensor systems, and embedded control units. Explore more sensors and electronic components to complement this device on EnvMart.
