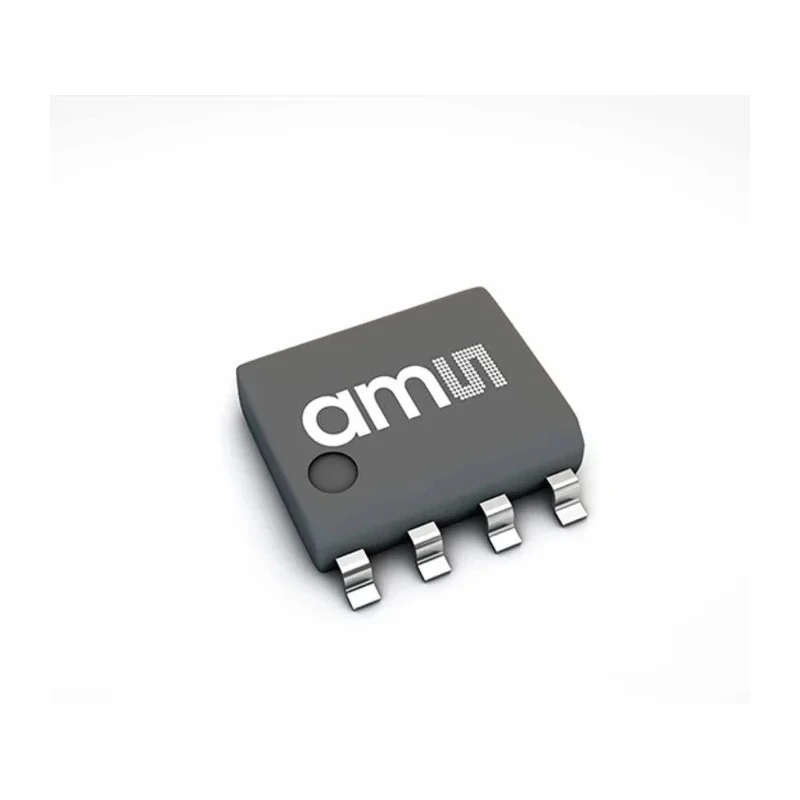

ams OSRAM AS5600L-ASOM Magnetic Position Sensor 5.5V, 4096 ppr, Analogue Signal AS5600L-ASOM

ams OSRAM AS5600L-ASOM is a high-resolution magnetic rotary Position Sensor designed for contactless potentiometer applications. It operates with a supply voltage of 5.5V and produces 4096 pulses per revolution (ppr) using magnetic encoder technology. This sensor supports an analogue output signal and communicates via an I2C interface, allowing for easy integration and programming.

The device features compact dimensions measuring 2.63mm in height, 2.07mm in depth, and 0.6mm in width, making it suitable for space-constrained designs. It operates reliably within a wide temperature range from -40°C to 125°C and supports a switching frequency of 920Hz for responsive real-time measurement.

Equipped with industry-standard IPC/JEDEC and AEC-Q100-002E certifications, the AS5600L-ASOM sensor ensures robust performance in industrial environments. Its contactless design eliminates wear and tear, providing long-term durability even in the presence of homogenous external magnetic stray fields.

The sensor outputs a range from 0 to 360 degrees by default, with programmable zero and maximum angle settings to define smaller output ranges as needed. A dedicated DIR input pin enables polarity selection for clockwise or counterclockwise rotation, enhancing flexibility in various applications.

This model incorporates a smart low power mode to reduce energy consumption automatically. It is particularly well-suited for industrial automation, motion control systems, embedded electronics, robotics, and precise position monitoring in manufacturing and instrumentation.

The sensor uses magnetic encoder technology for precise position sensing. It outputs an analogue signal type and interfaces via I2C. Operating temperature ranges from -40°C to 125°C suitable for harsh environments. Compact size with dimensions 2.63mm height, 2.07mm depth, and 0.6mm width.

Supports a switching frequency of 920Hz for rapid response. RoHS compliant and meets IPC/JEDEC and AEC-Q100-002E standards. Designed for contactless rotary position measurement with high resolution 12-bit output. Includes a programmable zero and maximum angle for flexible position range setups.

Energy efficient with smart low power mode and direction polarity selection via DIR pin. Ideal for industrial, automation, motion control, and embedded system applications. Explore more sensors and position sensing solutions from ams OSRAM and related brands on EnvMart for your industrial and automation needs.
