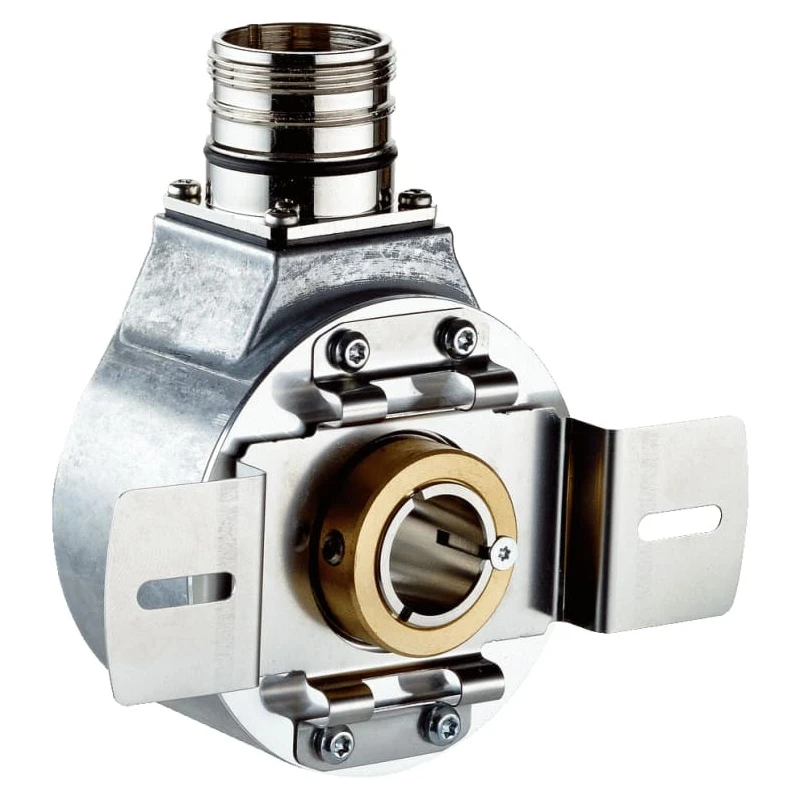

SICK DBS60E-TJFA01000 Incremental Encoder, DBS60 Core Series, 30V, 1000 ppr, HTL/TTL, Hollow Shaft, 15.87 mm Shaft

SICK DBS60E-TJFA01000 Incremental Encoder from the DBS60 Core Series combines robust industrial design with high-precision motion control capabilities. This rotary encoder features a hollow shaft mount for easy installation, supporting shaft diameters up to 15.87 mm. It delivers 1000 pulses per revolution, ensuring accurate position and speed measurement in a wide range of applications.

Operating at a maximum supply voltage of 30V, the encoder supports both HTL and TTL signal outputs, allowing flexible integration with modern control systems. The plug-in terminal type makes installation straightforward, while the IP65 enclosure rating protects the device against dust and water ingress for consistent performance in demanding environments.

High-resolution operation with 1000 ppr for detailed position monitoring. Compact housing with dimensions of 58 mm height, 58 mm width, and 41.8 mm depth. Maximum operating speed up to 9000 rpm, suitable for dynamic industrial processes.

Wide switching frequency range up to 300 kHz, adapting to fast-paced automation tasks. Built to meet EN 61000-6-2 and EN 61000-6-3 standards for electromagnetic compatibility. Reliable operation in extreme temperatures, withstanding -30°C to 100°C.

Hollow shaft mount facilitates retrofitting and new installations in manufacturing setups. Ideal for position, speed, and distance measuring in asynchronous motors, elevators, packaging machinery, and logistics automation.

Designed for industrial environments, the DBS60E-TJFA01000 offers diverse installation options, connection flexibility, and high accuracy. Its rugged construction, insulated hollow shaft, and large bearing distance ensure long service life and resistance to shaft currents and high temperatures.

Common applications include conveyor speed measurement, PCB height monitoring, position determination on transfer systems, and acceleration/deceleration control in elevators. The encoder’s modular interface design reduces storage costs and simplifies maintenance while supporting both standard and universal interfaces.

With its proven reliability, robust enclosure, and high performance, the SICK DBS60 Core Series incremental encoder is a trusted choice for industrial motion control, factory, and logistics automation. Explore more Rotary Encoders and automation components in the EnvMart catalog for enhanced precision and operational efficiency.
