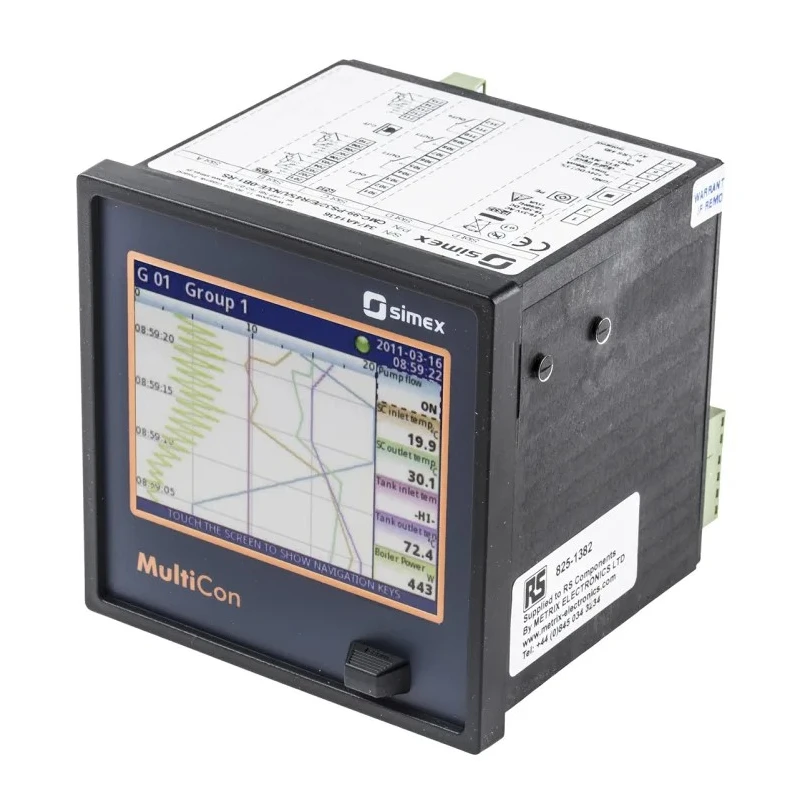

Simex 4-Channel Multichannel Controller Chart Recorder RTD, Thermocouple 100x96x96 mm Poland SX-CMC99-04F0

Simex SX-CMC99-04F0 is a 4-Channel Multichannel Controller Chart Recorder designed for precise measurement and control of RTD and Thermocouple signals. Featuring a compact footprint of 96 x 96 x 100 mm and manufactured in Poland, this device suits industrial, HVAC, manufacturing, laboratory, and process control applications.

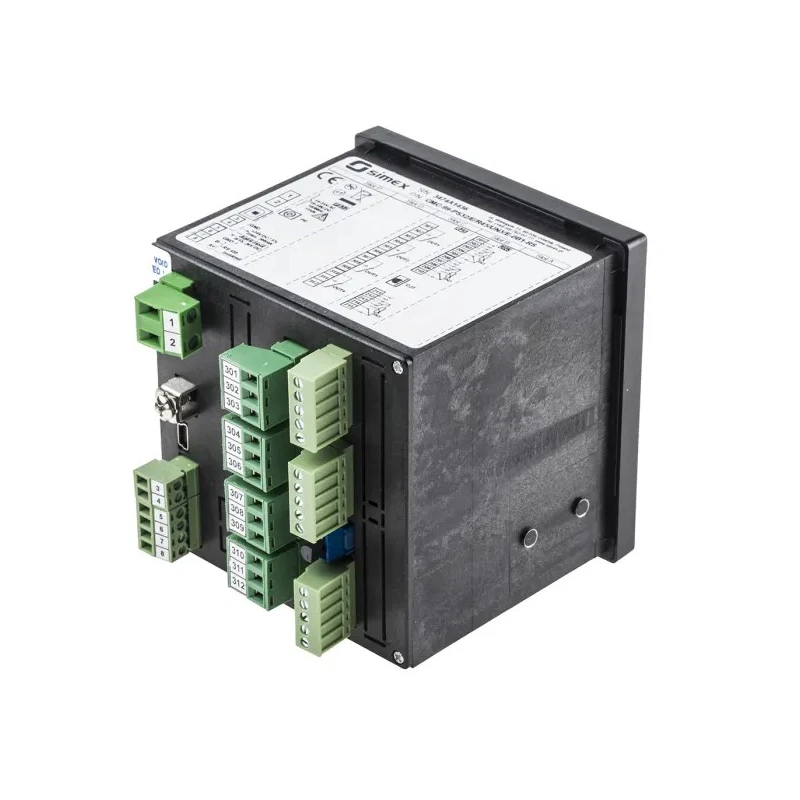

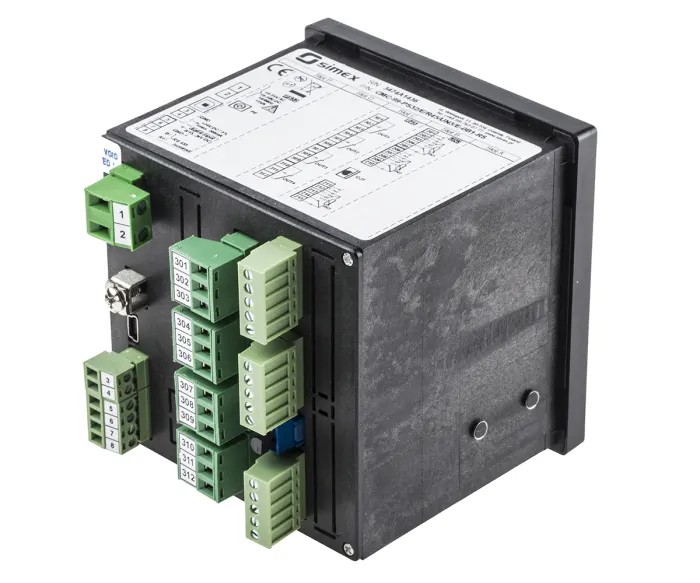

The instrument includes 3 universal analogue inputs capable of measuring current, voltage, RTD, thermocouple, or resistance with full isolation for safety. It provides one digital input and four relay outputs rated at 5A/250V SPDT, enabling robust control capabilities.

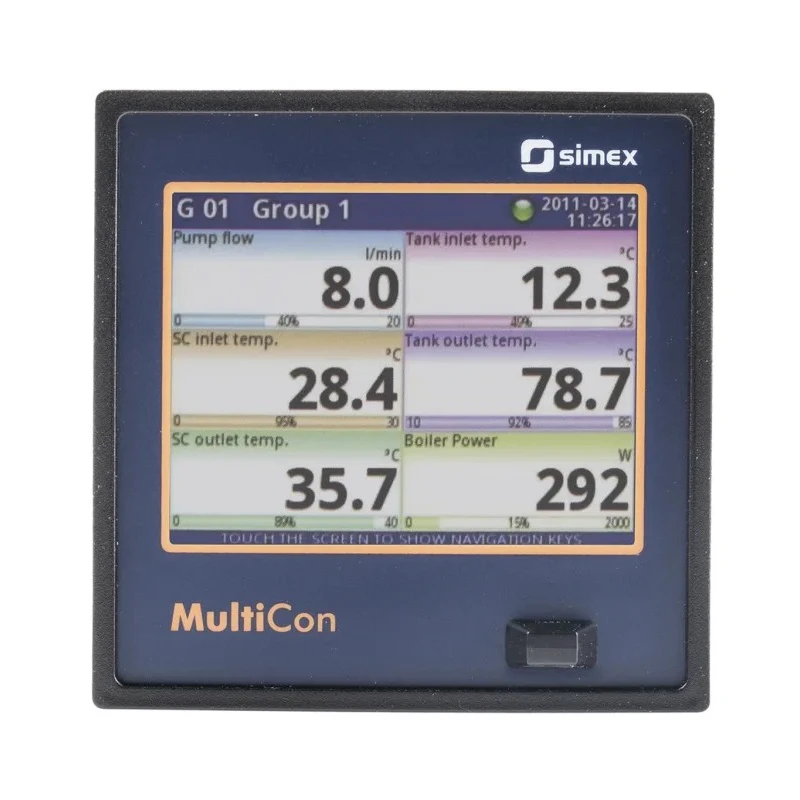

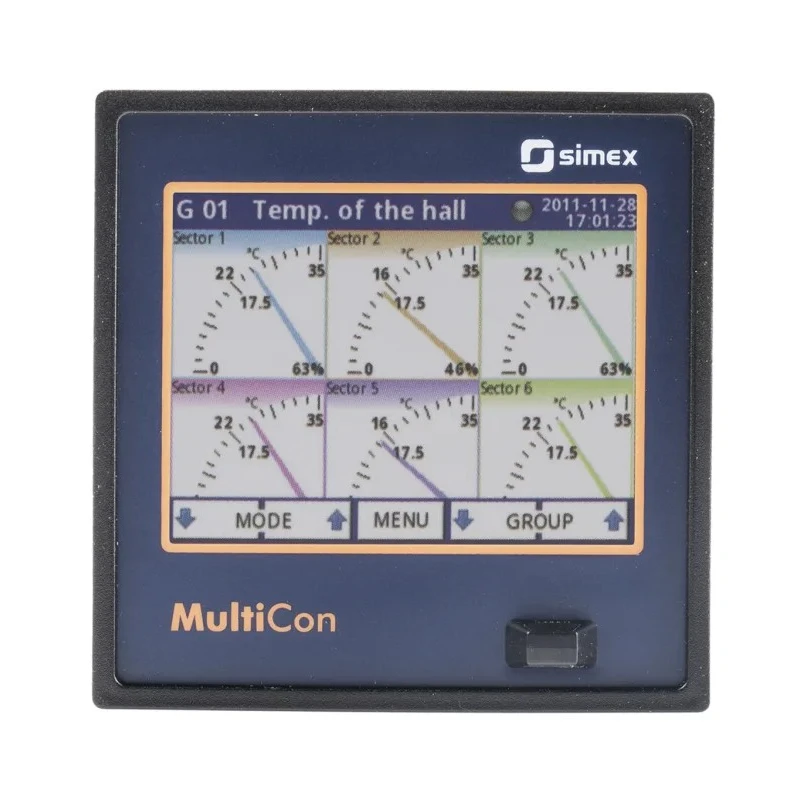

The 3.5 inch LCD graphic touchscreen display supports 16-bit color with a resolution of 320 x 240 pixels, facilitating user-friendly configuration and clear data visualization. Operated on stable Linux firmware, it integrates advanced control functions such as PID, ON/OFF, time profiles, and data logging with setpoints and excitation states.

Communication options include RS-485 with Modbus RTU protocol and a USB Host port for keyboard, mouse connection, and data transfer. The device supports data recording speeds from 0.1 seconds up to 24 hours with a resolution of 0.1 seconds and has an internal memory capacity of 1.5 GB.

Operating temperature range is 0°C to +50°C, with storage temperatures from -10°C to +70°C. The front USB version of the unit provides IP40 protection. Installation requires a panel cut-out of 90.5 x 90.5 mm and allows for a panel thickness up to 5 mm, with an installation depth of 102 mm.

This chart recorder's compact size, versatile inputs, advanced control, and data acquisition features make it ideal for industrial manufacturing process monitoring, HVAC system controls, and laboratory data logging requirements.

Equipped with 3 universal analogue inputs and 1 digital input, fully isolated for safety. Provides 4 relay outputs rated 5A/250V SPDT for effective control. Features a 3.5 inch graphic TFT touchscreen with 16-bit color and 320 x 240 resolution.

Supports RS-485 (Modbus RTU) and USB Host for communication and data transfer. Internal memory of 1.5 GB enables extensive data recording and logging. Operates reliably within temperature range 0°C to +50°C with storage up to 70°C.

Compact casing dimensions of 96 x 96 x 100 mm with IP40 protection on front USB version. Panel installation requires a cut-out of 90.5 x 90.5 mm and max thickness of 5 mm. Runs on stable Linux firmware offering advanced control functions including PID and ON/OFF modes.
