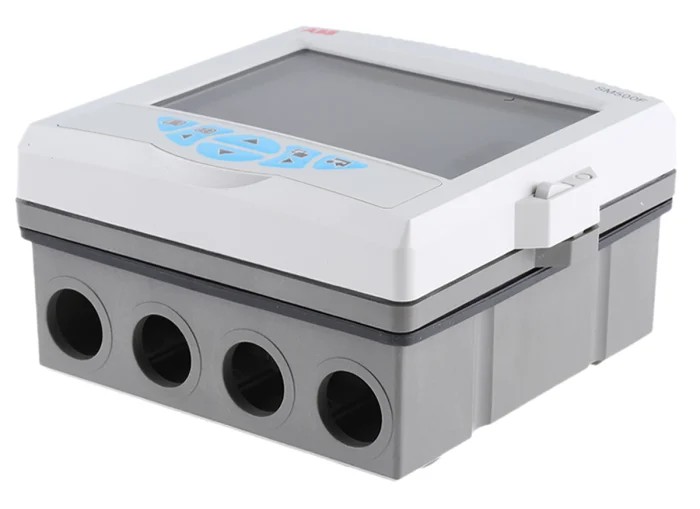

ABB 4-Channel Videographic Chart Recorder SM503FCB with Current, Resistance, Temperature, Voltage Measurement

Free Delivery in India | Lowest Global Shipping Charges

ABB 4-Channel Videographic Chart Recorder SM503FCB with Current, Resistance, Temperature, Voltage Measurement



Category Chart Recorders Brand ABB Condition New

Specifications

Country of Origin	India
Resolution	16 bit
Accuracy	0.2 %, 0.1 %
Brand	ABB
Height	144mm
Length	144mm
Model	SM503FCB
Gross Weight	1kg
Width	79mm
Interfaces	Ethernet connectivity (742-6828 and 742-6822) only
Number Of Channels	4
Measurement Parameters	Current, Resistance, Temperature, Voltage
Chart Type	Videographic

Key Features

The recorder supports four measurement channels for comprehensive data capture.
Offers an accuracy of 0.1 % to 0.2 % ensuring reliable readings.
Features 16-bit resolution for high data fidelity.
Designed for field mountability with flexible wall, pipe, or panel mounting options.
Equipped with Ethernet connectivity for remote data monitoring and retrieval.
Supports secure data logging with internal flash memory and SD card archiving.
Meets 21 CFR Part 11 compliance for data security and electronic record integrity.
Constructed to withstand harsh environments with NEMA4X and IP66 protection standards.

Product Description

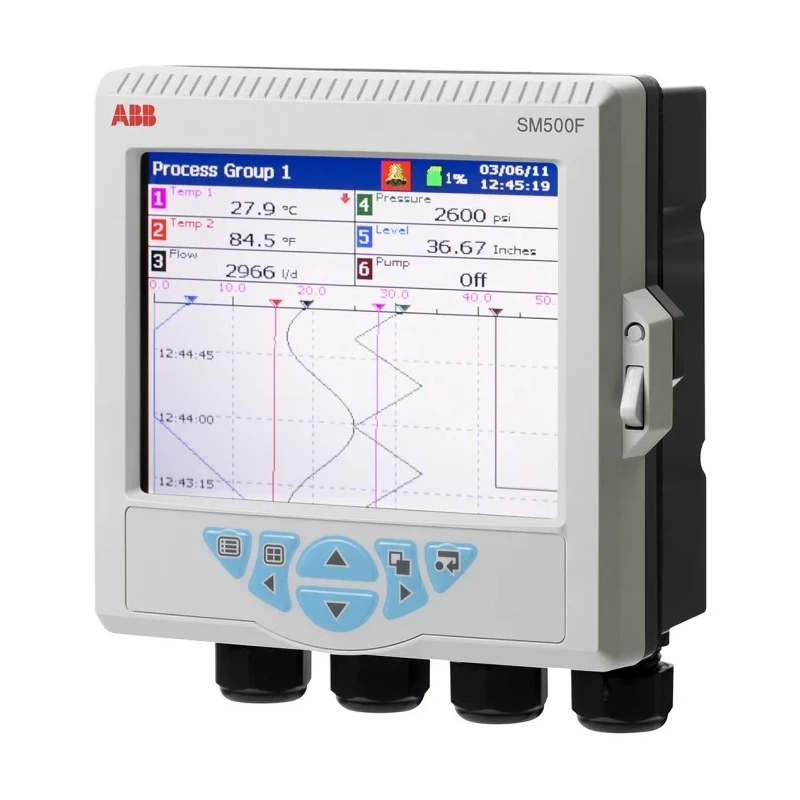

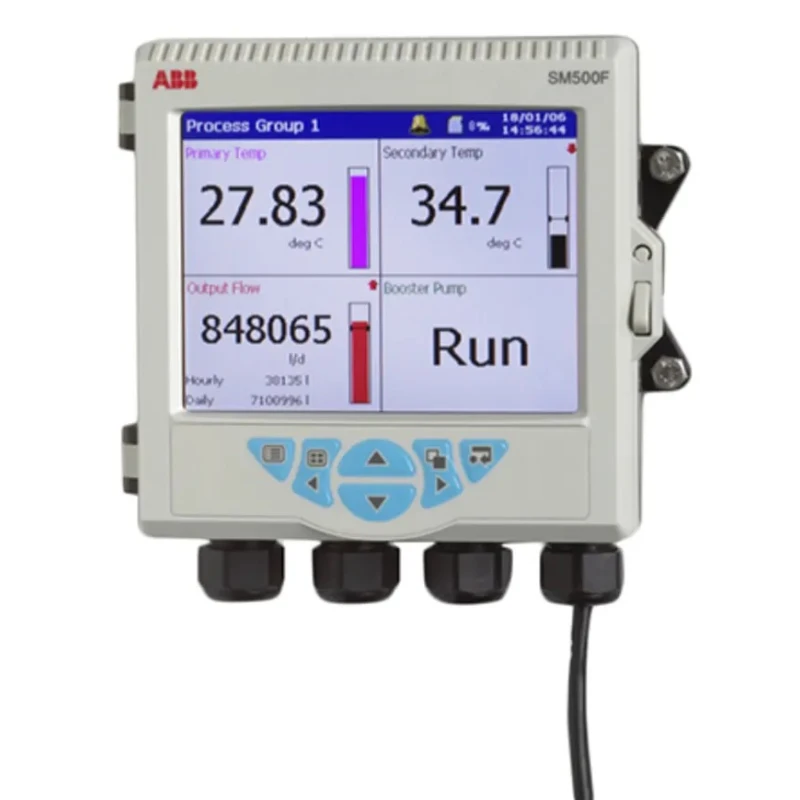

ABB SM503FCB is a 4-channel videographic chart recorder designed for precise monitoring of current, resistance, temperature, and voltage in diverse industrial environments. It supports various display formats such as chart, bar graph, and digital indicators, offering local operators clear visualization of process data.

The device ensures secure logging through a 64 MB internal flash memory and optional archiving via removable SD memory cards. Ethernet connectivity supports remote process monitoring and easy access to logged data, compatible with specific models.

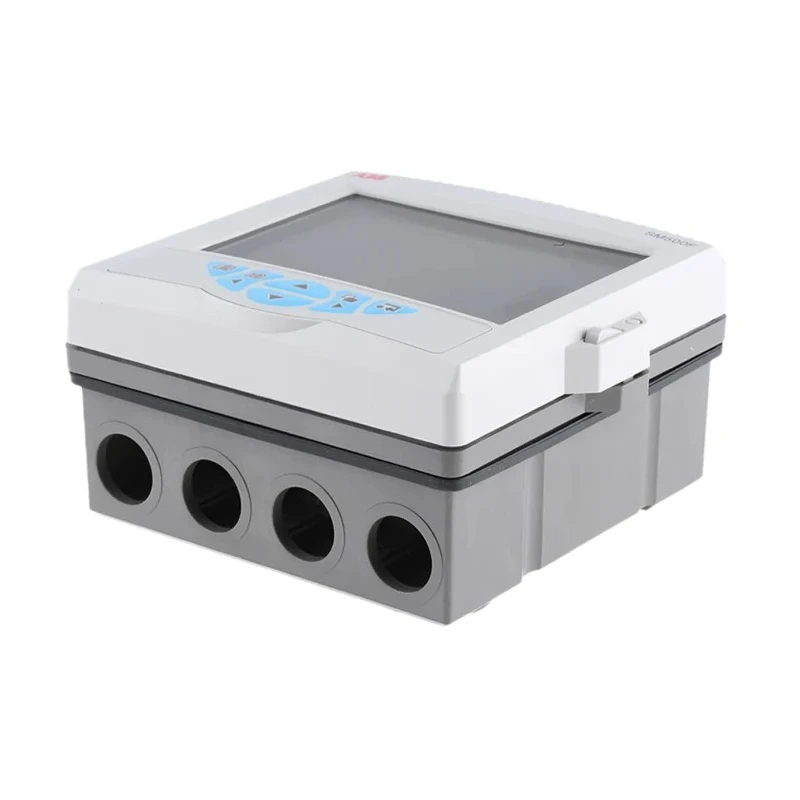

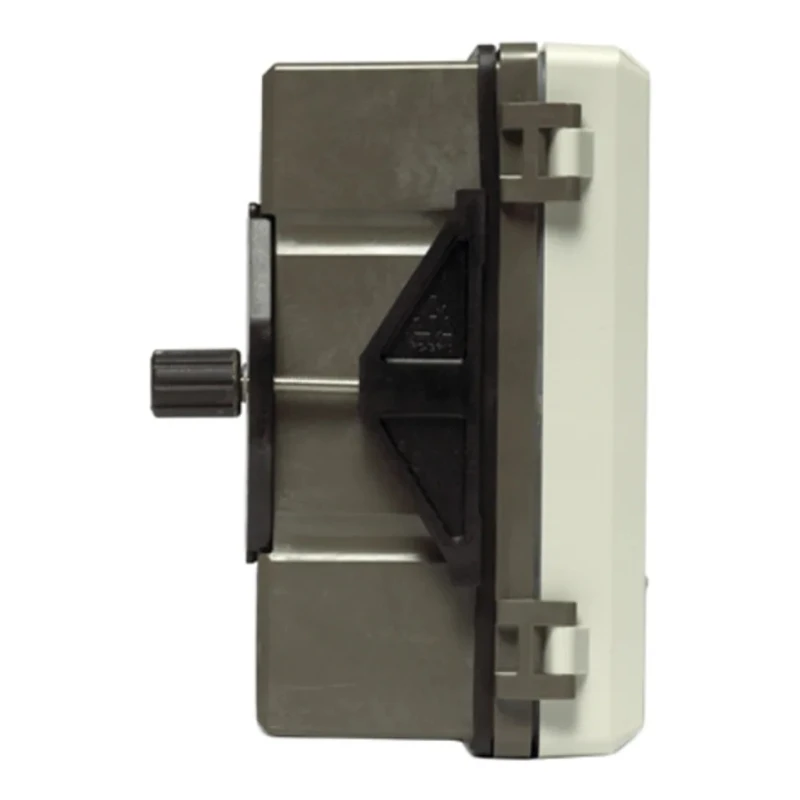

The SM503FCB features a unique universal mounting system allowing wall, pipe, or panel installation, coupled with an ultra-slim design measuring 90 mm in depth for flexible deployment.

This recorder complies with 21 CFR Part 11, offering robust physical and electronic security measures, suitable for highly regulated environments.

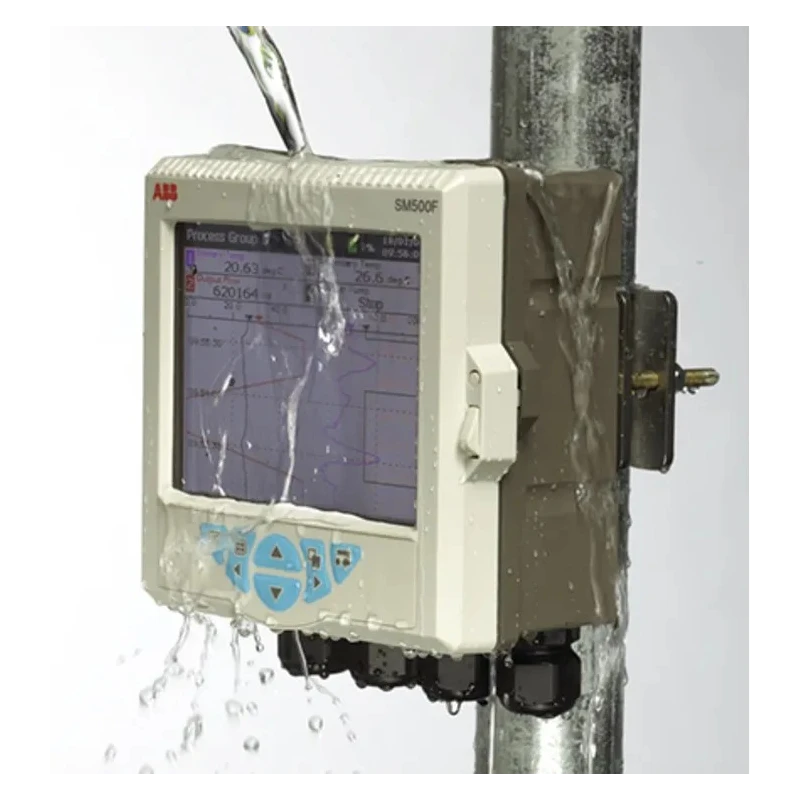

Protection standards including NEMA4X and IP66 make it ideal for harsh process environments, ensuring durability and reliability. Multiple display options include color TFT and monochrome, and the system facilitates quick and intuitive setup with online help and Windows™-style menus.

The recorder supports four measurement channels for comprehensive data capture. Offers an accuracy of 0.1 % to 0.2 % ensuring reliable readings. Features 16-bit resolution for high data fidelity. Designed for field mountability with flexible wall, pipe, or panel mounting options.

Equipped with Ethernet connectivity for remote data monitoring and retrieval. Supports secure data logging with internal flash memory and SD card archiving. Meets 21 CFR Part 11 compliance for data security and electronic record integrity.

Constructed to withstand harsh environments with NEMA4X and IP66 protection standards. Provides multiple display options including color TFT and monochrome screens. Quick setup facilitated through user-friendly online help and Windows-style menus.

This equipment is suited for industrial, laboratory, manufacturing, and process monitoring applications where accurate and secure data acquisition is critical. Explore more ABB Chart Recorders and measuring instruments on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model supports measurements for current, resistance, temperature, and voltage across four channels.

The recorder offers an accuracy range of 0.1 % to 0.2 % for reliable readings.

It features a 16-bit resolution, ensuring high data fidelity for accurate monitoring.

This unit is designed for flexible installation with options for wall, pipe, or panel mounting.

It is equipped with Ethernet connectivity for remote data monitoring and retrieval.

The dimensions are 144 mm in height, 144 mm in length, and 79 mm in width, with a gross weight of 1 kg.

It utilizes a videographic chart type for visualizing data.

The recorder offers multiple display formats, including color TFT and monochrome screens for clear data visualization.

Yes, it meets 21 CFR Part 11 compliance for data security and electronic record integrity.

It is constructed to withstand harsh environments with NEMA4X and IP66 protection standards.

It includes a 64 MB internal flash memory for secure data logging and supports SD card archiving for additional storage.

This equipment is suited for industrial, laboratory, manufacturing, and process monitoring applications where accurate and secure data acquisition is critical.
