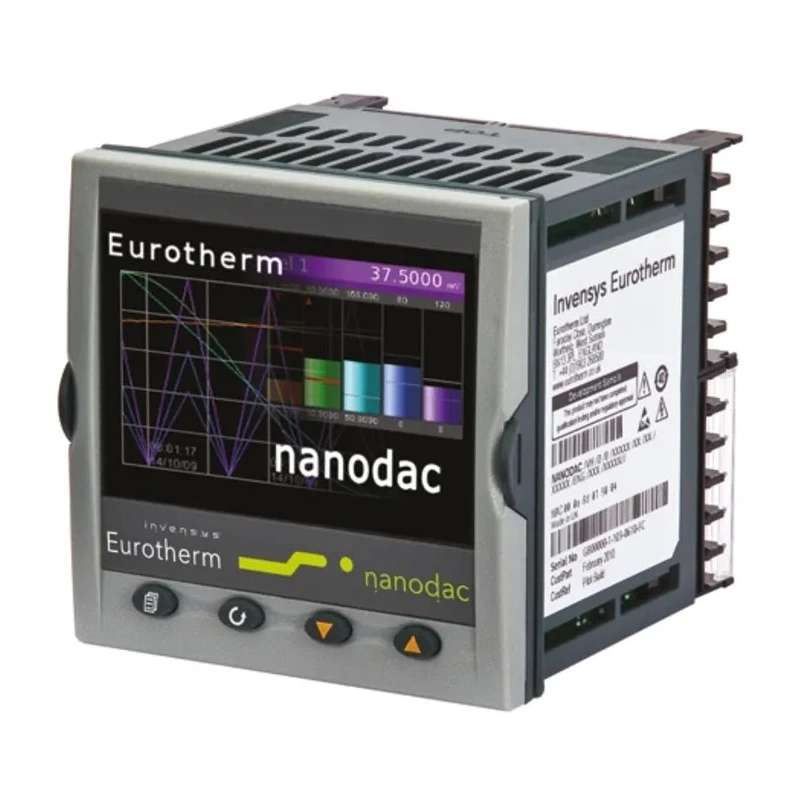

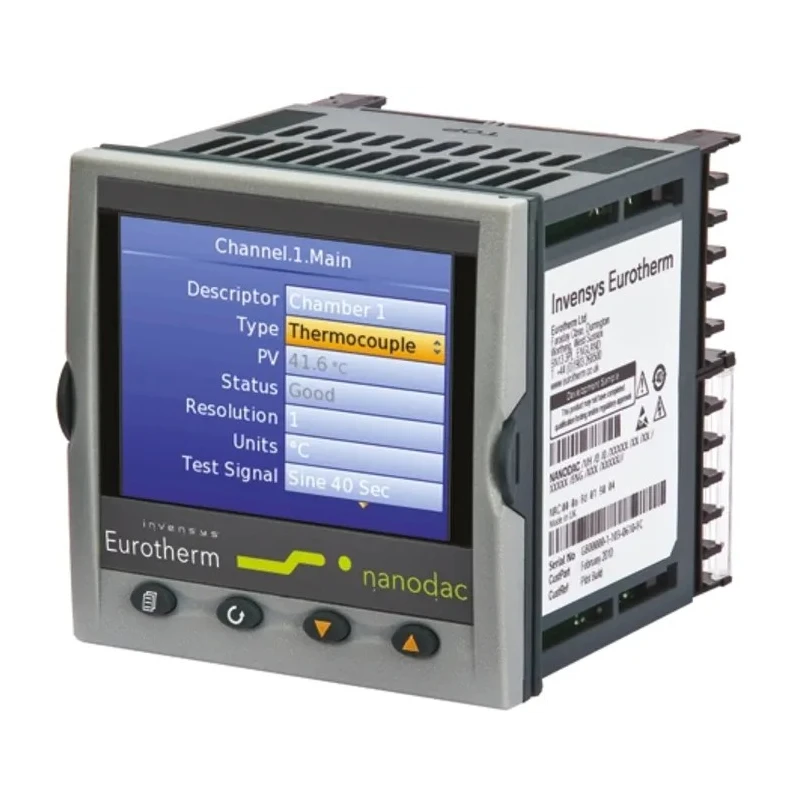

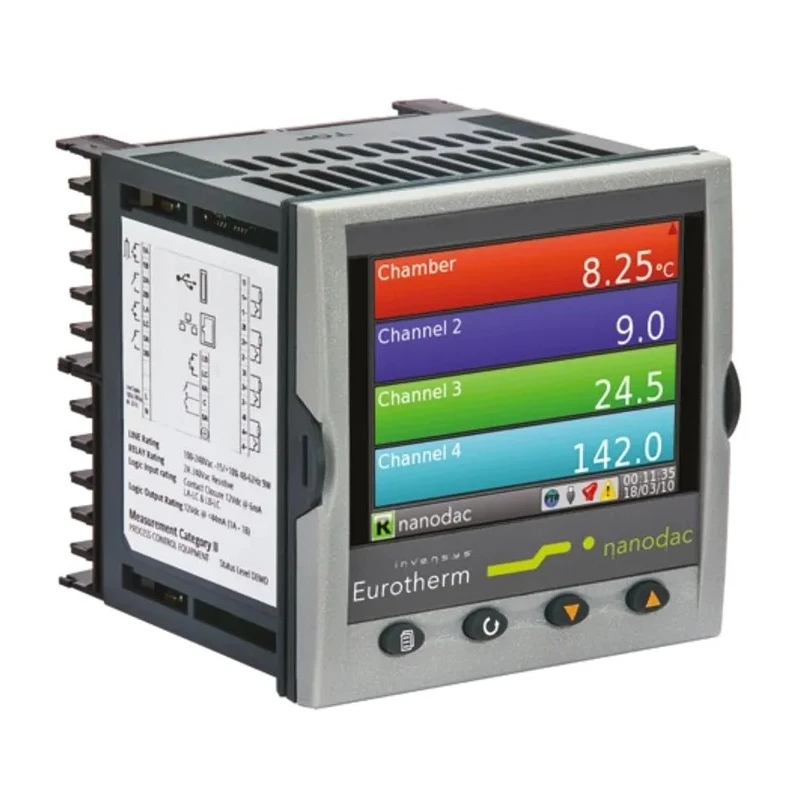

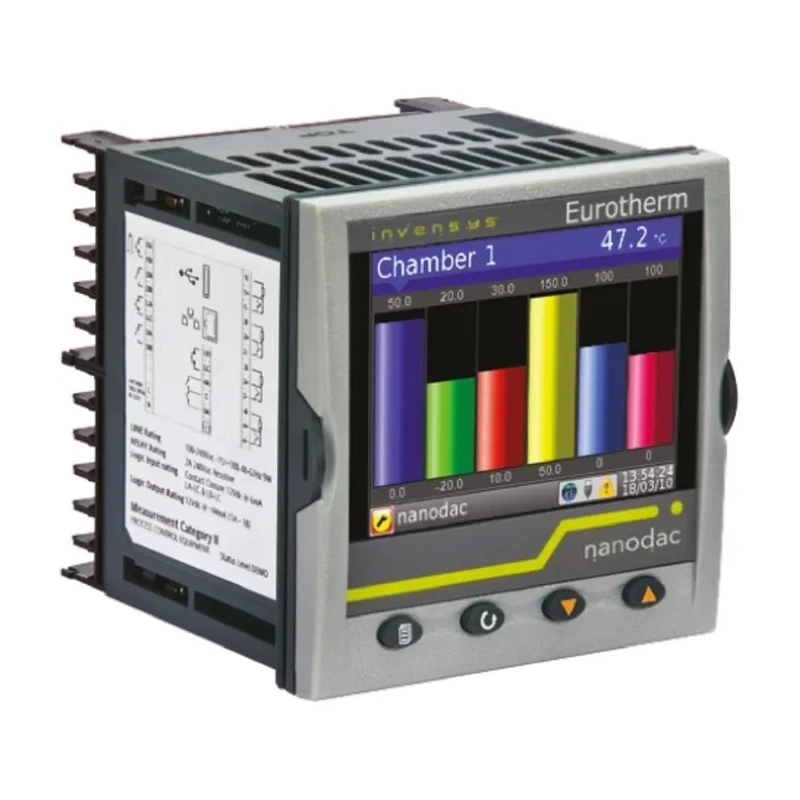

Eurotherm 3-Channel Graphical Chart Recorder for Current, Millivolt, Resistance, Temperature, Voltage NANODAC/VL/C/X/LRR
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Resolution | 0.05 °C |
| Accuracy | ±1 % |
| Brand | Eurotherm |
| Height | 96mm |
| Length | 96mm |
| Model | NANODAC/VL/C/X/LRR |
| Gross Weight | 440g |
| Width | 90mm |
| Interfaces | USB removable data storage facility |
| Number Of Channels | 3 |
| Measurement Parameters | Current, Millivolt, Resistance, Temperature, Voltage |
| Standards/Approvals | UL, EU, CE, BS EN 61326 |
| Chart Type | Graphical |
| The views include | Horizontal and vertical trends, Horizontal and vertical bar graphs, Numeric, Alarm panel, Alarm status, and control loops |
Key Features
- Features high accuracy of ±1 percent for reliable measurements.
- Equipped with 3 universal input channels to capture diverse signals.
- Offers a vibrant 3.5 inch TFT 1/4 VGA full-color display for clear process visualization.
- Includes USB removable data storage with 50 MB flash memory to secure data.
- Supports Ethernet communications with Modbus TCP/IP slave protocol.
- Compact 1/4 DIN panel mount design suitable for industrial environments.
- Multi-language support including English, French, German, Italian, and Spanish.
- Provides versatile graphical views such as trends, bar graphs, numeric displays, alarm panels, and control loops.
Product Description
Eurotherm NANODAC/VL/C/X/LRR is a compact 3-channel graphical chart recorder designed for accurate monitoring and control of electrical process parameters including current, millivolt, resistance, temperature, and voltage. This advanced device integrates precise data recording capabilities with versatile PID control in a small footprint suitable for industrial, laboratory, and manufacturing environments.
The recorder offers a sharp 3.5 inch TFT full-color display providing clear visualization of process signals through configurable views such as horizontal and vertical trends, bar graphs, numeric readouts, alarm panels, and control loops. Its robust design allows front user wiring for easy setup without PC connectivity.
Equipped with high accuracy universal inputs and 2 PID control loops, the NANODAC/VL/C/X/LRR supports secure data logging with its 50MB flash memory and USB removable data storage functionality. Ethernet communications with Modbus TCP/IP slave protocol enable seamless integration into existing control systems.
This product meets international standards including UL, EU, CE, and BS EN 61326, and is designed with a compact 1/4 DIN panel mount suitable for space-constrained industrial applications. Multi-language interface options cater to global industry users, enhancing usability.
High accuracy ±1percent ensures reliable parameter measurement. Three universal input channels support multiple measurement types. Full-color 3.5 inch TFT display delivers clear operational insights. USB removable data storage allows easy data export and backup.
Ethernet Modbus TCP/IP slave facilitates network communication. Compact 1/4 DIN panel mount fits standard industrial panels. Multi-language support for international applications. Graphical views enhance analysis and alarm monitoring.
Suitable for industrial machines, laboratory instrumentation, HVAC systems, manufacturing process monitoring, and other electrical measurement and control applications, this chart recorder from Eurotherm delivers precision, versatility, and durability in a compact device.
Explore more industrial measurement instruments in the Chart Recorders category at EnvMart.
