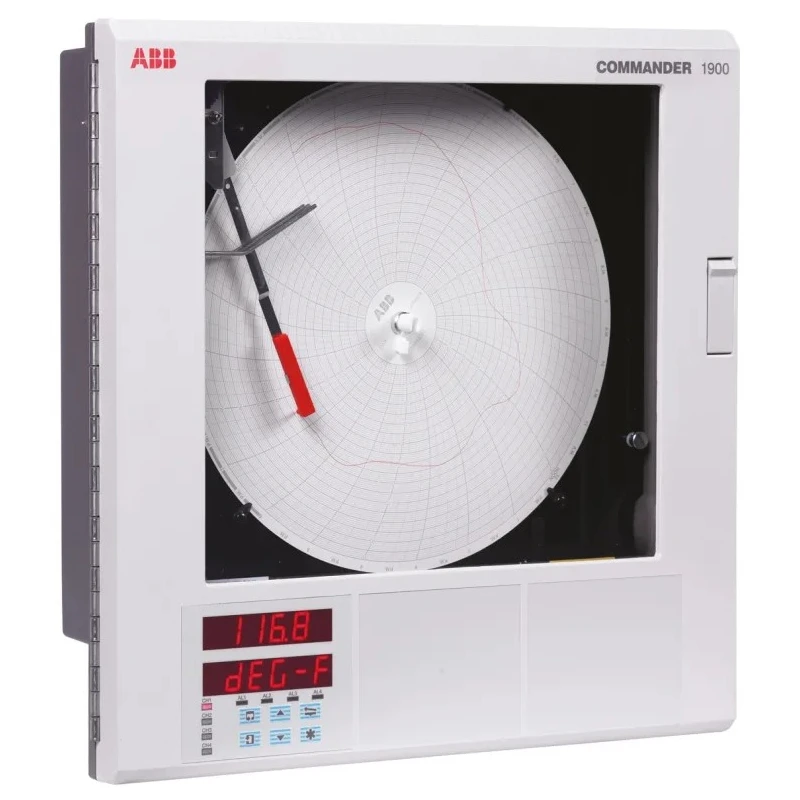

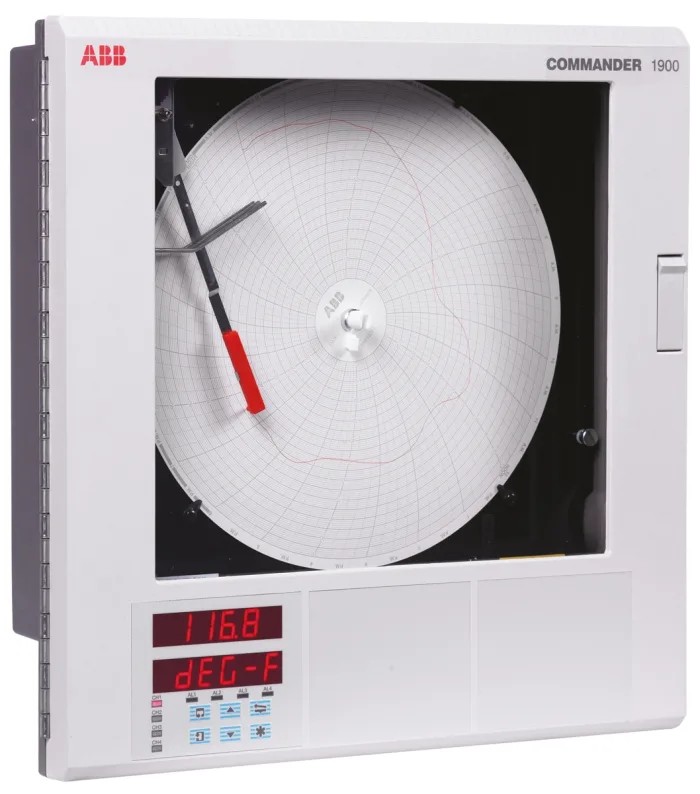

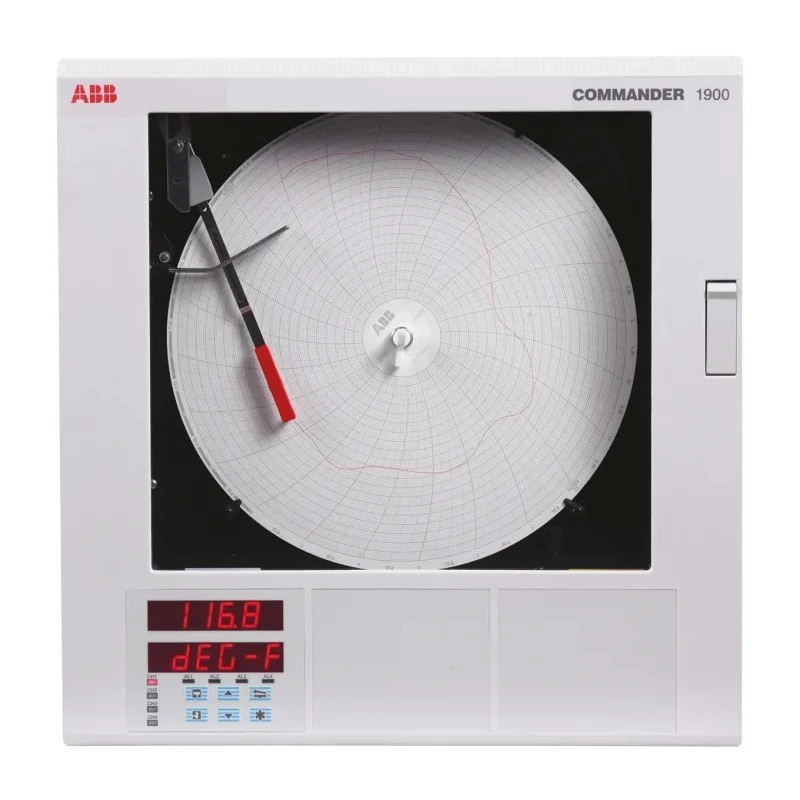

ABB 1-Channel Circular Chart Recorder, 1 Channel, ±0.1% Accuracy, Current, Millivolt, Resistance C1912 KA0012 00000 STD

ABB C1912 KA0012 00000 STD is a 1-channel circular chart recorder that delivers high precision and flexibility for measuring and logging current, millivolt, resistance, temperature, and voltage signals. It features a robust design with dimensions of 382 x 386 x 134 mm, weighing 8.2 kg, making it suitable for various industrial environments requiring reliable process monitoring and recording.

Its isolated universal analogue inputs support a wide range of sensor types including mV, V, mA, Ω, and Pt100, alongside thermocouple inputs of types B, E, J, K, L, N, R, S, and T. The recorder offers ±0.1% measurement accuracy with high noise immunity, ensuring dependable performance in harsh conditions.

The recorder’s chart speed is adjustable between 1 to 167 hours or 7 to 32 days per revolution, accommodating diverse monitoring needs. It features analogue retransmission (4-20 mA), relay alarms rated at 5A @ 115/230 V ac, digital inputs, and transmitter power supply for complete integration within control systems.

Display functions include multiple 6-digit indicator panels for continuous monitoring of all signal values, enhancing operator ease and process visibility. Its sturdy NEMA 4X/IP66 construction supports hose-down environments, ensuring durability and longevity. The device’s operating voltage is 115/230 V ac, compatible with standard industrial power supplies.

Equipped with isolated universal analogue inputs for multiple sensor types. Supports thermocouple inputs for broad temperature measurement. Offers high accuracy of ±0.1% with enhanced noise immunity. Adjustable chart speed up to 32 days per revolution enables versatile logging.

Includes alarm relay, digital I/O, and transmitter power supply for system integration. Multiple 6-digit displays provide continuous signal readouts. Rugged NEMA 4X/IP66 construction for demanding industrial environments.

Compact dimensions facilitate easy installation and use.

This circular chart recorder is ideal for industrial, laboratory, manufacturing, water treatment, and HVAC monitoring applications, where precise analogue data acquisition is essential. Its robust design ensures dependable operation under tough conditions, making it suitable for continuous process control and analysis.
