Eurotherm 3-Channel Graphical Graphic Recorder Millivolt Resistance Voltage Current Temperature NANODAC/VL/X/X/RDD

Eurotherm NANODAC/VL/X/X/RDD is a state-of-the-art 3-channel graphical graphic recorder designed for precise measurement and recording of millivolt, resistance, voltage, current, and temperature in industrial environments. Its high accuracy universal inputs and versatile configurable display offer a comprehensive monitoring solution for manufacturing, laboratory, HVAC, and process control applications.

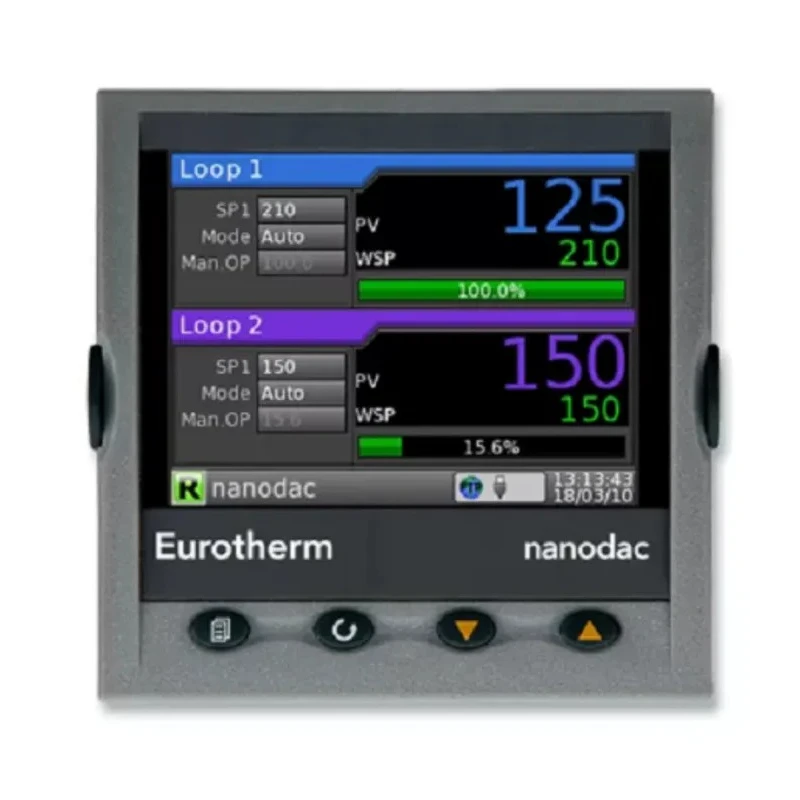

The built-in 3.5-inch TFT screen with 320x240 resolution provides vivid and clear visualisation of process parameters through configurable views such as trends, bar graphs, numeric displays, alarm status, and control loops. This enables operators to monitor system performance effectively in real time.

The recorder features tamper-resistant data recording methodology making it ideal for regulated industries requiring audit trails. It supports up to 50 MB of data storage and a fast 8 Hz sampling rate to capture rapid process changes with precision. The USB removable data storage simplifies data transfer and archival.

Designed for panel mounting with compact dimensions 96 mm height, 90 mm width, and 96 mm length, it fits seamlessly into existing control panels. The device operates on 24 V AC (+10%/-15%) or 24 V DC (+20%/-15%) power supply and offers 1 relay and 2 analog ISO DC outputs for integration with control systems.

It meets globally recognized standards including UL, CE, BS EN 61326, and EU directives ensuring safety, reliability, and electromagnetic compatibility. The product is manufactured in Poland, reflecting high build quality.

Equipped with 3 universal high accuracy inputs supporting multiple measurement types. Features a 3.5-inch TFT full colour display optimized for clear data visualisation. Supports tamper-resistant data recording ensuring audit-traceable process information.

Data storage capacity of 50 MB with 8 Hz sample recording rate for detailed logging. Includes USB interface for removable data storage and ease of data transfer. Compact design measuring 96 mm (H) x 90 mm (W) x 96 mm (L) fitting standard industrial panel mounts.

Complies with UL, CE, BS EN 61326 and EU standards for safety and electromagnetic compatibility. Operates on 24 V AC/DC power supply with relay and analog output options facilitating control functions.

This high-performance graphical recorder is suited for a variety of industrial, laboratory, HVAC, manufacturing, and water treatment applications requiring dependable real-time data acquisition and recording. Browse more Eurotherm instruments and Chart Recorders on EnvMart for advanced measurement solutions.
