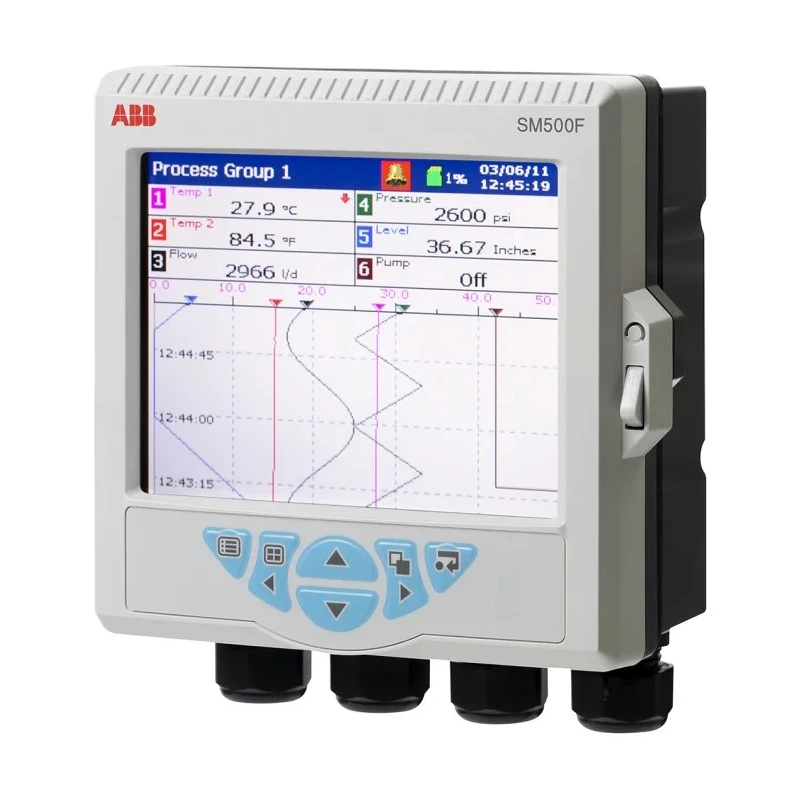

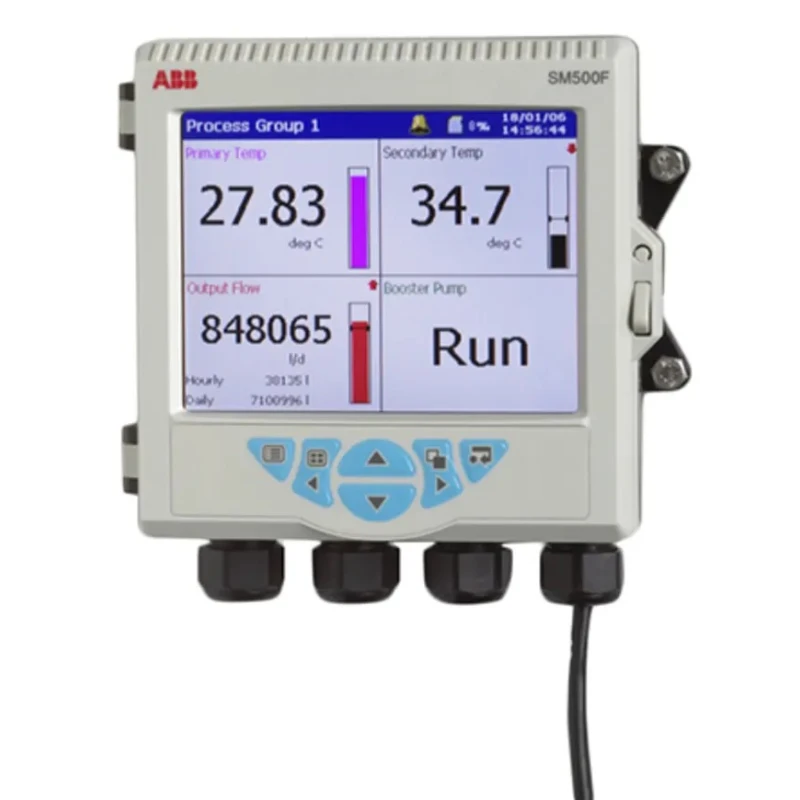

ABB 4-Channel Videographic Chart Recorder Current Resistance Temperature Voltage SM50DCF

ABB SM50DCF 4-Channel Videographic Chart Recorder is engineered for precise, multi-parameter monitoring of current, resistance, temperature, and voltage. With a compact size of 144mm height, 79mm width, and 144mm length, it serves critical roles in laboratory, automation, and power generation applications where reliable data acquisition is essential.

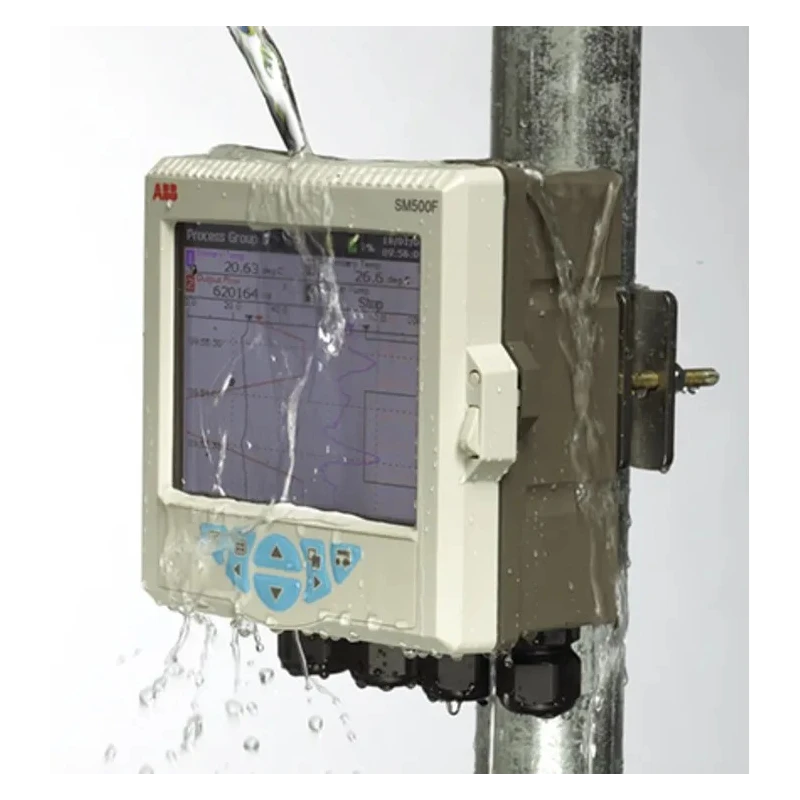

Designed for industrial and laboratory environments, this recorder features 16-bit resolution and delivers an accuracy of 0.2% and 0.1%, accommodating sensitive measurement needs. Its IP66 rating ensures protection against dust and water ingress, allowing operation in harsh conditions without data loss.

The device incorporates 64MB of internal flash memory for secure storage and supports a broad range of input signals, including thermocouples, RTDs, mA, mV, voltage, and digital signals, ensuring compatibility with diverse sensors and monitoring setups. Configurable alarm functions enhance process control by providing real-time alerts during anomalies.

Users can conveniently archive data to an SD memory card for offline analysis or utilize its Ethernet connectivity for seamless remote monitoring and data retrieval, facilitating integration with automation systems. Strong security features such as password protection for configuration and encrypted storage safeguard data integrity and compliance with regulatory standards.

This chart recorder is ideal for precise temperature monitoring in laboratories, performance data logging in automation systems, and electrical parameter monitoring in power generation industries. It combines durability with advanced measurement capabilities, making it a valuable tool for demanding industrial and research environments.

Equipped with four input channels for simultaneous multi-parameter monitoring. IP66 rating ensures reliable operation in harsh industrial conditions. 64MB internal memory offers substantial data storage capacity. Supports diverse input types: thermocouples, RTDs, mA, mV, voltage, and digital signals.

Configurable alarms provide enhanced control and process monitoring. Secure data archiving via SD memory card and remote access via Ethernet connectivity. Advanced security with password protection and encrypted data storage.

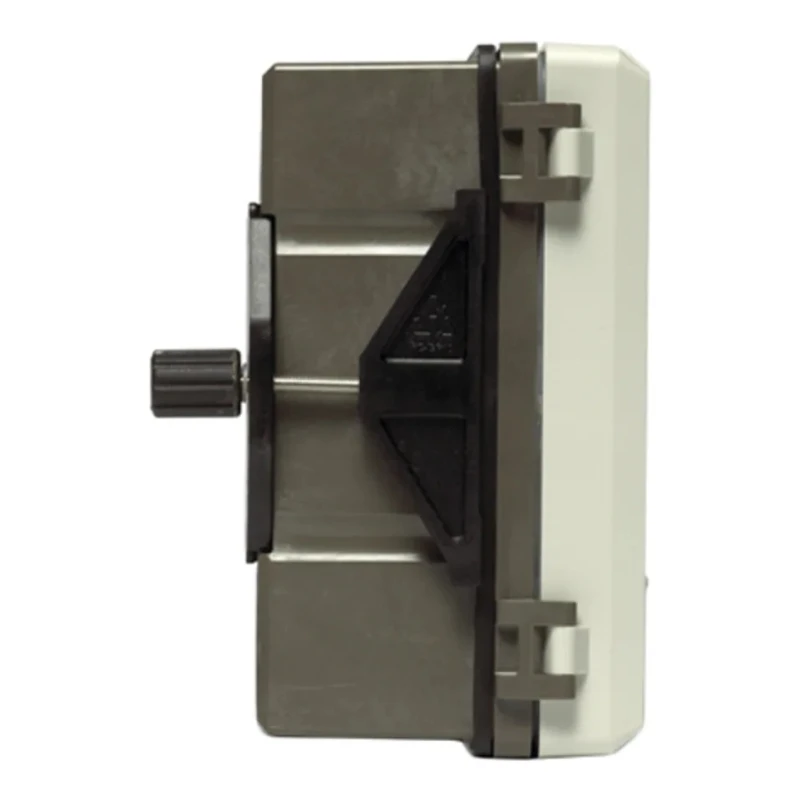

Compact dimensions and lightweight design for flexible installation. Discover the ABB range of high-precision measurement instruments, and explore our extensive selection of Chart Recorders on EnvMart for industrial and laboratory applications.
