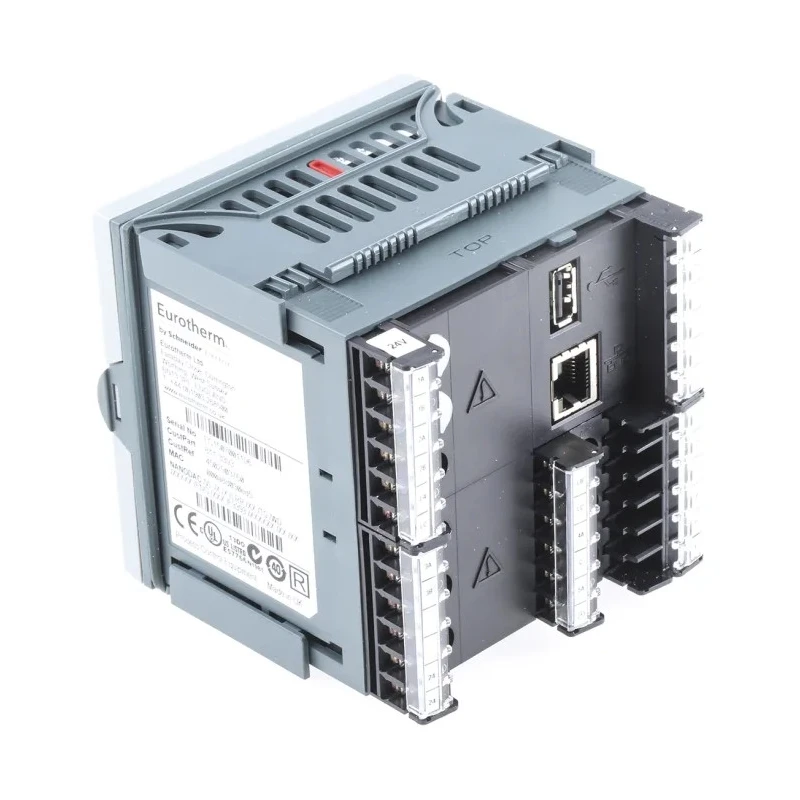

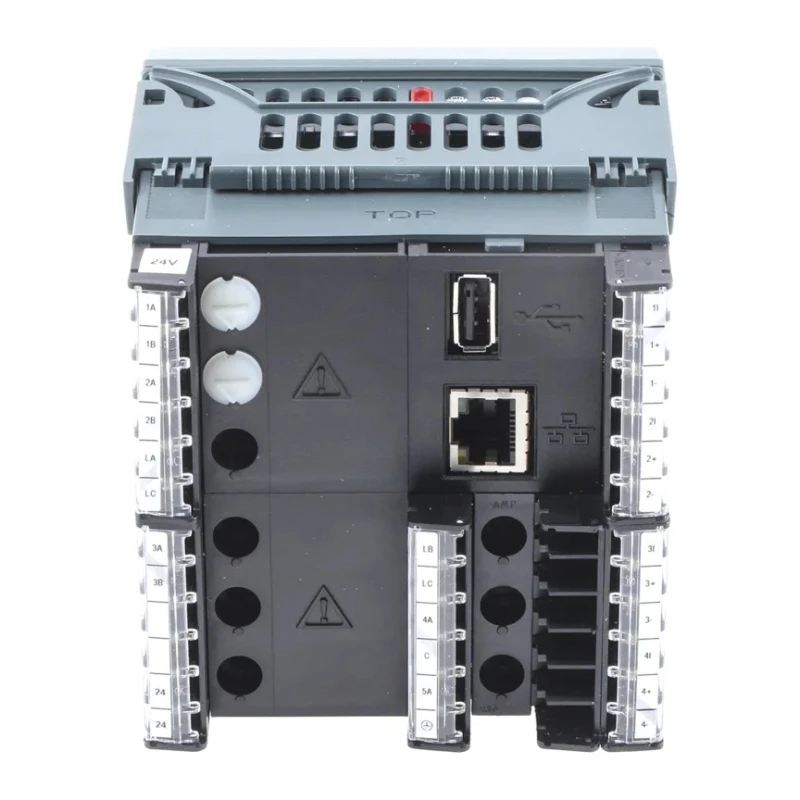

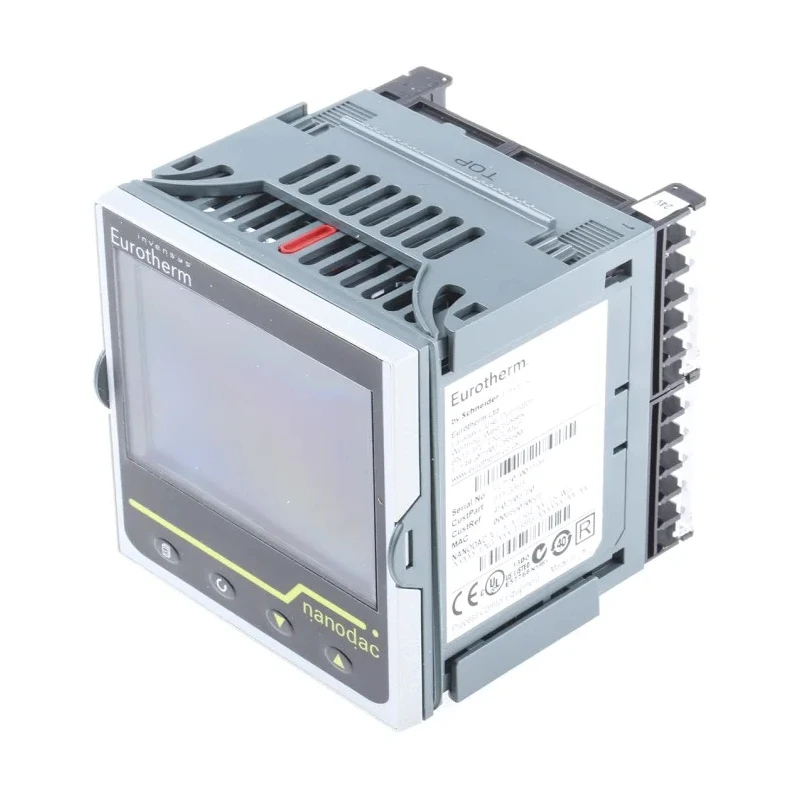

Eurotherm 4-Channel Paperless Chart Recorder with Current, Millivolt, Resistance, Temperature NANODAC/VL/X/X/LRR/XX/TS/WD
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 20 mΩ, 500 μV, 0.05 °C |
| Accuracy | 0.1 % |
| Display | 3.5in VGA crystal clear display |
| Brand | Eurotherm |
| Height | 96mm |
| Length | 96mm |
| Model | NANODAC/VL/X/X/LRR/XX/TS/WD |
| Gross Weight | 440g |
| Width | 90mm |
| Interfaces | Ethernet and MODBUS TCP/IP slave (default) |
| Number Of Channels | 4 |
| Measurement Parameters | Current, Millivolt, Resistance, Temperature, Voltage |
| Standards/Approvals | RoHS |
| Chart Type | Paperless |
Key Features
- This paperless recorder features 4 high accuracy universal inputs for effective data recording.
- Equipped with a 3.5in VGA crystal clear display for enhanced visualization of process parameters.
- Offers secure data recording with 50MB flash memory and USB removable data storage capability.
- Supports easy network integration via Ethernet and MODBUS TCP/IP slave for control system connectivity.
- Designed for front-panel user wiring and configuration without PC connection requirements.
- Includes advanced features like cascade with auto tune and multiple configurable display views.
- Compact 1/4 DIN panel mount design with IP10, IP65, and IP66 washdown front protection ratings.
- Supports multi-language interface including English, French, German, Italian, and Spanish.
Product Description
Eurotherm NANODAC/VL/X/X/LRR/XX/TS/WD 4-Channel Paperless Chart Recorder is a versatile industrial instrument designed for high-precision measurement and recording of current, millivolt, resistance, temperature, and voltage signals. Operating at 24VDC/VAC, this compact DIN panel mount unit supports four channels with universal inputs ensuring accurate data acquisition and PID control for industrial and laboratory applications.
The device's 3.5-inch VGA display enables clear visualization of process data through diverse configurable views including trends, bar graphs, numeric readouts, alarm panels, status indicators, and control loops. Its robust design includes front panel wiring capability which facilitates detailed configuration without needing a PC connection, enhancing user convenience and installation flexibility.
The NANODAC offers 50MB of internal flash memory for secure data storage complemented by USB removable storage for easy data transfer. Its communication capabilities include default Ethernet and MODBUS TCP/IP slave protocols for seamless integration with control systems and industrial networks. Auto tuning and cascade functions increase control effectiveness across complex applications.
Engineered for durability in demanding environments, the product features a washdown front panel rated IP10, IP65, and IP66 for protection against dust and water ingress, making it suitable for sterilizer and relative humidity applications. The multi-language interface supports English, French, German, Italian, and Spanish, expanding accessibility globally.
This paperless chart recorder is well suited for industrial process monitoring, laboratory data logging, HVAC controls, manufacturing process automation, and water treatment systems. Its universal input versatility allows measurement of a broad range of electrical and temperature parameters with high precision and reliability.
High accuracy universal inputs support multiple measurement parameters. Compact 1/4 DIN panel mount with washdown front enhances installation flexibility. Multiple configurable display views provide comprehensive process insight.
Robust communication protocols enable easy network integration. Secure internal and removable USB data storage options. Multi-language user interface improves usability worldwide. Protective IP rated front panel suitable for harsh industrial environments.
Explore the category of Chart Recorders on EnvMart for more advanced data logging and process control solutions including products from Eurotherm and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eurotherm NANODAC/VL/X/X/LRR/XX/TS/WD offers an accuracy of 0.1%.
It can measure current, millivolt, resistance, temperature, and voltage signals.
The resolution for this model is 20 mΩ for resistance, 500 μV for millivolt, and 0.05 °C for temperature.
The dimensions of the Eurotherm NANODAC are 96mm in height, 96mm in length, and 90mm in width.
This model supports 4 channels for data recording.
It features a 3.5-inch VGA crystal clear display for enhanced visualization of process parameters.
It includes Ethernet and MODBUS TCP/IP slave interfaces for network integration.
The recorder has a 50MB internal flash memory for secure data storage.
The gross weight of this model is 440g.
The front panel is rated IP10, IP65, and IP66 for protection against dust and water ingress.
Yes, it supports a multi-language interface including English, French, German, Italian, and Spanish.
The Eurotherm NANODAC complies with RoHS standards.
