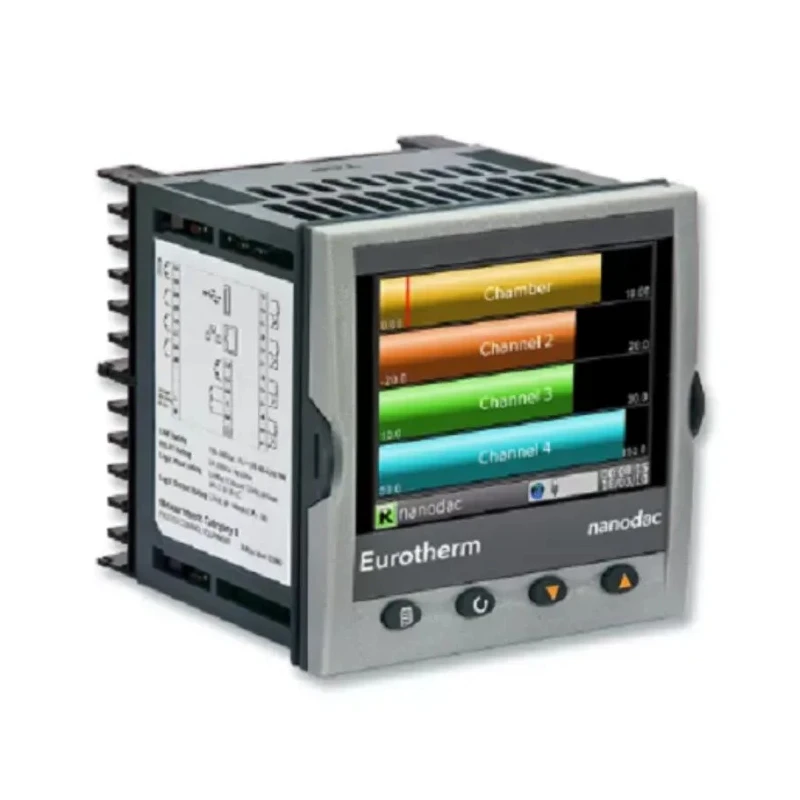

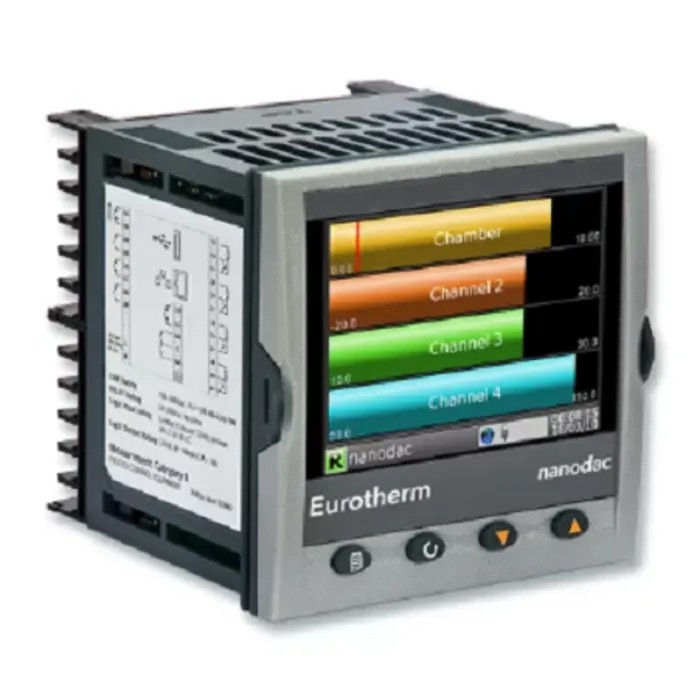

Eurotherm 3-Channel Graphical Graphic Recorder Voltage, Current, Millivolt, Temperature, Resistance NANODAC/VH/C/X/LRD

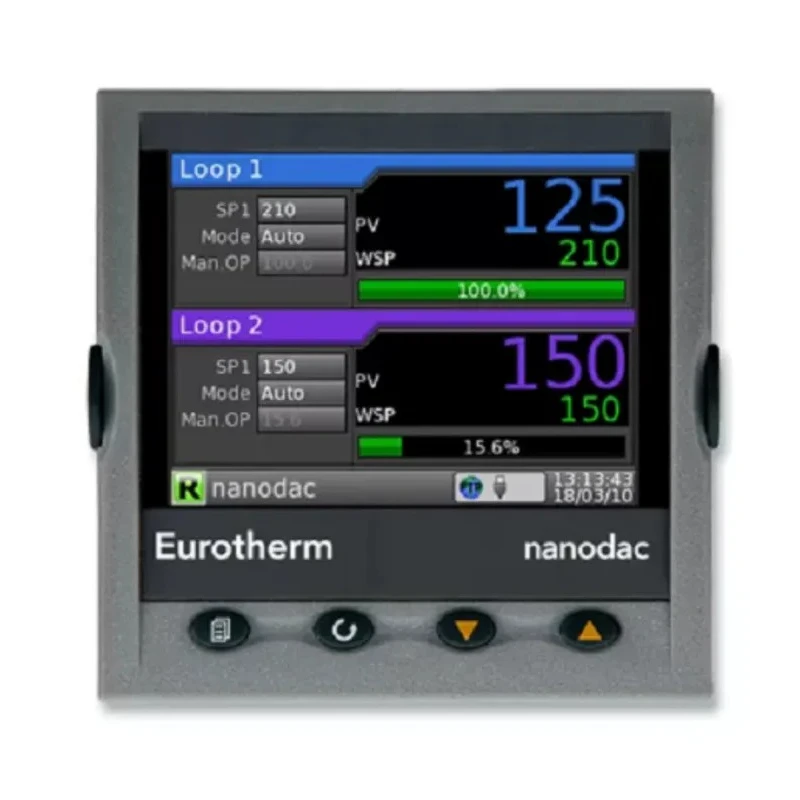

Eurotherm NANODAC/VH/C/X/LRD 3-Channel Graphical Graphic Recorder is designed for precise industrial process measurement and control, supporting measurements of voltage, current, millivolt, temperature, and resistance. It provides advanced graphical representation with a 3.5 inch colour TFT display (320x240 pixels) that allows operators to monitor processes using multiple display modes, such as horizontal and vertical trends, bar graphs, numeric values, alarm statuses, and control loops.

The recorder integrates Eurotherm's renowned PID control algorithm for high performance, offering two control loops with additional outputs including one logic, one relay, and one analog (ISO DC) output for versatile process control applications. It operates on an input voltage range of 100-230 V AC ±15% at 48-62 Hz.

Data handling is made secure and efficient with tamper-resistant recording methodology trusted by auditors, and features USB removable data storage for easy data transfer. It supports a sample recording rate of 8 Hz (125 ms) to capture rapid process changes with high resolution and offers 50 MB of internal storage capacity to retain extensive datasets.

This compact and lightweight unit (96 mm height, 90 mm width, 96 mm length; weight 440 g) meets international safety standards including UL, EN61010, and CE, ensuring reliable operation in industrial environments. Its multi-language support broadens accessibility for global applications.

Ideal for industrial, manufacturing, HVAC, laboratory, and water treatment process monitoring and control, this graphical recorder enhances operational efficiency and quality assurance. The robust design and versatility make it a valuable tool for varied measuring and testing instrumentation needs.

Equipped with advanced Eurotherm PID control algorithm ensuring high reliability. Features a 3.5 inch TFT display for clear visualization of process parameters. Supports multiple configurable views including trends, bar graphs, numeric displays, and alarm panels.

Includes tamper-resistant data recording with USB removable data storage. Offers high accuracy universal inputs with 50 MB internal data storage capacity. Sampling rate of 8 Hz enabling detailed data recording. Compact design with robust industrial-grade construction.

Multi-language support facilitates usability across diverse environments. Explore additional Eurotherm Chart Recorders and measurement tools at EnvMart to find solutions tailored to your industrial process control requirements.
