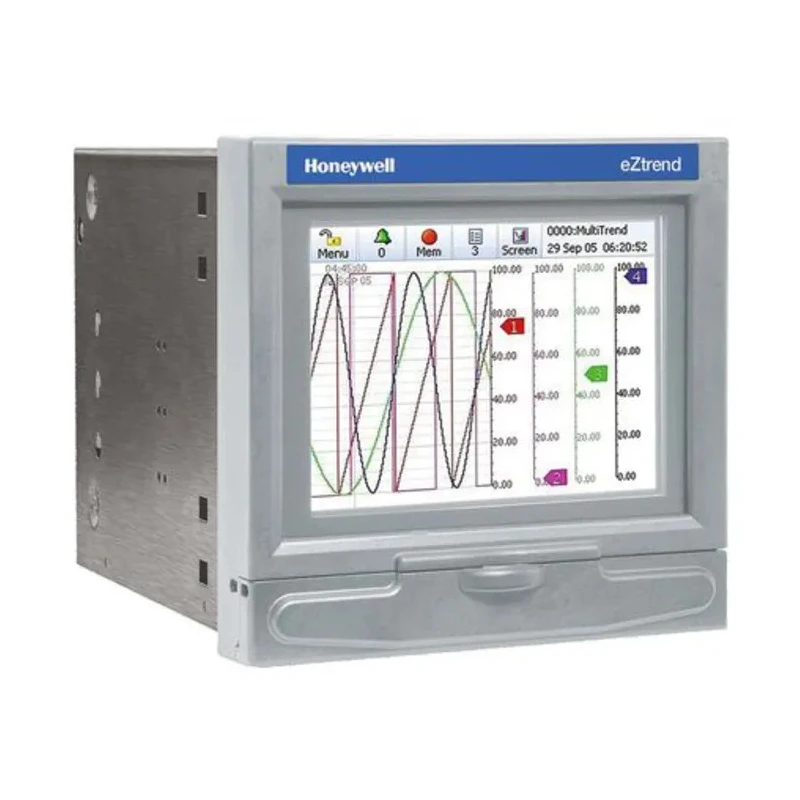

Honeywell Technologies 12-Channel Graphical Chart Recorder Current Resistance Temperature TVEZGR-61-600-11-0-000-000000-000
Specifications
| Country of Origin | Mexico |
|---|---|
| Resolution | 320 x 240 pixels |
| Accuracy | ±0.2 %, ±0.1 % |
| Brand | Honeywell |
| Height | 144mm |
| Length | 200mm |
| Model | TVEZGR-61-600-11-0-000-000000-000 |
| Gross Weight | 2.4kg |
| Width | 144mm |
| Interfaces | USB port as standard for keyboard and mouse |
| Number Of Channels | 12 |
| Measurement Parameters | Current, Resistance, Temperature, Voltage |
| Standards/Approvals | CE |
| Chart Type | Graphical |
| 12 Ch Paperless Digital Process RecorderBrand | Honeywell |
Key Features
- Equipped with a 5.7-inch TFT digital color LCD providing 320 x 240 pixel resolution.
- Rugged industrial touch screen offers intuitive navigation and operation.
- Supports 12 input channels for simultaneous multi-parameter monitoring.
- Secure data recording using encrypted files accessible only via TrendManager Pro software.
- Front USB port enables connection of keyboard, mouse, and removable storage devices.
- 1 GB onboard non-volatile memory with solid-state flash storage ensures reliable data retention.
- Password protection and extended security system (ESS) safeguards data integrity.
- Health Watch feature for preventative maintenance monitoring.
Product Description
Honeywell TVEZGR-61-600-11-0-000-000000-000 is a 12-Channel Graphical Chart Recorder designed for precise measurement and data logging of current, resistance, temperature, and voltage parameters. Its electronic data recording capability replaces traditional 100 mm paper strip Chart Recorders, enabling secure and accurate digital data capture for various industrial, laboratory, and process monitoring applications.
The recorder features a 5.7-inch color TFT LCD with a resolution of 320 x 240 pixels, providing clear graphical visualization of recorded data. The rugged industrial touch screen offers rapid and intuitive navigation, enhancing user experience in demanding environments.
Data is securely recorded in encrypted files that can only be accessed through Honeywell's TrendManager Pro software, ensuring integrity and preventing alteration. With 1 GB of on-board non-volatile flash memory complemented by removable USB storage, data management is flexible and secure.
This device incorporates password protection and an Extended Security System (ESS) to prevent unauthorized access. Its Health Watch feature proactively monitors device status for preventative maintenance, improving operational reliability.
The chart recorder supports independent chart and logging speeds, allowing tailored data capture rates to meet specific process requirements. Connectivity is expanded with a front USB port supporting keyboard, mouse, and removable storage devices for ease of operation and data transfer.
Constructed compactly with dimensions of 200 mm length, 144 mm width, and 144 mm height, and weighing approximately 2.4 kg, the instrument is suitable for installation in constrained spaces.
Equipped with a 5.7-inch TFT color LCD with 320x240 pixel resolution. Rugged industrial touch screen ensures durability and rapid navigation. 12 measurement channels for Current, Resistance, Temperature, and Voltage. Secure encrypted data recording compatible with TrendManager Pro software.
On-board 1 GB non-volatile flash memory plus removable USB storage capability. Password protection and Extended Security System safeguard data. Health Watch monitors device status for preventative maintenance. Independent chart and logging speeds for flexible data capture.
Front USB port compatible with keyboard, mouse, and storage devices. Compact dimensions: 200 mm (L) x 144 mm (W) x 144 mm (H), weight 2.4 kg.
This graphical chart recorder is ideal for industrial, laboratory, process control, and HVAC applications requiring precise multi-channel data monitoring. It ensures accurate and secure electronic data logging to enhance operational efficiency and compliance.
Explore the full range of Honeywell measuring instruments on EnvMart for comprehensive data acquisition and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measurement accuracy of this model is ±0.2 % and ±0.1 %.
This unit supports 12 input channels for simultaneous multi-parameter monitoring.
The dimensions are 200 mm in length, 144 mm in width, and 144 mm in height, with a weight of approximately 2.4 kg.
It can measure current, resistance, temperature, and voltage parameters.
It is equipped with a 5.7-inch TFT digital color LCD providing a resolution of 320 x 240 pixels.
It includes password protection, an Extended Security System (ESS), and secure data recording in encrypted files.
It has 1 GB of onboard non-volatile memory with solid-state flash storage, along with removable USB storage capability.
Data can only be accessed through Honeywell's TrendManager Pro software.
It features a front USB port for connecting a keyboard, mouse, and removable storage devices.
It complies with CE standards.
This model uses a graphical chart type for data visualization.
It is suitable for industrial, laboratory, process control, and HVAC applications requiring precise multi-channel data monitoring.
