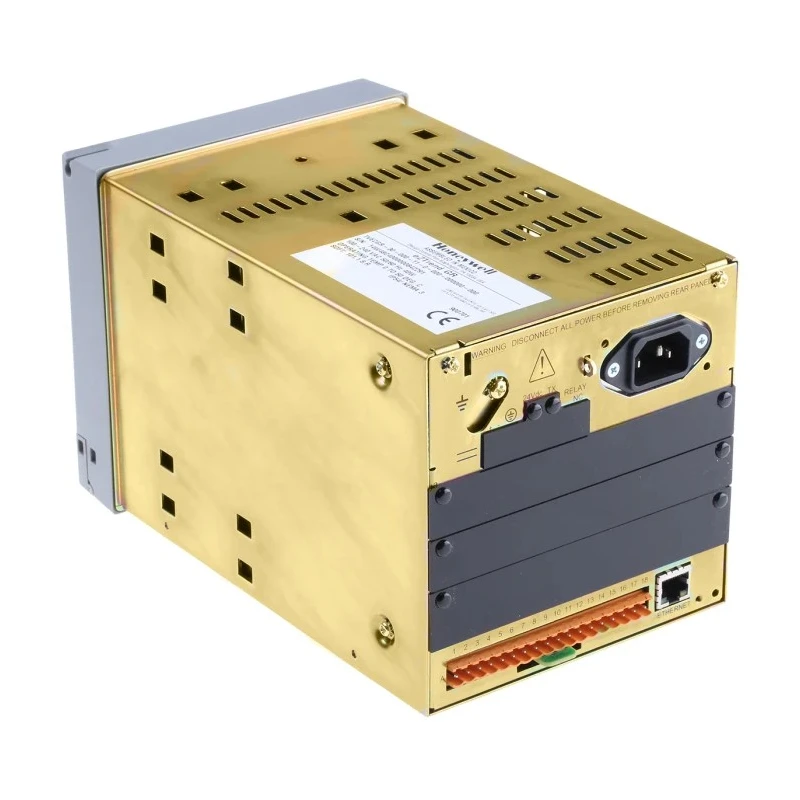

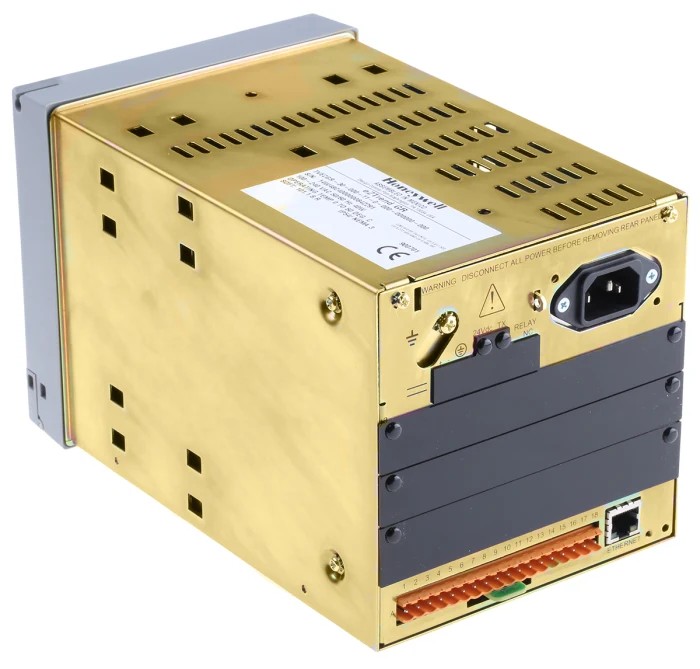

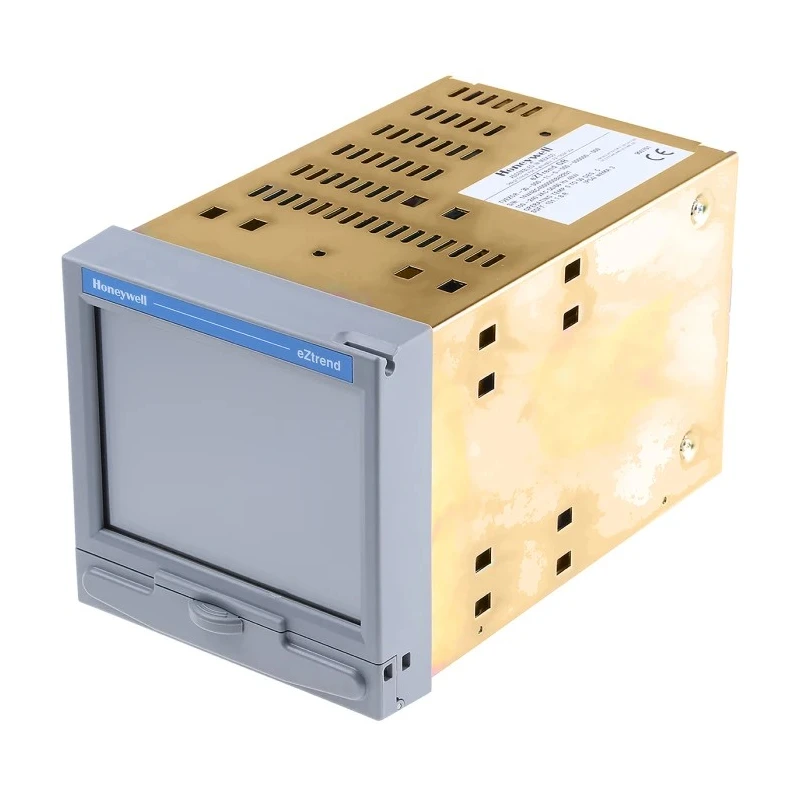

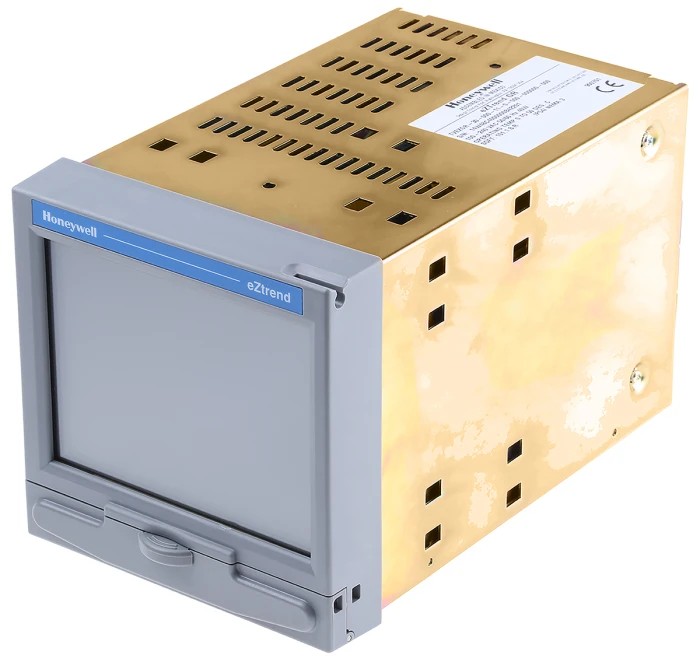

Honeywell Technologies 3-Channel Graphical Chart Recorder Current Resistance Temperature TVEZGR-30-000-11-0-000-000000-000
Specifications
| Country of Origin | Mexico |
|---|---|
| Resolution | 320 x 240 pixels |
| Accuracy | ±0.2 %, ±0.1 % |
| Brand | Honeywell |
| Height | 144mm |
| Length | 200mm |
| Model | TVEZGR-30-000-11-0-000-000000-000 |
| Gross Weight | 2.4kg |
| Width | 144mm |
| Interfaces | USB port as standard for keyboard and mouse |
| Number Of Channels | 3 |
| Measurement Parameters | Current, Resistance, Temperature, Voltage |
| Standards/Approvals | CE |
| Chart Type | Graphical |
Key Features
- The recorder features three input channels for versatile data acquisition.
- Graphical chart type display provides real-time visualization on a 5.7-inch digital colour LCD.
- High accuracy specifications at ±0.2 % and ±0.1 % ensure dependable measurements.
- Industry-standard CE approvals certify compliance for industrial use.
- Compact DIN size with dimensions 200mm length, 144mm width, and 144mm height fits standard installations.
- Resolution of 320 x 240 pixels offers clear graphical representation.
- Equipped with a USB port for keyboard and mouse connectivity facilitating easy operation.
- Weighs 2.4 kg, designed with rugged industrial touch screen interface for swift navigation.
Product Description
Honeywell TVEZGR-30-000-11-0-000-000000-000 is a state-of-the-art 3-channel graphical chart recorder engineered for precise and secure electronic recording of current, resistance, temperature, and voltage data. It replaces traditional 100 mm paper strip chart recorders with a modern digital solution that captures continuous and batch data in an encrypted and tamper-proof format.
This model features a 5.7-inch colour TFT LCD screen with a resolution of 320 x 240 pixels, providing clear and intuitive graphical visualization suitable for complex process monitoring. Its compact DIN size dimensions (200mm length × 144mm width × 144mm height) allow easy panel mounting and seamless integration into existing control systems.
Designed for demanding industrial environments, the recorder includes a CE certification to meet regulatory standards. The unit integrates an industrial-grade rugged touch screen with rapid navigation and health monitoring features enabling preventative maintenance and extended security system functionality.

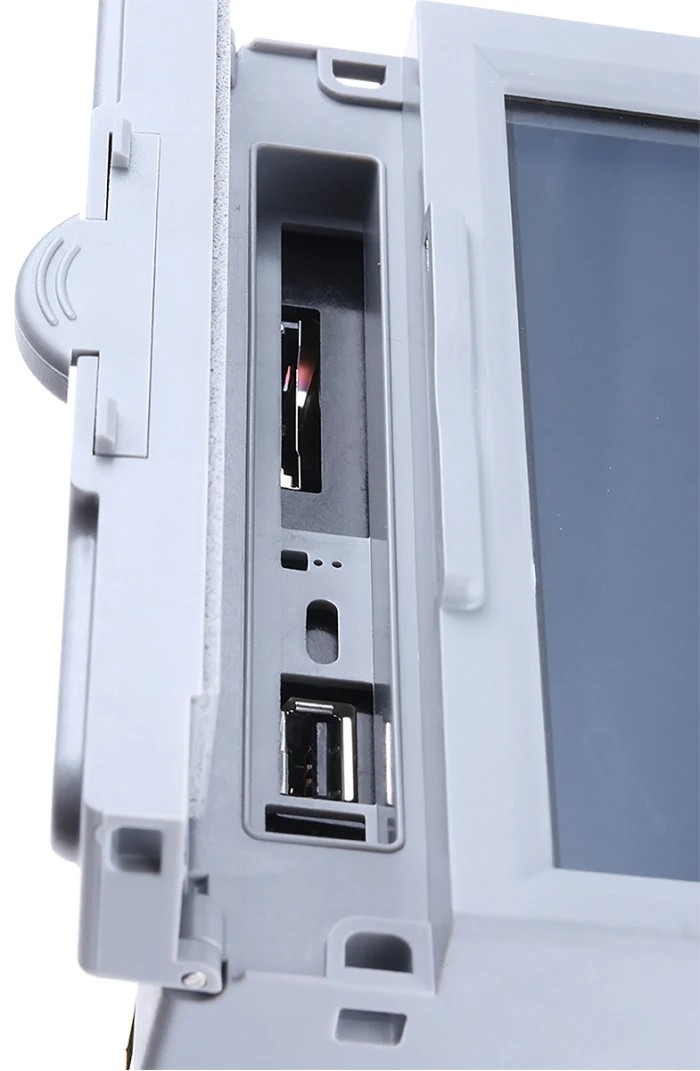

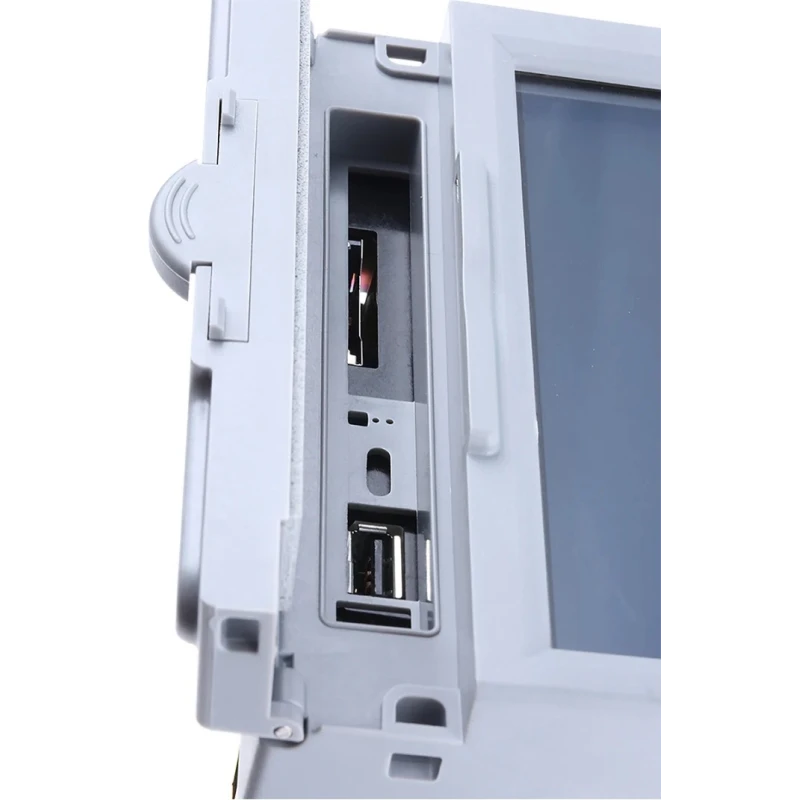

The front-mounted USB port supports connection of keyboards and mice, enhancing operational flexibility. Data storage is managed through 1 GB of onboard non-volatile flash memory along with removable USB storage options. The device's no-moving-parts solid-state design promotes reliability and long service life.
3 input channels supporting current, resistance, temperature, and voltage signals. Encryped data files compatible with TrendManager Pro software, ensuring data integrity and secure analysis. Health Watch features monitor device performance and assist in scheduling maintenance.
Independent chart and logging speeds with rapid data review and replay capabilities. Compact form factor with 2.4 kg weight suitable for laboratory, industrial, manufacturing and HVAC applications.
Honeywell Technologies 43-TV-03-18 3-Channel Graphical Chart Recorder offers an advanced, reliable solution for industrial data acquisition and logging, providing durable operation in sectors including process control, water treatment, and electrical monitoring. Explore more in the EnvMart Chart Recorders category for comprehensive industrial monitoring instruments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Honeywell 3-Channel Graphical Chart Recorder has an accuracy specification of ±0.2 % and ±0.1 %.
This model has dimensions of 200mm in length, 144mm in width, and 144mm in height.
It supports three input channels for measuring current, resistance, temperature, and voltage.
The recorder features a 5.7-inch graphical color TFT LCD display with a resolution of 320 x 240 pixels.
Yes, it is CE certified, indicating compliance with industry standards for safety and performance.
It includes a USB port as standard for connecting keyboards and mice, enhancing operational flexibility.
The Honeywell chart recorder weighs 2.4 kg, making it suitable for various installations.
This model can record current, resistance, temperature, and voltage data.
The no-moving-parts solid-state design promotes reliability and contributes to a long service life.
It features 1 GB of onboard non-volatile flash memory along with options for removable USB storage.
It is suitable for laboratory, industrial, manufacturing, and HVAC applications.
The recorder includes Health Watch features that monitor device performance and assist in scheduling maintenance.
