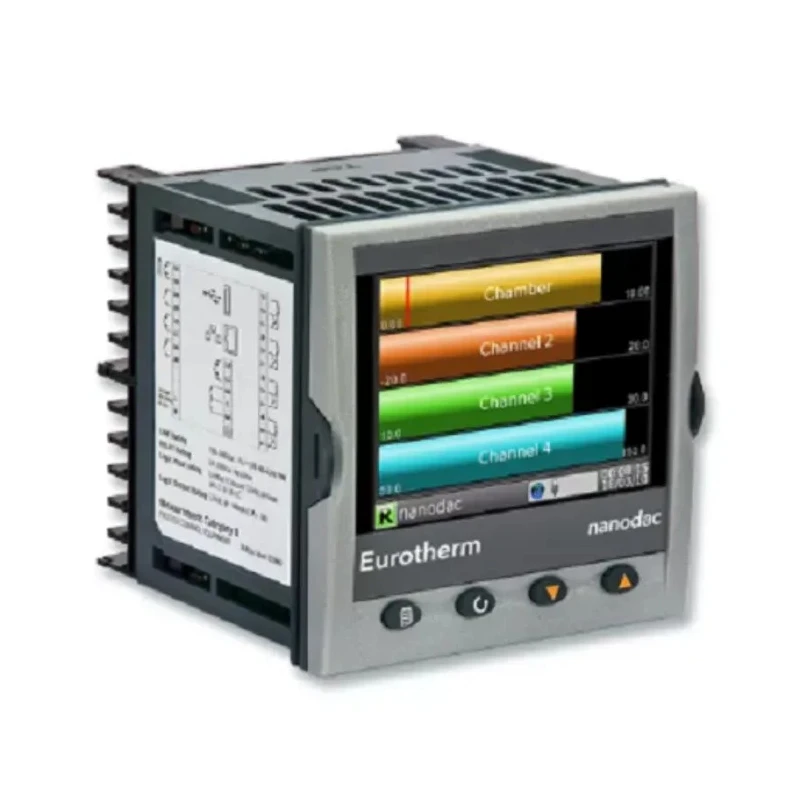

Eurotherm 3-Channel Graphical Graphic Recorder Resistance, Millivolt, Voltage, Current, Temperature NANODAC/VL/C/X/LRR/B

Eurotherm NANODAC/VL/C/X/LRR/B is a high-performance 3-channel graphical graphic recorder designed for precise measurement of resistance, millivolt, voltage, current, and temperature in industrial and laboratory environments. It incorporates advanced Eurotherm PID control algorithms providing reliable process control with 2 control loops, 1 logic output, and 2 relay outputs.

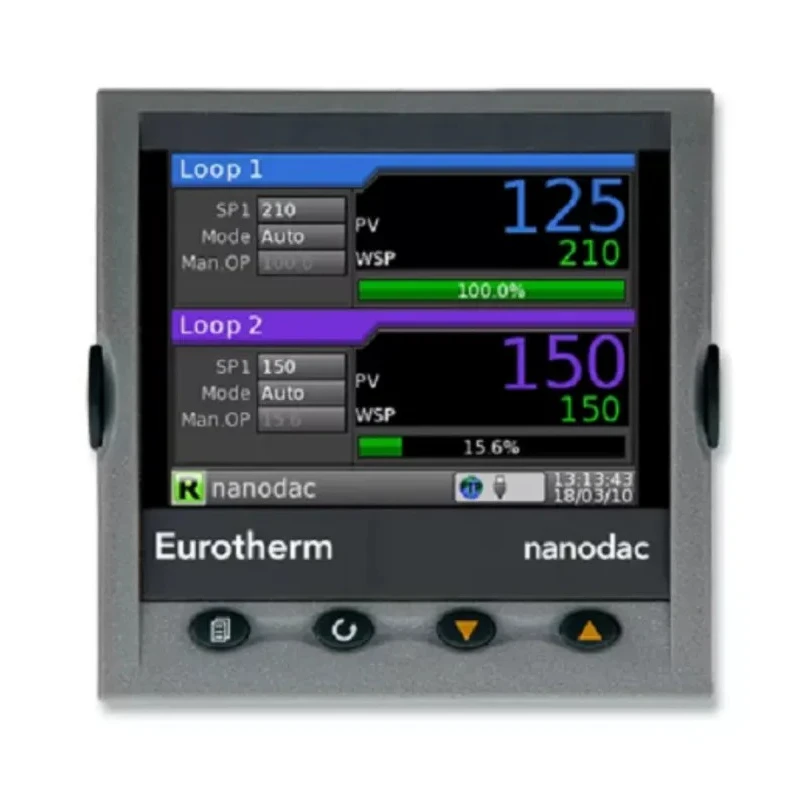

The device features a bright 3.5-inch colour TFT display (320x240 pixels) offering a variety of configurable views such as horizontal and vertical trends, bar graphs, numeric readouts, alarm panel, and control loop statuses, enabling operators to monitor process parameters effectively.

Its tamper-resistant data recording method ensures data integrity for audit compliance. Navigation is facilitated by four push buttons (Page, Scroll, Lower, and Raise), while USB removable storage provides easy data export. The unit samples data at a rate of 8Hz with 50 MB internal storage capacity.

The compact design with dimensions 96mm height, 90mm width, and 96mm length and a weight of 440g makes it suitable for panel mounting in confined spaces. It operates on 24V AC (±10% -15%) at 48-62 Hz or 24V DC (±20% -15%).

Eurotherm NANODAC/VL/C/X/LRR/B complies with EU, UL, CE, and BS EN 61326 standards, assuring safety and quality requirements essential in industrial automation, process control, and laboratory testing applications.

Features a 3.5-inch TFT colour display for clear visualisation of process parameters. Supports tamper-resistant data recording methodology trusted by auditors. Includes four navigation push buttons for ease of operation.

Provides USB removable data storage for convenient data handling. Offers high accuracy universal inputs and a resolution of 0.05 °C. Records data at 8Hz (125ms) sample rate with 50 MB storage capacity. Compact design with dimensions of 96mm x 90mm x 96mm.

Supports multiple configurable display views including trends, bar graphs, and alarm panels. Equipped with 2 control loops, 1 logic output, and 2 relay output options. Complies with EU, UL, CE, and BS EN 61326 standards.

This graphical graphic recorder is ideal for industrial, laboratory, HVAC, manufacturing, water treatment, and commercial process monitoring and control applications. Browse the full range of Eurotherm Chart Recorders and related measurement instruments for enhanced process control solutions at EnvMart.
