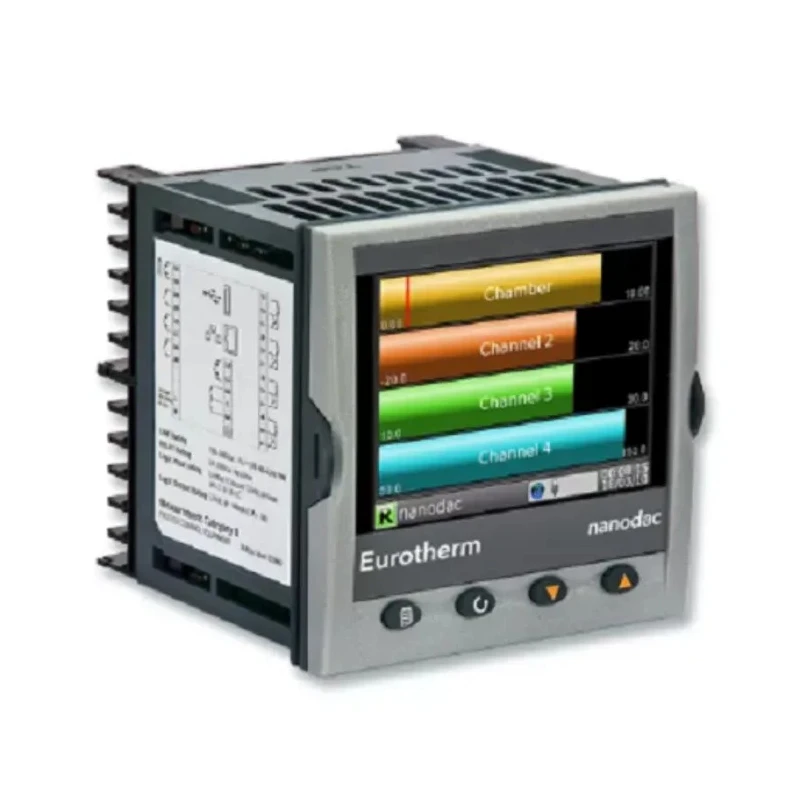

Eurotherm 3-Channel Graphical Graphic Recorder , Temperature, Voltage & Current Measurement NANODAC/VL/X/X/RDD/B
Specifications
| Country of Origin | Poland |
|---|---|
| Resolution | 0.05 °C |
| Brand | Eurotherm |
| Height | 96mm |
| Length | 96mm |
| Model | NANODAC/VL/X/X/RDD/B |
| Gross Weight | 440g |
| Width | 90mm |
| Interfaces | USB removable data storage facility |
| Number Of Channels | 3 |
| Measurement Parameters | Voltage, Millivolt, Temperature, Resistance, Current |
| Standards/Approvals | BS EN 61326, CE, EU, UL |
| Chart Type | Graphical |
Key Features
- Compact design with 96x90x96 mm dimensions and 440g weight.
- Supports three measurement channels for versatile monitoring.
- Features 3.5-inch colour TFT display with configurable views.
- Enables data recording of voltage, millivolt, temperature, resistance, and current parameters.
- USB removable data storage facility for efficient data transfer.
- High accuracy universal inputs with 0.05°C resolution.
- Compliant with BS EN 61326, CE, EU, and UL standards.
- Multi-language support and tamper-resistant data methodology.
Product Description
Eurotherm NANODAC/VL/X/X/RDD/B is a state-of-the-art 3-channel graphical graphic recorder designed for precise monitoring and recording of voltage, millivolt, temperature, resistance, and current parameters in industrial and laboratory applications. The unit accomplishes multi-parameter measurement through universal input channels, offering superior flexibility for complex environments.
Compact 96x90x96 mm enclosure allows for easy integration in control panels and compact installations. Weight of 440g ensures convenient handling and mounting.

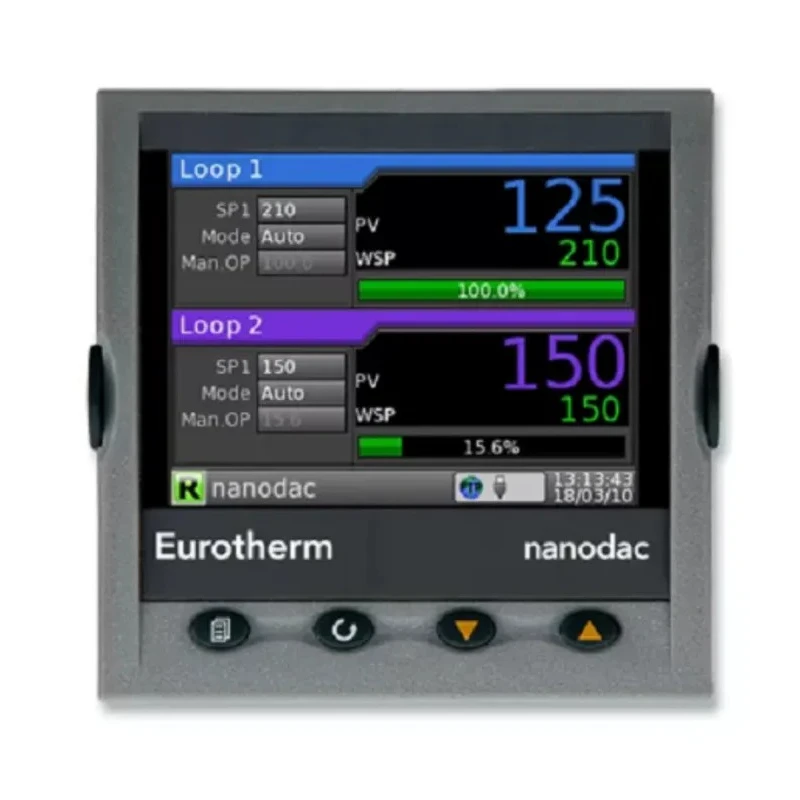

3.5-inch colour TFT display delivers exceptional visualisation of process parameters, with configurable views including horizontal/vertical trends, bar graphs, numeric displays, and alarm panels.
Supports three channel inputs for simultaneous monitoring. Offers high-resolution universal inputs (0.05°C), ideal for temperature and voltage monitoring with a sampling rate of 8Hz (125ms). USB removable data storage facilitates rapid transfer and backup of recorded data.
Tamper-resistant recording protects integrity and is trusted by auditors for compliance. Certified compliance with BS EN 61326, CE, EU, and UL standards ensures reliability and safety in demanding environments.
This graphic recorder is suitable for sectors such as industrial manufacturing, laboratory testing, water treatment monitoring, process control, and quality assurance. Its multi-language support, integrated relay and analog output options, and high data storage capacity (50 MB) make it ideal for advanced data acquisition tasks.
Applications include process monitoring, environmental data logging, laboratory instrumentation, and system diagnostics in industries such as HVAC, energy, water treatment, food processing, and pharmaceutical manufacturing.
The Eurotherm NANODAC/VL/X/X/RDD/B’s robust feature set, compact form factor, and high accuracy make it a reliable solution for organizations seeking precise, secure, and scalable data recording. Explore more chart recorders and process monitoring solutions in EnvMart’s Digital Recorders category. For advanced Eurotherm instrumentation, browse our brand collection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measurement resolution of this model is 0.05 °C, providing high accuracy for temperature monitoring.
It supports three measurement channels, allowing for simultaneous monitoring of multiple parameters.
This unit can record voltage, millivolt, temperature, resistance, and current parameters.
The dimensions are 96mm in height, 90mm in width, and 96mm in length, with a gross weight of 440g.
It features a 3.5-inch colour TFT display that allows for configurable views including trends and numeric displays.
Yes, it includes a USB removable data storage facility for efficient data transfer and backup.
It is compliant with BS EN 61326, CE, EU, and UL standards, ensuring reliability and safety in industrial environments.
The sampling rate of the Eurotherm NANODAC is 8Hz, which corresponds to a sampling interval of 125ms.
It is suitable for applications in industrial manufacturing, laboratory testing, water treatment monitoring, process control, and quality assurance.
It features a tamper-resistant recording methodology that protects data integrity and is trusted for compliance audits.
The Eurotherm NANODAC is manufactured in Poland.
It offers a USB removable data storage interface for easy data management and transfer.
