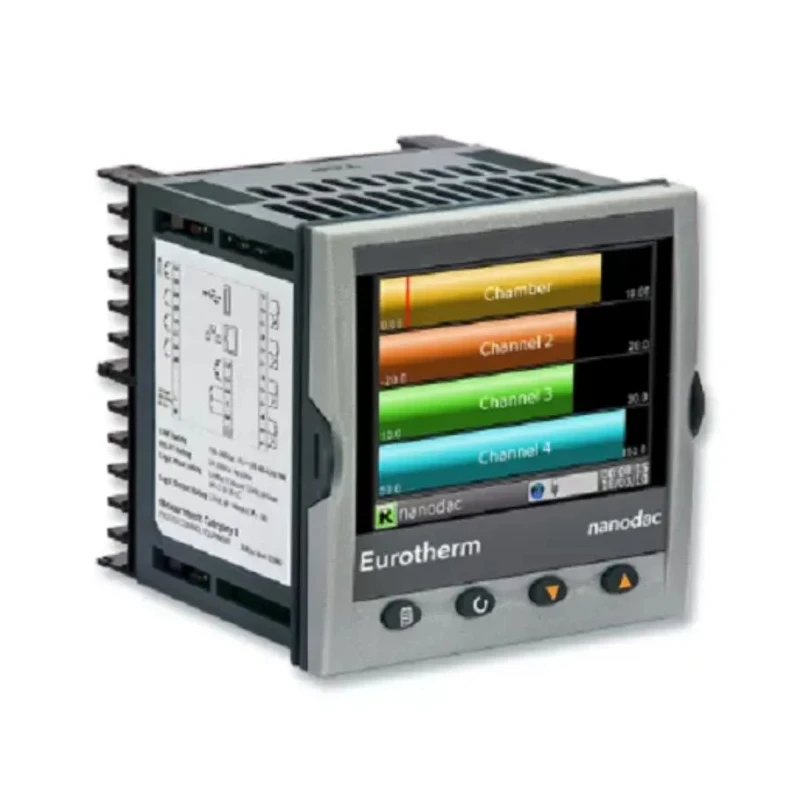

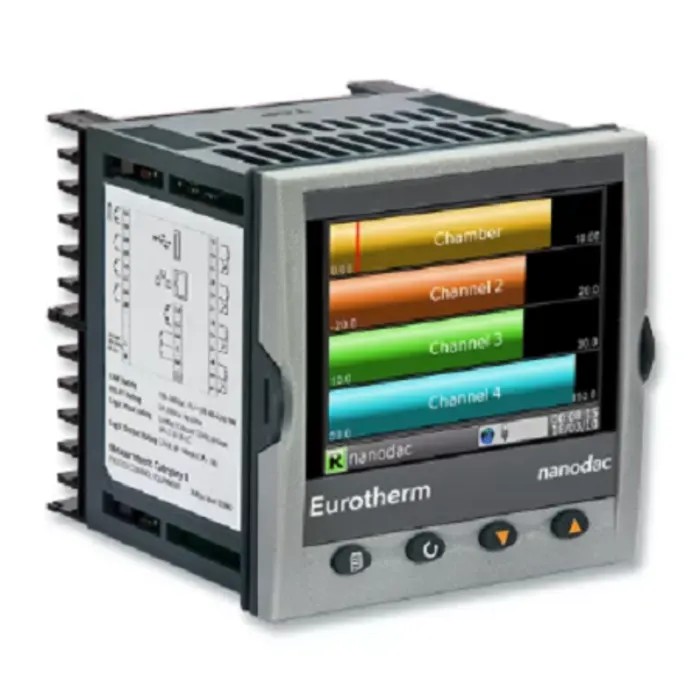

Eurotherm 3-Channel Graphical Graphic Recorder NANODAC/VL/C/X/LRD/B, Millivolt, Current, Voltage, Resistance, Temperature

The Eurotherm NANODAC/VL/C/X/LRD/B is a versatile 3-channel graphical graphic recorder designed for laboratory, process, and industrial environments requiring high-precision data acquisition and visualization of millivolt, current, voltage, resistance, and temperature. Featuring advanced universal inputs, this recorder handles diverse electrical signals, offering comprehensive measurement capabilities for critical applications such as test benches, process control, HVAC analysis, and quality assurance.

Equipped with a high-accuracy recording system, the unit achieves resolutions down to 0.05°C, making it indispensable for processes demanding precise temperature and electrical parameter monitoring. The compact form factor with a 96mm x 96mm x 90mm panel-mount design supports space-constrained installations, and robust build quality ensures durability and reliability.

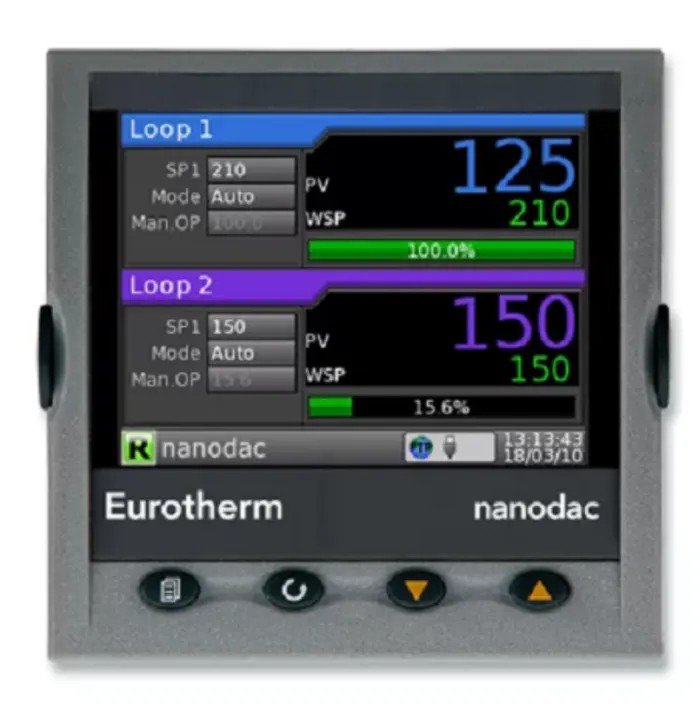

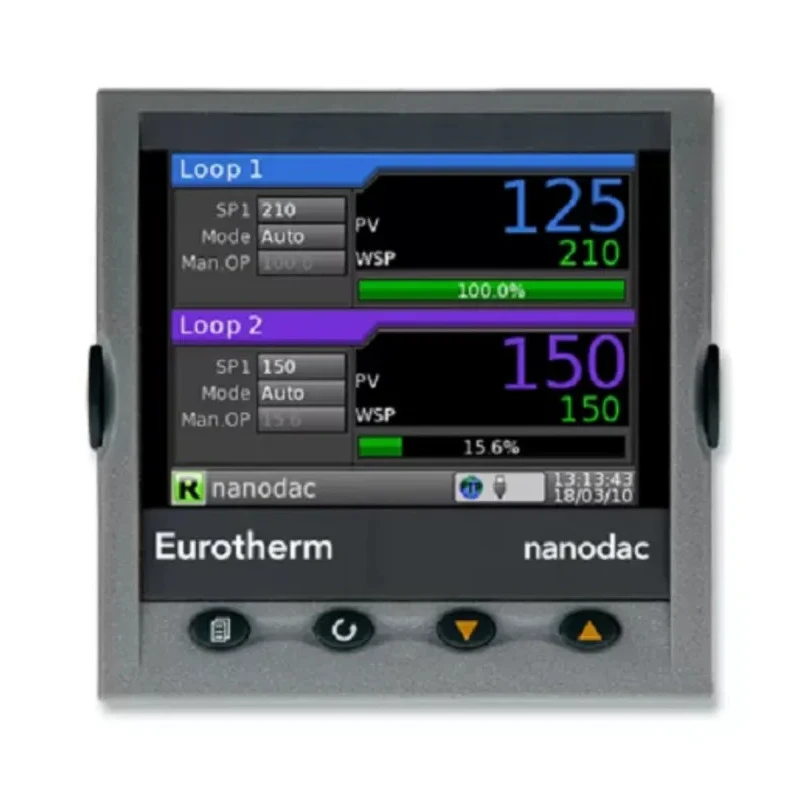

For visualisation, the built-in 3.5” TFT colour display provides clarity across multiple configurable views, including horizontal and vertical trends, bar graphs, numeric panels, alarm indications, and loop controls. Four navigation push buttons (Page, Scroll, Lower, Raise) allow easy manipulation and setup of viewing modes.

Data management is streamlined with the recorder’s USB removable storage facility, enabling efficient archiving and transfer of measurement logs. Up to 50 MB of tamper-resistant storage supports auditor-trusted recording protocols, with data sampled at an 8Hz (125ms) rate for detailed temporal analysis.

The recorder’s output options include logic, relay, and analog (ISO DC) channels, facilitating integration with a variety of automation, alarm, and control systems. Multi-language support and a user-friendly interface enhance accessibility in global operations.

Three independent measurement channels for multiple parameters. Universal inputs for millivolt, current, voltage, resistance, and temperature. Resolution of 0.05°C enables precise monitoring. USB removable storage for convenient data management.

Integrated 3.5” TFT colour display with configurable views. Compact and tamper-resistant design suitable for industrial installations. Logic, relay, and analog output capabilities for flexible system integration. Complies with UL, EU, CE, BS EN 61326 industry standards.

Ideal for laboratory, process control, temperature and electrical monitoring, industrial quality assurance, and HVAC applications. Supports industrial, laboratory, manufacturing, and commercial use cases where reliable multi-parameter data recording is required.
