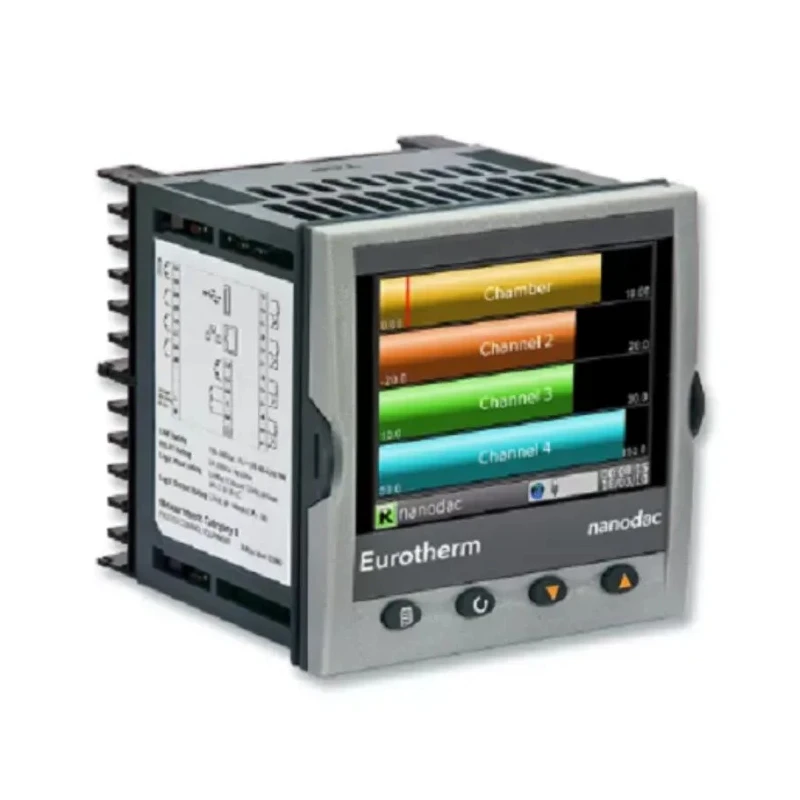

Eurotherm 3-Channel Graphical Graphic Recorder Voltage, Current, Millivolt, Temperature, Resistance NANODAC/VH/X/X/RDD

Eurotherm NANODAC/VH/X/X/RDD is a highly precise 3-Channel Graphical Graphic Recorder designed to measure and record voltage, current, millivolt, temperature, and resistance parameters. Operating on 100-230V AC ±15% at 48-62 Hz without an integrated controller or programmer, it includes one relay and two analog (ISO DC) output options, providing reliable connectivity to external control systems.

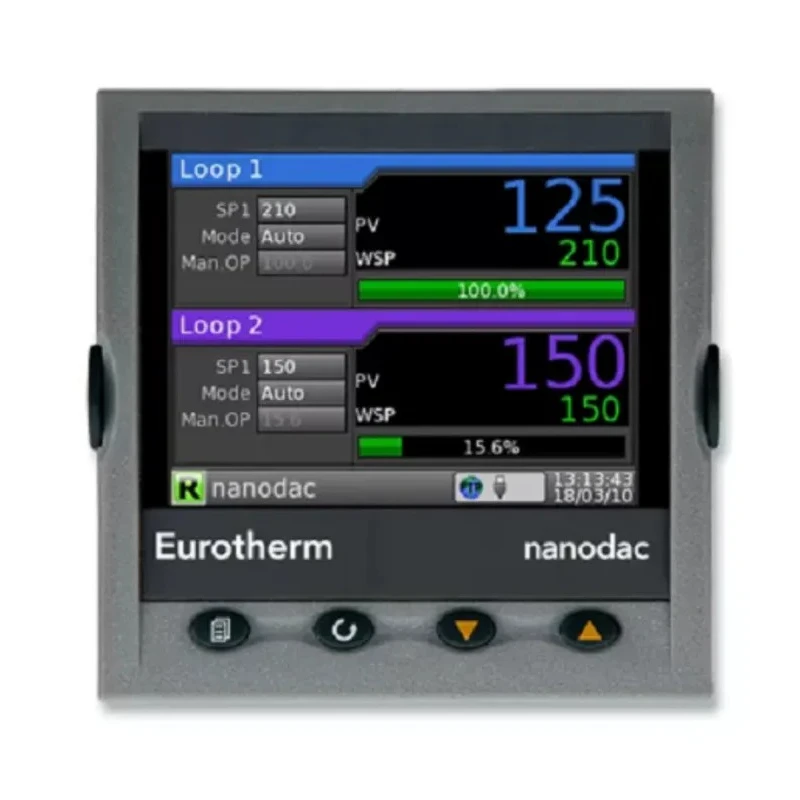

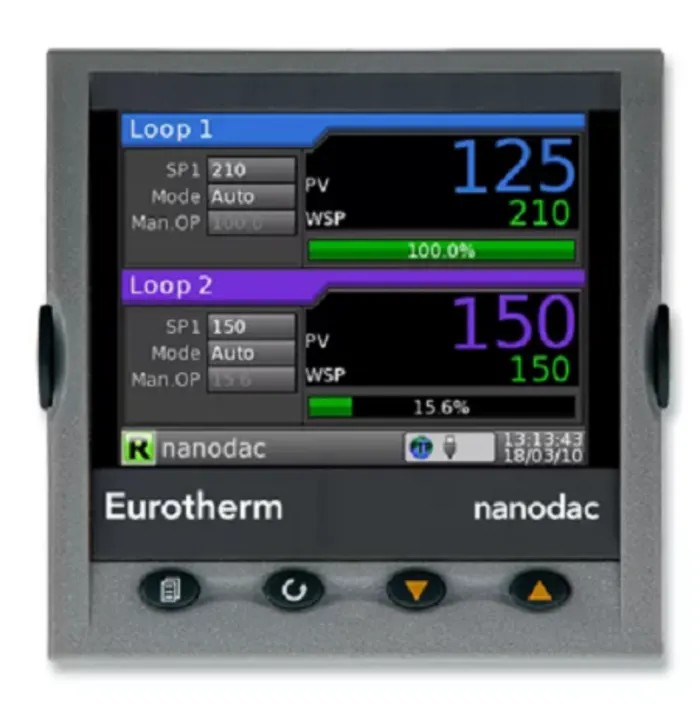

The unit features a 3.5 inch color TFT display with a resolution of 320 pixels by 240 pixels, offering exceptionally clear visualization of process parameters. Various configurable views such as horizontal and vertical trends, bar graphs, numeric displays, alarm panel, alarm status, and control loops enable flexible monitoring tailored to the application’s needs.

Designed with tamper-resistant data recording methodology, the device meets auditing requirements ensuring data integrity. Navigational ease is afforded through four push buttons (Page, Scroll, Lower, and Raise) which facilitate intuitive operation. A USB removable data storage facility enables easy transfer and backup of recorded data, enhancing operational efficiency.

The graphical recorder supports high accuracy universal inputs and provides extensive data storage of 50 MB. It records data at a sample rate of 8 Hz (125 ms) which is ideal for precise and timely monitoring in industrial, laboratory, HVAC, manufacturing, and water treatment settings.

This compact and robust device is compliant with international standards BS EN 61326, EU, UL, and CE, assuring quality and safety. It is made in Poland and weighs approximately 440 grams, with equipment dimensions of 96 mm height, 90 mm width, and 96 mm length.

Features a 3.5 inch color TFT display for clear data visualization. Supports configurable views including trends, bar graphs, alarms, and control loops. Includes tamper-resistant data recording methodology trusted by auditors.

Equipped with USB removable data storage for easy data management. High accuracy universal inputs and 50 MB data storage capacity. Sample data recording rate of 8 Hz for precise monitoring. Multi-language support and compact design for diverse industrial uses.

Complies with BS EN 61326, EU, UL, and CE standards.
