Eurotherm 3-Channel Graphical Graphic Recorder Voltage, Temperature, Resistance, Millivolt, Current NANODAC/VH/X/X/LRD

Eurotherm NANODAC/VH/X/X/LRD is a state-of-the-art 3-channel graphical graphic recorder from Eurotherm, engineered to measure voltage, temperature, resistance, millivolt, and current with high accuracy. It operates on 100-230V AC ±15% at 48-62Hz, making it suitable for a wide range of industrial and laboratory applications.

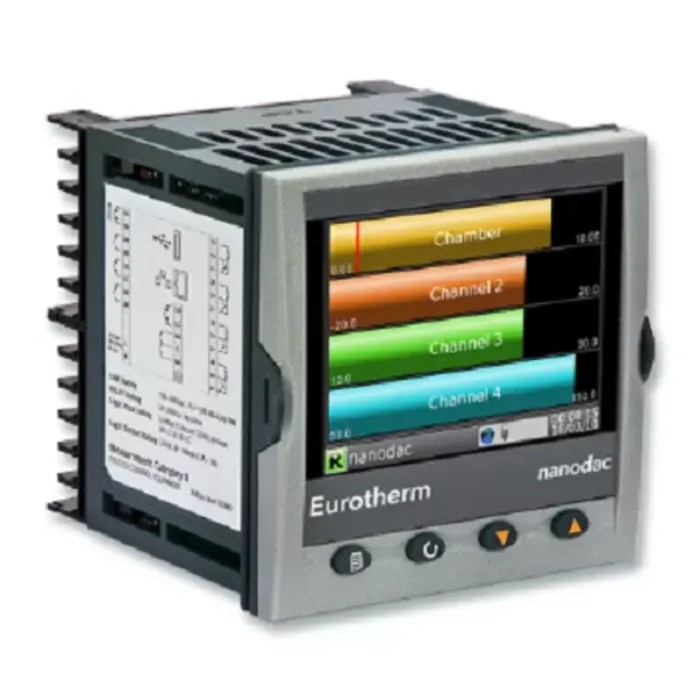

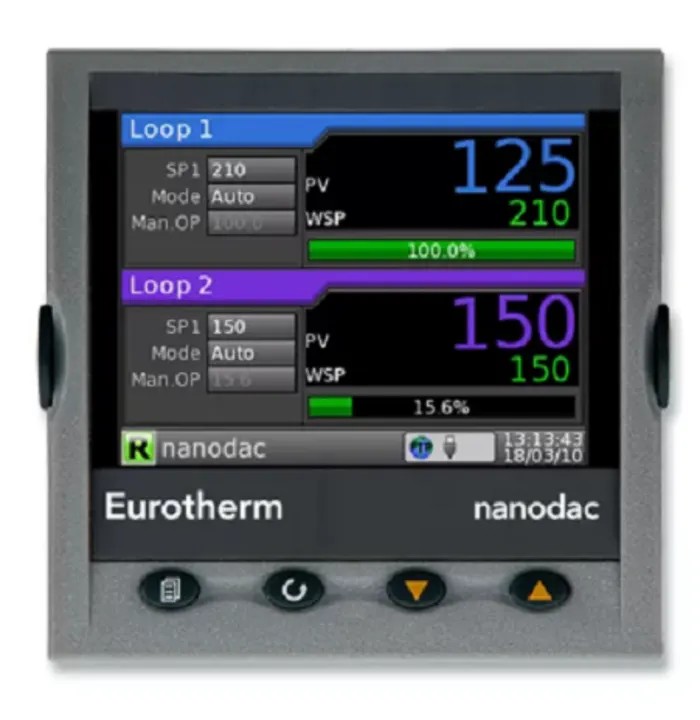

This device incorporates a 3.5 inch TFT colour display featuring 320 pixels wide by 240 pixels high resolution, providing crystal-clear visualization of process parameters. Users can select from various configurable views such as horizontal and vertical trends, bar graphs, numeric displays, alarm panels, alarm status, and control loops to best meet specific application requirements.

Designed with a tamper-resistant data recording methodology, the NANODAC/VH/X/X/LRD ensures data integrity essential for audit compliance. The device operates with four navigation push buttons (Page, Scroll, Lower, and Raise) for intuitive user interaction.

It includes a USB removable data storage facility that allows for easy data transfer and backup. The device offers high accuracy with universal inputs and supports a sample data recording rate of 8Hz (125 milliseconds), enabling detailed and precise monitoring of variables in real-time.

The compact design and multi-language support of this recorder make it adaptable for global industrial applications, including manufacturing process monitoring, HVAC control systems, water treatment plants, and laboratory data acquisition.

Outputs comprise one logic, one relay, and one analog (ISO DC) output, facilitating integration with various control systems and external devices. High accuracy universal inputs for multiple parameters. 3.5 inch TFT display with superior resolution for clear visualization.

USB removable data storage for convenient data management. Tamper-resistant methodology trusted by auditors for compliance. Compact and ergonomic design for space-saving installation. Multi-language support for diverse user environments.

8Hz sample data recording rate for detailed monitoring. Includes 1 logic, 1 relay, and 1 analog output for flexible integration.

This Eurotherm graphical recorder is widely used in Industrial Machines & Instruments, laboratory settings, manufacturing, HVAC, and other sectors requiring reliable and accurate data acquisition and logging.
