Pico Technology High-Resolution Differential Oscilloscope Kit 20 MHz 14-bit Resolution PicoScope 4444 1000 V CAT III kit

Pico Technology PicoScope 4444 1000 V CAT III kit is a high-resolution 20 MHz differential oscilloscope kit designed for precise electrical waveform analysis and multiple simultaneous differential measurements. Featuring a 14-bit resolution, this oscilloscope offers sixteen times more vertical detail compared to standard devices, ensuring accuracy in critical applications.

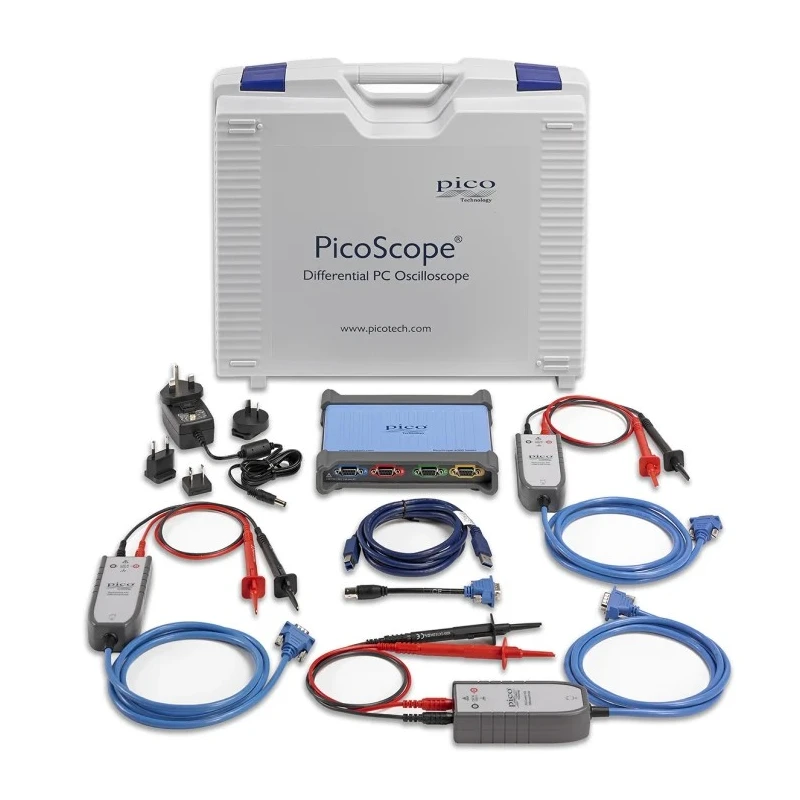

The kit includes three Picoconnect 442 1000 V CAT III passive differential voltage probes with minimal interface boxes for ease of use and a TA271 single-ended D9-BNC adapter. Its intelligent probe interface automatically configures the oscilloscope display to the connected probes, simplifying setup and enhancing efficiency.

With four D9 inputs, the oscilloscope facilitates true differential measurements, allowing safe and accurate signal capture even in non-ground referenced contexts. The deep 256 MS memory and 400 MS/s maximum sampling rate enable comprehensive data acquisition for detailed signal inspection.

This oscilloscope kit features a hardware acceleration engine (HAL3) delivering waveform buffer and navigator capabilities, enhancing user experience in complex measurements. Balanced high-impedance inputs minimize circuit loading, making it suitable for sensitive circuit testing.

Applications include safe measurement of single-phase and three-phase voltages and currents, hybrid and electric vehicle development, motor drive testing, inverters, and power analysis of mobile and IoT devices. The FFT spectrum analyzer function further expands its diagnostic capabilities for frequency domain analysis.

Compliant with international standards EN 61010-1:2010, EN 61326-1:2013, and FCC Part 15 Subpart B, the kit ensures safety and electromagnetic compatibility. Its robust design and advanced features make it a leading choice for industrial, laboratory, automotive, and electronics testing applications.

Explore the full range of oscilloscopes and accessories at EnvMart to find the ideal instruments for your measurement needs. Includes high-resolution differential oscilloscope, three 1000 V CAT III passive probes, and a TA271 single-ended D9-BNC adapter.

Four D9 inputs enable true differential measurements simultaneously. 256 MS deep memory with 14-bit resolution and up to 400 MS/s sampling rate. Intelligent probe interface for automatic configuration of display to probes.

Allows safe, non-ground referenced measurements for industrial circuits and power applications. Supports FFT spectrum analysis for comprehensive signal diagnostics. Certified to meet EN 61010-1:2010, EN 61326-1:2013, and FCC Part 15 Subpart B standards.
