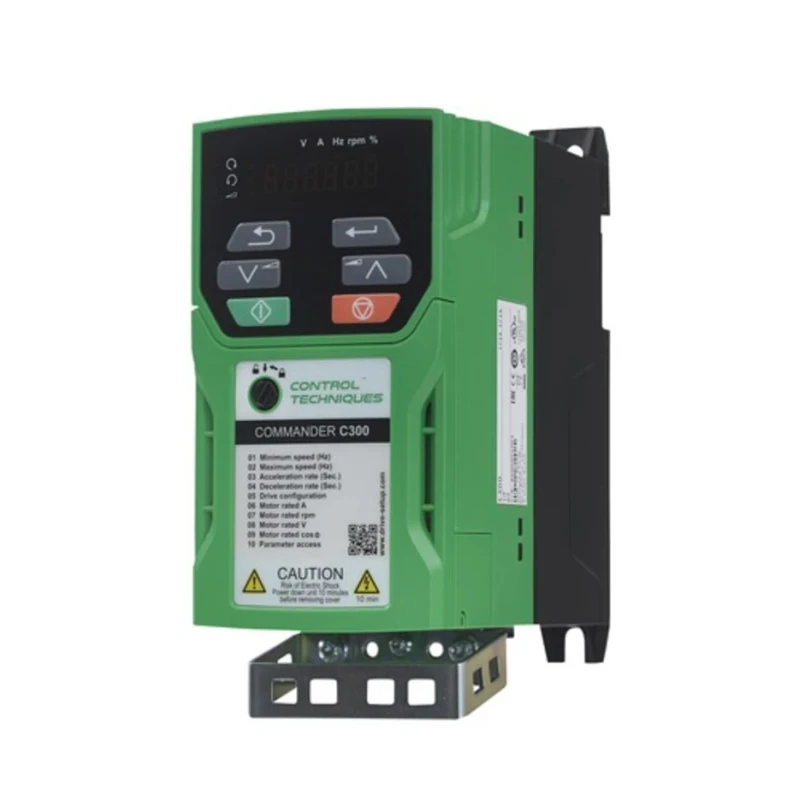

Control Techniques 250 W 1 Phase AC Motor Variable Speed Inverter Drive C300-01200017
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Control Techniques |
| Model | C300-01200017 |
| IP Rating | IP20 |
| Drive Type | Variable Speed |
| Mount Type | Panel |
| Overall Length | 75mm |
| Series | C300 |
| Overall Width | 130mm |
| Power Rating | 250W |
| Maximum Operating Temperature | 40°C |
| Output Frequency | 550Hz |
| Minimum Operating Temperature | -20°C |
| Number of Phases | 1 |
| Maximum Output Current | 1.7A |
| Standards/Approvals | UL, CE, cUL, EU, ISO, RCM, RoHS |
| Maximum Supply Voltage | 240V ac |
| Overall Depth | 160mm |
| Minimum Supply Voltage | 200V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | AC Motor |
Key Features
- Designed for panel mounting with compact dimensions.
- Operates at supply voltage range of 200V to 240V AC.
- Maximum output current rated at 1.7 A suitable for precise motor control.
- Supports output frequencies up to 550 Hz for variable speed applications.
- Equipped with IP20 rating providing basic protection against solid objects.
- Operates reliably within temperature range of -20°C to 40°C.
- Complies with UL, CE, cUL, EU, ISO, RCM, and RoHS standards ensuring safety and environmental compliance.
- Includes energy saving features and supports Dual Safe Torque Off for enhanced safety.
Product Description
Control Techniques C300-01200017 is a high-performance inverter drive designed to deliver 250 W power in a compact panel mountable format. It operates on a single-phase AC supply between 200V and 240V with a maximum output current of 1.7 A, optimized for variable speed control of AC motors.
This inverter drive supports output frequencies up to 550 Hz, allowing precision speed adjustments necessary for various industrial and commercial applications. Its IP20 ingress protection rating ensures safety against accidental contact with internal components and protection from solid foreign bodies.
The drive functions reliably within an ambient temperature range from -20°C to 40°C, suitable for diverse operating environments. It features the latest energy-saving technologies and Dual Safe Torque Off (STO) functionality, making it energy-efficient and compliant with modern safety standards.
Manufactured in the United Kingdom, the C300 series inverter drive carries multiple certifications including UL, CE, cUL, EU, ISO, RCM, and RoHS, attesting to its quality and environmental friendliness. The product's robust and reliable design makes it ideal for various industrial automation, manufacturing, HVAC, and process control scenarios requiring variable speed control of AC motors.
Designed for panel mounting with compact overall dimensions of 75 mm length, 130 mm width, and 160 mm depth. Supports AC motors with variable speed control capabilities. Provides up to 180% overload capacity suitable for high torque demand applications.
Equipped with onboard PLC functionality for straightforward installation and commissioning. Enables easy motor pairing and performance control for optimized operation. Incorporates multiple plug-in options for advanced control integration.
Energy-saving and environmentally conscious design aligned with sustainability goals. Extensively used in industrial, laboratory, manufacturing, HVAC, and process control applications.
This inverter drive belongs to the C300 series offering simple operation by setting just four parameters to get started. Its design prioritizes user convenience, performance, safety, and compliance for reliable motor speed control in demanding environments.
Explore more Control Techniques products and Inverter Drives at EnvMart for diverse industrial automation needs.
