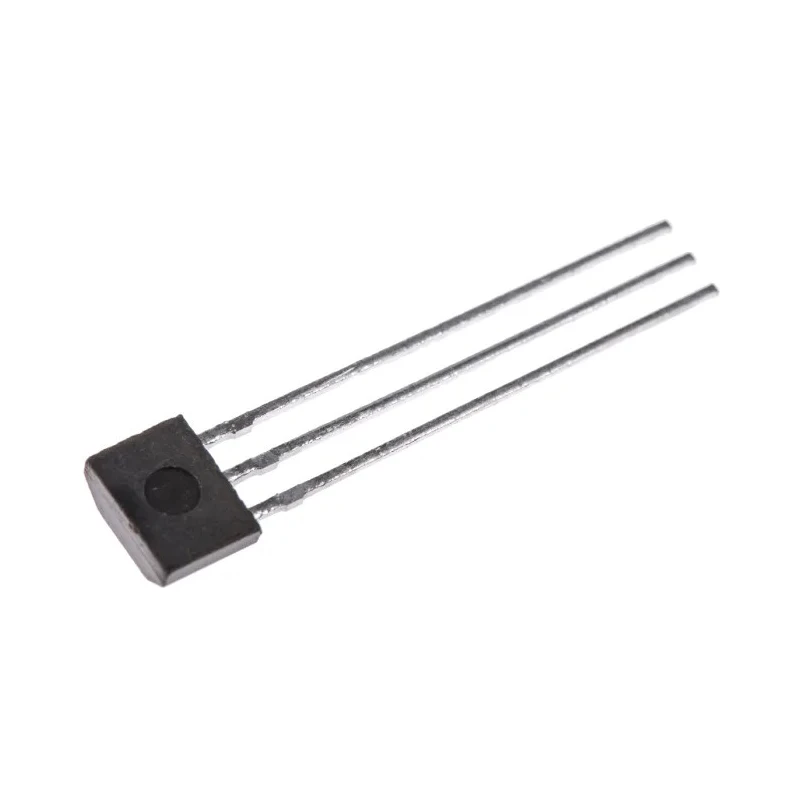

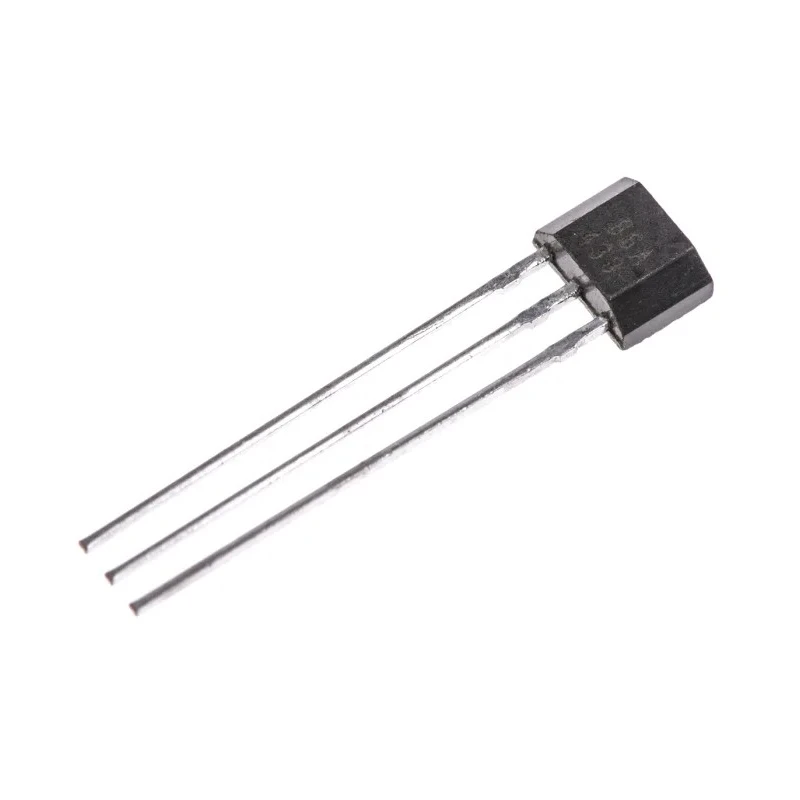

Honeywell Surface Digital Position Sensor 3.8 V - 30 V, Hall Effect, Latch, TO-92, 3-Pin SS466A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Honeywell |
| Height | 3mm |
| Length | 4.06mm |
| Model | SS466A |
| Technology | Digital |
| Sensor Type | Hall Effect Sensors |
| Width | 1.57mm |
| Mount Type | Surface |
| Series | SS400 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-92 |
| Minimum Operating Temperature | -40°C |
| Interface Type | IC |
| Pin Count | 3 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 3.8V |
| Supply Current | 20mA |
| Magnetic Type | Latch |
| Equivalent latching hall effect switchBrand | Allegro Microsystems |
| SS413A Honeywell, Bipolar Hall Effect Sensor, 3-PinBrand | Honeywell |
Key Features
- Operates from a supply voltage range of 3.8 V to 30 V, suitable for low- and high-voltage circuits.
- Latch magnetic operation ensures stable binary output for reliable position sensing.
- Provides digital IC-level interface for easy integration with PCB assemblies.
- Rated for operation at temperatures from -40°C to 150°C, enabling deployment in demanding environments.
- Compact TO-92 package is designed for surface mounting and through-hole PCB placement.
- Hall effect sensor technology delivers contactless magnetic detection.
- 3 electrical pins allow straightforward digital connectivity in control systems.
Product Description
Honeywell SS466A Surface Digital Position Sensor is a compact, IC-based position sensor designed for high-performance magnetic detection in electronic and electromechanical assemblies. Featuring advanced Hall effect technology, this digital sensor provides contactless detection of position or motion events, making it ideal for automation, industrial, and instrumentation applications.
Operating within a supply voltage range from 3.8 V to 30 V, the SS466A offers wide compatibility with both low- and high-voltage systems. Its latch magnetic mechanism enables discrete digital output states based on magnetic threshold crossing, maintaining the output until the opposing field resets the device. This ensures robust binary position feedback for motor-control, actuator end-of-travel, and proximity applications.
Designed for surface mounting, the sensor is supplied in a TO-92 package with three pins, simplifying PCB integration and accommodating through-hole lead spacing. The device is rated for continuous operation in extreme temperatures from -40°C up to 150°C, supporting installation in industrial and automotive environments requiring durability.
The SS466A supports a supply current of 20 mA, minimizing drive requirements and power consumption within control loops. Its digital interface is compatible with standard IC logic levels, facilitating seamless communication with controllers and automation equipment.
Typical use cases include position feedback in motor-control assemblies, end-of-travel detection in actuators, proximity switching in automation systems, and magnetic sensing in instrumentation panels. Its reliability and versatility make it suitable for manufacturing, laboratory, and commercial control systems.
Key features of Honeywell SS466A Surface Digital Position Sensor include latch magnetic operation, wide voltage range, extended temperature tolerance, and compact TO-92 form factor, ensuring robust performance in challenging environments.
Explore the full range of industrial sensors and automation solutions in the EnvMart Electronics & Electricals category, and discover Honeywell's advanced sensor technologies for your applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 3.8 V to 30 V, making it suitable for both low- and high-voltage circuits.
It is rated for continuous operation in temperatures ranging from -40°C to 150°C, allowing deployment in demanding environments.
The SS466A features three pins and is designed for surface mounting, accommodating through-hole PCB placement.
This unit utilizes Hall effect technology, providing contactless magnetic detection for position sensing.
The sensor supports a supply current of 20 mA, which minimizes drive requirements and power consumption.
It comes in a compact TO-92 package, which is designed for easy integration into PCB assemblies.
It offers a digital IC-level interface, ensuring straightforward connectivity in control systems and easy integration with automation equipment.
Typical use cases include position feedback in motor-control assemblies, end-of-travel detection in actuators, and proximity switching in automation systems.
The maximum supply voltage for this model is 30 V, allowing compatibility with various systems.
Yes, the sensor features a latch magnetic mechanism that maintains the output state until the opposing magnetic field resets it.
The dimensions of the SS466A are 3 mm in height, 4.06 mm in length, and 1.57 mm in width.
The Honeywell SS466A is manufactured in India, as indicated by its country of origin.
