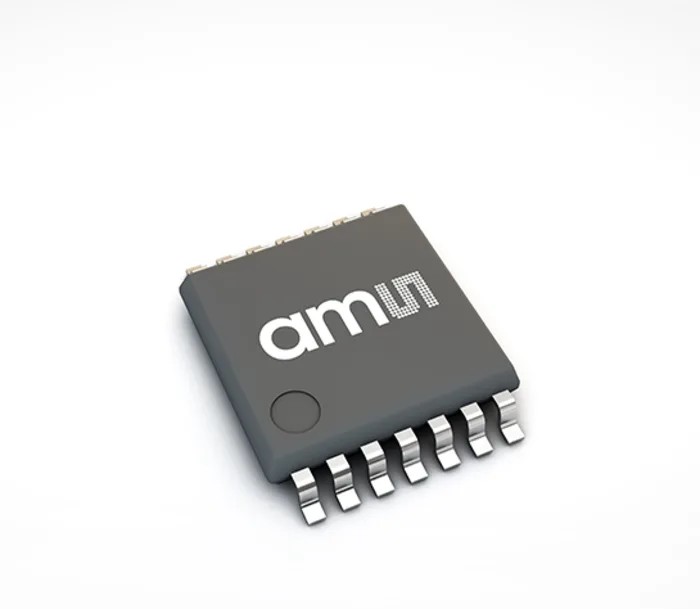

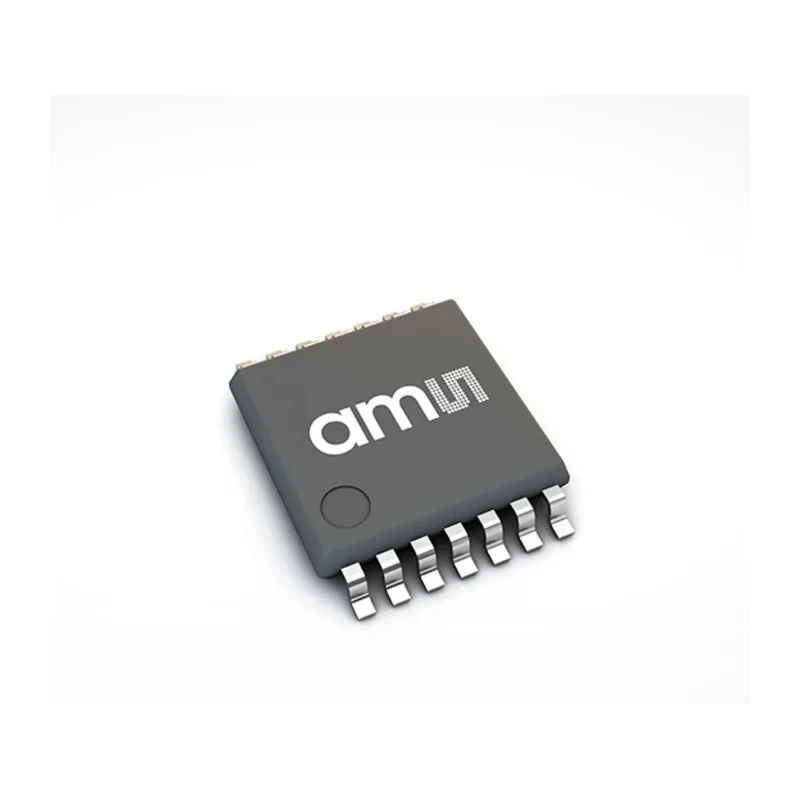

ams OSRAM 1 Axis Surface Hall Effect Position Sensor 300mV to 7V, SPI, PWM, UVW Interface, TSSOP 14-Pin AS5147P-HTSM
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | ams OSRAM |
| Response time | 110μs |
| Height | 1.2mm |
| Length | 5mm |
| Model | AS5147P-HTSM |
| Technology | CMOS |
| Sensor Type | Position Sensor |
| Width | 6mm |
| Mount Type | Surface |
| Series | AS5147P |
| Maximum Operating Temperature | 150°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number of axis | 1 |
| Interface Type | SPI, PWM, UVW |
| Standards/Approvals | AEC-Q100, ISO26262 |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 Grade 0 |
| Maximum Supply Voltage | 7V |
| Minimum Supply Voltage | 300mV |
| Supply Current | 15mA |
| Magnetic Type | Bipolar |
Key Features
- Utilizes CMOS technology for reliable position sensing over a single axis.
- Features SPI, PWM, and UVW interface types for flexible connectivity.
- Packaged in a TSSOP 14-pin surface mount form factor.
- Operates reliably in temperature range from -40°C to 150°C.
- Supplies a 14-bit core resolution with integrated dynamic angle error compensation.
- Designed for automotive and industrial applications with AEC-Q100 Grade 0 certification.
- Provides self-diagnostics and robust stray magnetic field immunity.
- Compact device dimensions of 5mm length, 6mm width, and 1.2mm height.
Product Description
ams OSRAM AS5147P-HTSM is a high-resolution 1 axis surface Hall effect position sensor designed for precise rotary angle measurement across a complete 360-degree range. Operating with a minimum supply voltage of 300mV and maximum of 7V, this CMOS based sensor supports a variety of interface types including SPI, PWM, and UVW signals, making it versatile for integration in automotive, industrial, and motion control applications.
The device is packaged in a compact TSSOP 14-pin surface mount format with dimensions 5mm (L) x 6mm (W) x 1.2mm (H), allowing for streamlined PCB implementations. It can operate reliably within a wide temperature range from -40°C to 150°C, meeting stringent automotive AEC-Q100 Grade 0 standards and ISO26262 safety compliance.
Key features include a 14-bit resolution core and integrated dynamic angle error compensation (DAEC) that ensures minimal latency and high measurement accuracy even under high speed rotation up to 28,000 rpm. The robust design actively suppresses interference from homogeneous external stray magnetic fields, improving reliability in harsh environments.
Additional benefits include self-diagnostic mechanisms that support safety-critical applications, making this sensor ideal for automotive steering and industrial robotics. The AS5147P-HTSM sensor is produced in Austria, reflecting high manufacturing quality and automotive-grade reliability.
CMOS technology enabling precise single-axis position sensing. Multiple interface protocols supported: SPI, PWM, UVW. Compact TSSOP 14-pin package for easy mounting. Wide operating temperature range: -40°C to 150°C. Automotive certified with AEC-Q100 Grade 0 and ISO26262 compliance.
High-speed operation up to 28 krpm with 14-bit resolution. Integrated dynamic angle error compensation for near-zero latency. Robust against stray magnetic field interference. Self-diagnostic functions for safety applications.
This sensor is well-suited for industrial, automotive, manufacturing, and laboratory instrumentation applications requiring highly accurate rotary position feedback. Explore more Hall Effect Sensors and motion sensor ICs for specialized industrial electronic component solutions at EnvMart.
