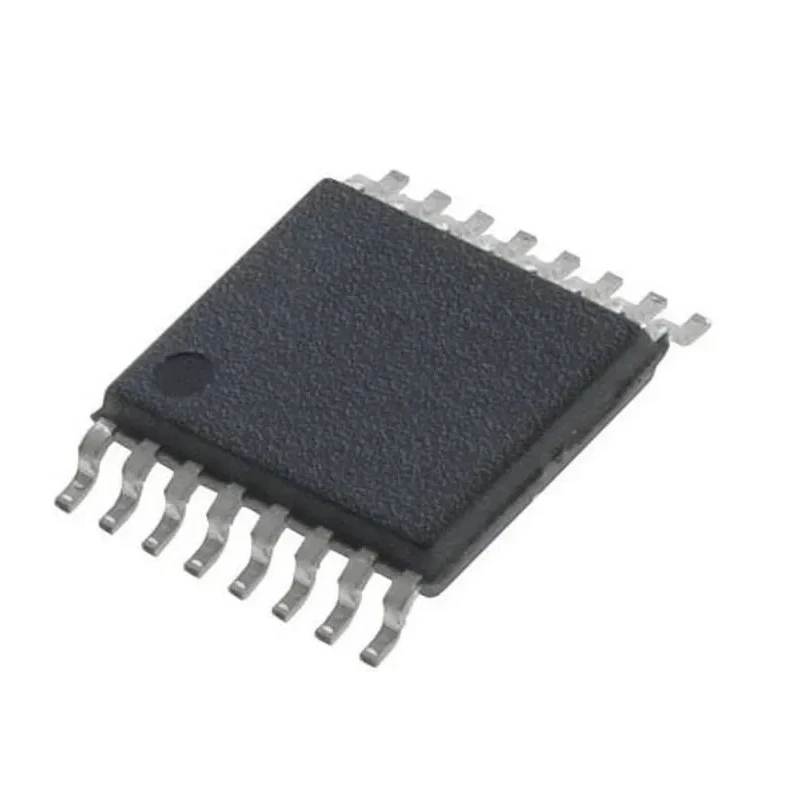

ams OSRAM 1 Axis Surface Hall Effect Position Sensor 3.3V to 5V, SSI, PWM Interface, SSOP 16-Pin AS5040-ASST

ams OSRAM AS5040-ASST is a high-precision 1 Axis Surface Hall Effect Position Sensor designed for accurate angular measurement applications. It operates at a minimum supply voltage of 3.3V up to 5V and utilizes spinning current Hall technology combined with integrated Hall elements, analog front end, and digital signal processing in a robust SSOP 16-pin package. This sensor delivers reliable contactless measurement over a full 360-degree revolution, making it ideal for automotive, industrial, and robotics applications.

The sensor supports SSI and PWM interface types for versatile digital outputs. It features a low supply current of 21mA and a fast response time of 50ms. The temperature operating range from -40°C to 125°C and compliance with AEC-Q100 Grade 1 make it suitable for harsh environments and automotive-grade use.

With a bipolar magnetic type and user-programmable options for resolution, pole pairs, and zero position, the AS5040-ASST sensor provides flexible integration for precision control systems. The compact SSOP package measures 6.2 mm in length, 5.3 mm in width, and 5.3 mm in height, enhancing ease of mounting on surface boards. Manufactured in Austria, this high-reliability sensor is designed for sectors including industrial automation, laboratory instruments, HVAC controls, and commercial machinery.

Provides contactless high-resolution rotary position encoding over 360 degrees. Utilizes spinning current Hall technology for accurate sensing. Equipped with a 16-pin SSOP package for surface mounting. Supports user-programmable resolution, pole pairs, and zero position.

Operates reliably between -40°C and 125°C operating temperatures. Supplies low current consumption at 21mA enhancing efficiency. Complies with automotive-grade AEC-Q100 Grade 1 standards. Compact dimensions of 6.2 mm length, 5.3 mm width, and height.

Designed and manufactured in Austria ensuring high quality.

This ams OSRAM AS5040-ASST 1 Axis Surface Hall Effect Position Sensor is ideal for industrial, automotive, manufacturing, and laboratory instrumentation uses requiring precise position sensing and robust performance. Explore more sensor solutions and technical products in the Sensors category at EnvMart.
