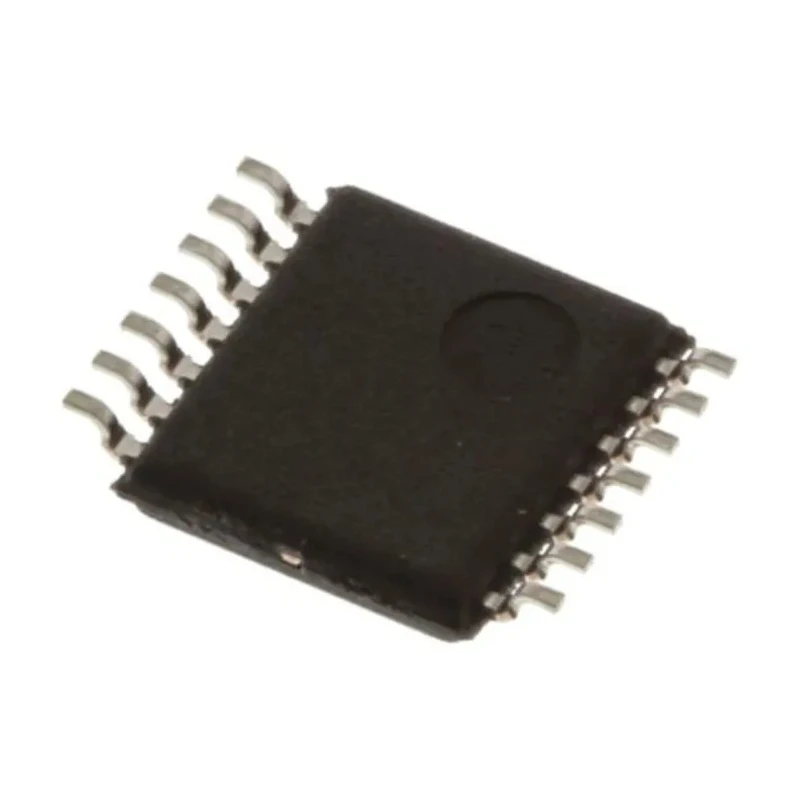

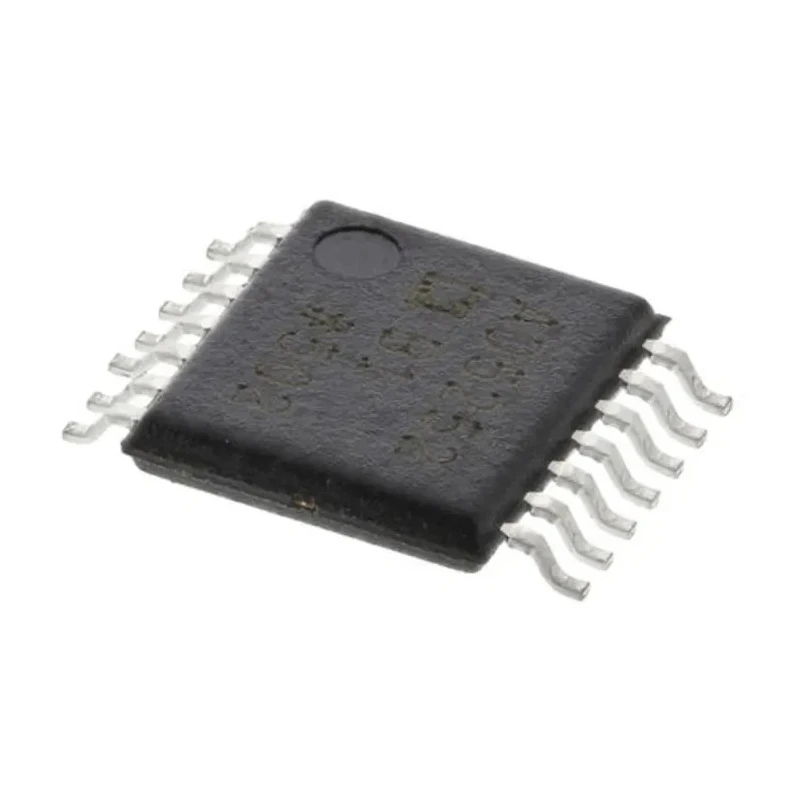

ams OSRAM 1 Axis Surface Hall Effect Sensor 3 V to 5.5 V PWM UVW SPI Interface TSSOP 14-Pin AS5047D-ATSM
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | ams OSRAM |
| Response time | 110μs |
| Height | 1.05mm |
| Length | 5.1mm |
| Model | AS5047D-ATSM |
| Technology | CMOS |
| Sensor Type | Hall Effect Sensors |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | AS5047D |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number of axis | 1 |
| Interface Type | PWM, UVW, SPI |
| Standards/Approvals | AEC-Q100-004, AEC-Q100-002, IPC/JEDEC J-STD-020 |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100-004, AEC-Q100-002 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| Supply Current | 15mA |
| Magnetic Type | Axis |
| Independent output interfaces | SPI, ABI, UVW, PWM |
Key Features
- Provides precise absolute rotary position sensing over 360 degrees.
- Incorporates 14-bit core resolution with 11-bit incremental pulse counting.
- CMOS technology offers robust and stable sensor performance.
- Features AEQ-Q100-004 and AEC-Q100-002 automotive standards for reliability.
- Wide operating temperature range from -40°C to 125°C.
- Low supply current consumption of 15 mA ensures energy efficiency.
- Compact surface mount TSSOP package with 14 pins measuring 5.1 mm by 4.5 mm.
- Includes programmable zero position and multiple pulse per revolution options.
Product Description
ams OSRAM AS5047D-ATSM is a high-resolution 1-axis surface Hall Effect Sensor designed for precise absolute angle measurement over a full 360-degree rotation. Operating within a supply voltage range of 3 V to 5.5 V, this sensor features CMOS technology enhancing its robustness and signal integrity in demanding environments.
The sensor integrates a 14-bit magnetic rotary position core and supports ABI programmable decimal and binary pulse counts, ranging from 8 to 512 pulses per revolution, making it highly versatile for various motion detection applications. It offers independent output interfaces including SPI, PWM, UVW, and ABI signals for flexible integration with control systems.
Encased in a compact 14-pin TSSOP surface mount package (5.1 mm length, 4.5 mm width, 1.05 mm height), the device complies with automotive standards AEC-Q100-004 and AEC-Q100-002, ensuring reliability in automotive and industrial infrastructures. It maintains consistent performance over an extended temperature range from -40°C to +125°C, suitable for harsh working conditions.
Typical applications include industrial motor position sensing, robotics, HVAC system controls, and automotive steering and pedal position monitoring. The device’s low current consumption of 15 mA reduces power demand, suitable for battery-powered or energy-sensitive setups.
The AS5047D-ATSM's programmable zero position and real-time dynamic angle error compensation improve control accuracy. Its compact sizing and multiple interfaces make it adaptable for embedded systems requiring precise magnetic rotary position sensing.
Provides precise absolute rotary position sensing over 360 degrees. Incorporates 14-bit core resolution with 11-bit incremental pulse counting. CMOS technology offers robust and stable sensor performance. Features AEQ-Q100-004 and AEC-Q100-002 automotive standards for reliability.
Wide operating temperature range from -40°C to 125°C. Low supply current consumption of 15 mA ensures energy efficiency. Compact surface mount TSSOP package with 14 pins measuring 5.1 mm by 4.5 mm. Includes programmable zero position and multiple pulse per revolution options.
Designed for industrial, automotive, and motion control applications. Explore more sensors and components from ams OSRAM on EnvMart for your industrial and commercial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 3 V to 5.5 V.
It incorporates a 14-bit core resolution along with 11-bit incremental pulse counting.
It supports independent output interfaces including SPI, PWM, UVW, and ABI signals.
The sensor operates effectively within a wide temperature range from -40°C to +125°C.
It is encased in a compact TSSOP package measuring 5.1 mm in length, 4.5 mm in width, and 1.05 mm in height.
The AS5047D-ATSM has a low supply current consumption of 15 mA.
It complies with AEC-Q100-004 and AEC-Q100-002 automotive standards for reliability.
The response time of this sensor is 110 μs.
Typical applications include industrial motor position sensing, robotics, HVAC system controls, and automotive steering and pedal position monitoring.
This model is designed to measure 1 axis.
It utilizes CMOS technology, which enhances its robustness and signal integrity.
Yes, it includes a programmable zero position and multiple pulse per revolution options for enhanced versatility.
