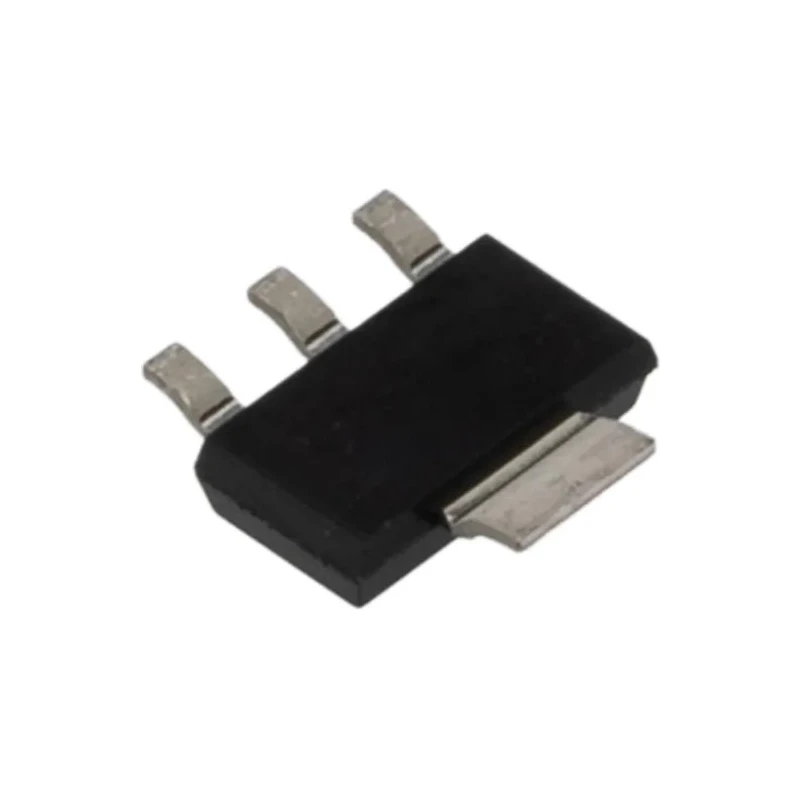

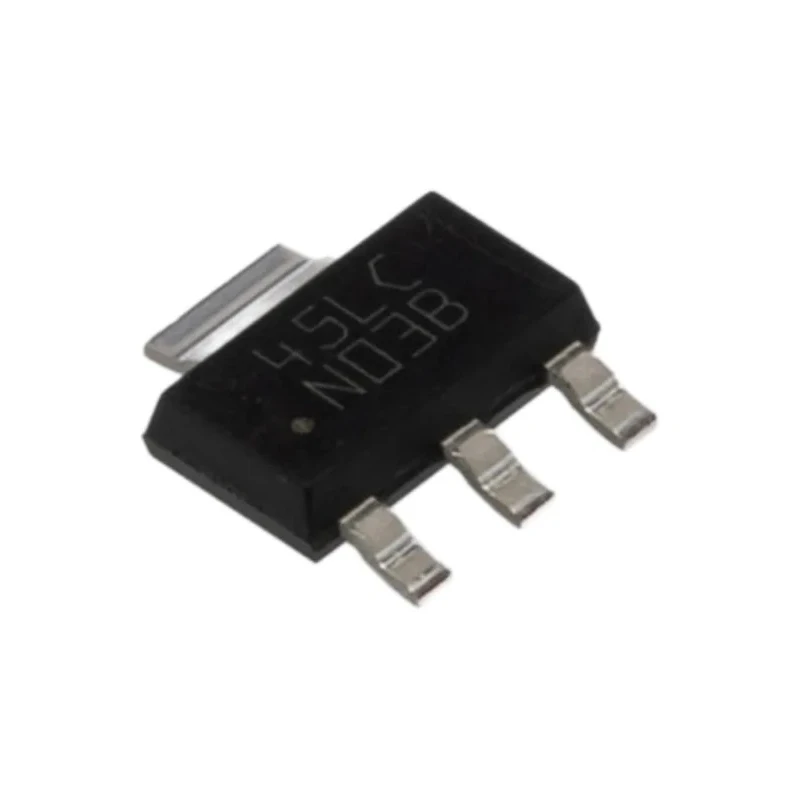

Texas Instruments Adjustable Low Dropout Linear Voltage Regulator 1A 15V SOT-223 4-Pin LM1117IMP-ADJ/NOPB

Texas Instruments LM1117IMP-ADJ/NOPB is an adjustable low dropout (LDO) linear voltage regulator designed for efficient power management in various electronic applications. Packaged in a compact SOT-223 4-pin surface-mount format, this regulator supports a maximum load current of 1 Amp and can handle input voltages up to 15 Volts.

The device offers a positive polarity configuration with low dropout voltage, making it suitable for designs requiring efficient voltage regulation with minimal power dissipation. With a low quiescent current of 5mA, it ensures minimal power consumption during operation, thereby enhancing overall system efficiency.

Operating reliably up to 125 degrees Celsius, the LM1117IMP-ADJ/NOPB is ideal for use in demanding environments such as industrial controls, embedded systems, and power supply circuits. Its excellent line voltage regulation and high Power Supply Rejection Ratio (PSRR) maintain stable output amidst input voltage fluctuations and noise.

The compact 6.5mm length, 3.56mm width, and 1.6mm height of the SOT-223 package allow for space-saving circuit board designs. The four-pin layout simplifies connection and integration in surface-mounted applications.

This voltage regulator series is widely used in devices requiring consistent voltage output, including communication equipment, industrial instruments, and laboratory equipment. Though not compliant with automotive standards, its robust design makes it a dependable component in conventional electronics.

Compact SOT-223 surface-mount package for space-efficient applications. Supports load currents from 1A to 2A in the LM1117 series. Low dropout voltage enhances power saving. Low quiescent current of 5mA reduces energy consumption.

Maximum operating temperature up to 125°C ensures resilience. Stable output with excellent line regulation and PSRR. Four-pin positive polarity configuration for versatile use. Suitable for industrial, laboratory, and embedded system applications.

Adjustable output voltage allows flexible design adaptation.

This product is categorized under Power Management ICs for voltage regulation applications. The LM1117IMP-ADJ/NOPB by Texas Instruments is sourced as a new component manufactured in India, backed by the brand’s legacy of quality semiconductor products.
