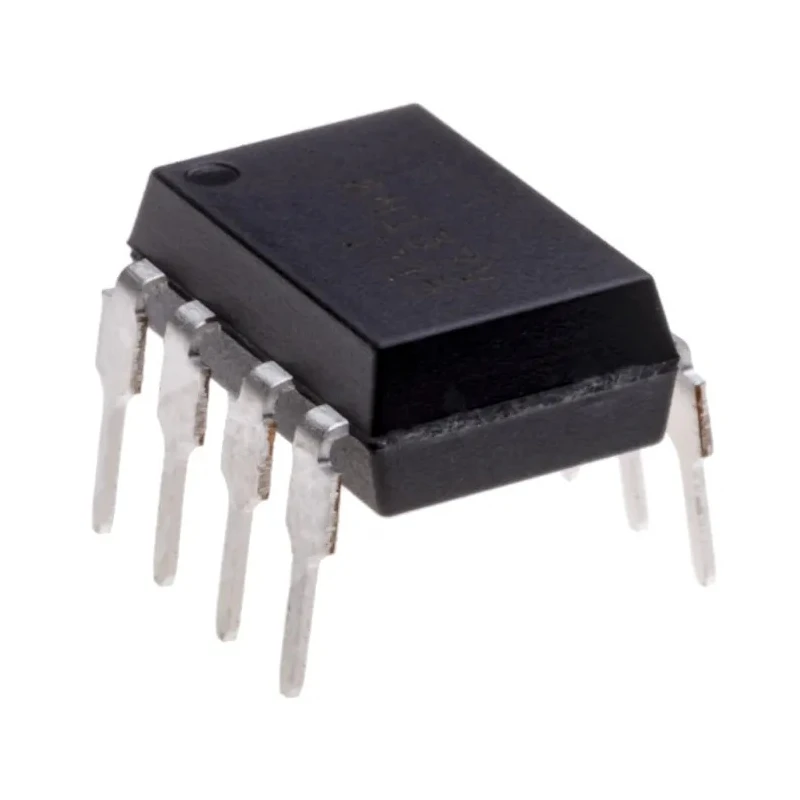

Isocom AC Input 2-Channel Optocoupler Through Hole 8-Pin DIP PS2501-2X

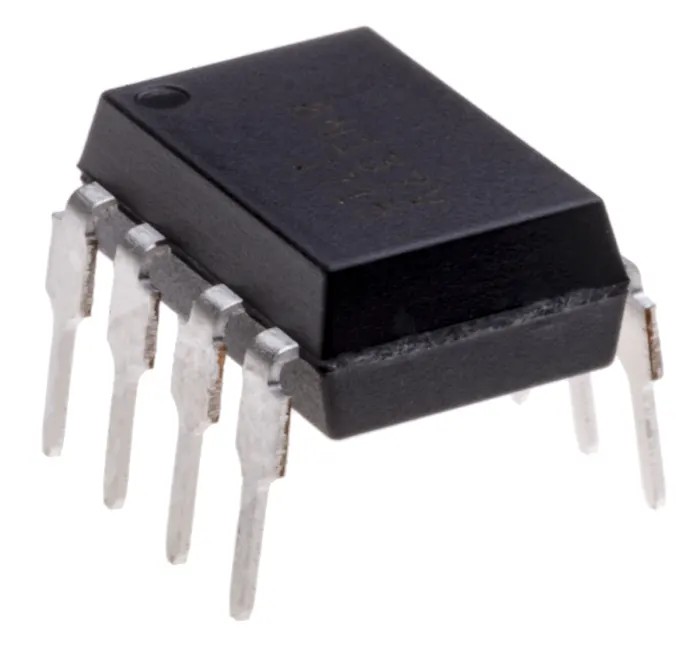

Isocom PS2501-2X is an AC input 2-channel optocoupler designed using an infrared LED and an NPN silicon phototransistor packaged in a compact 8-pin Dual Inline Package (DIP) suitable for through hole mounting. It offers electrical isolation of up to 5300 VRMS, making it an ideal component for signal transmission between systems operating at different potentials and impedances.

This optocoupler features a maximum forward voltage of 1.4V and a maximum input current of 50 mA, ensuring efficient LED operation and reliable switching. Its typical rise and fall times of 4 microseconds and 3 microseconds respectively enable rapid response to input signals. The device operates robustly over a wide temperature range of -30°C to +100°C, accommodating diverse industrial environments.

The PS2501-2X series is commonly used in industrial system controllers, computer terminals, and measuring instruments where electrical isolation and accuracy are critical. Compliant with UL safety standards, it assures high performance and safety in professional applications.

Features 2 channels for AC input isolation applications. Supplied in a robust through hole 8-pin DIP package for easy PCB mounting. Maximum forward voltage of 1.4V ensures efficient LED operation. Typical rise time of 4 microseconds and fall time of 3 microseconds for signal responsiveness.

Isolation voltage rating of 5300 VRMS for high-voltage protection. Wide operating temperature range from -30°C to 100°C suitable for diverse environments. Maximum input current rating of 50 mA supports reliable performance.

Complies with UL standards ensuring product safety and quality. Manufactured in Thailand under strict quality control.

This optocoupler is well-suited for industrial, laboratory, and electrical system applications requiring reliable and safe AC signal isolation. Explore more electronic components and Optocouplers at EnvMart to meet your project needs.
