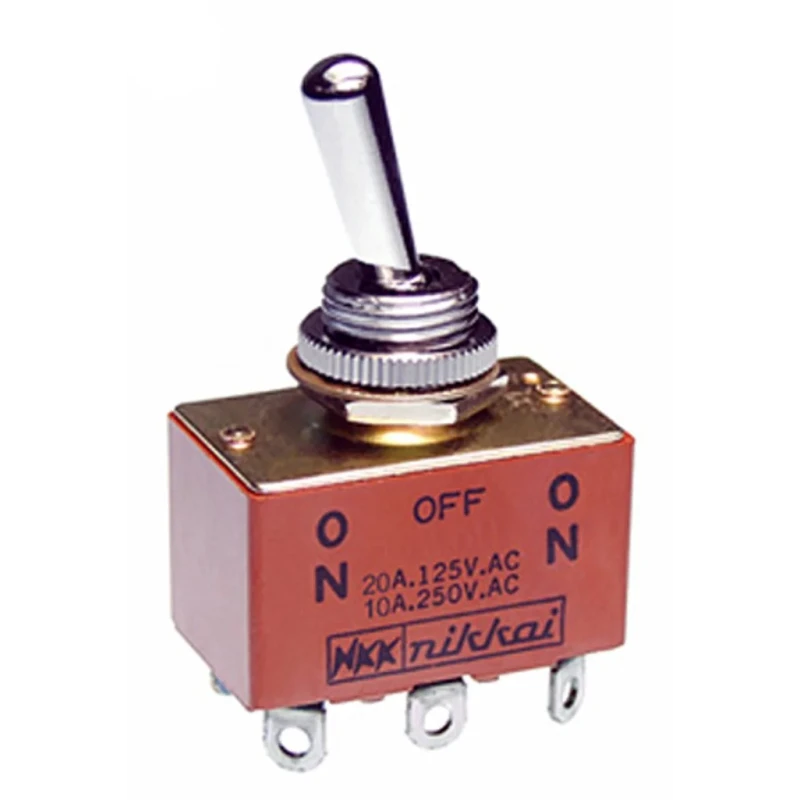

NKK Switches Panel Mount Toggle Switch On-Off-On DPDT 20A 30V DC 125V AC Chrome Plated Brass S7A
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | NKK Switches |
| Model | S7A |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | S |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Switch Configuration | DPDT |
| Minimum Operating Temperature | -10°C |
| Panel Cutout Size | 12.5 mm |
| Terminal type | Solder |
| Standards/Approvals | CSA Recognised |
| Switch Operation | On-Off-On |
| Actuator Length | 17.5mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 20A |
| Mechanical Life | 50000Operations |
| Contact AC Voltage | 125V ac |
| Actuator Material | Chrome Plated Brass |
Key Features
- Features a chrome plated brass actuator for durability.
- Designed for panel mounting with a 12.5 mm cutout size.
- Equipped with solder type terminals for reliable connections.
- Rated IP67 for protection against dust and water ingress.
- Operates between temperatures from -10°C to 70°C.
- Sturdy construction ensures a mechanical life of 50,000 operations.
- Certified and CSA recognized for quality and safety.
- Manufactured in Japan, known for precision engineering.
Product Description
NKK Switches S7A is a high-quality panel mount toggle switch featuring an On-Off-On DPDT contact configuration. It supports a switch contact current of 20A, designed for applications requiring robust control of electric circuits at 30V DC and 125V AC voltages.
The switch is equipped with a chrome plated brass actuator measuring 17.5 mm in length, enhancing durability and tactile feedback. Its mechanical design supports a rated IP67 protection level, ensuring resistance against dust and water, making it suitable for demanding industrial and automation environments.
The mounting type is panel mount with a panel cutout size of 12.5 mm, and the terminal connection style is solder, ensuring secure and stable electrical connections. The temperature rating spans from -10°C to 70°C, making it suitable for various climates and operational conditions.
This toggle switch comes with a mechanical life expectancy of 50,000 operations, aligning with industrial-grade performance expectations. CSA recognition underscores compliance with international standards, affirming its reliability and safety for electric and electronic applications.
Originating from Japan, the S7A model embodies precision manufacturing and robust design, ideal for use in electrical control panels, automation systems, and instrumentation sectors requiring dependable switching mechanisms.
On-Off-On DPDT switch operation for flexible control function. Chrome plated brass actuator offering resilience and longevity. Panel mount installation with precise cutout size of 12.5 mm. Rated for 20 amps electrical current capacity in both AC and DC applications.
IP67 rating provides dust tight and water resistance protection. Wide operating temperature range from -10°C to 70°C for versatile usage. Mechanical lifespan rated at 50,000 switching cycles for reliable service. CSA Recognized confirming compliance with safety standards.
This toggle switch is well-suited for industrial automation, electrical control, and various panel mount applications demanding robust and reliable switching capabilities. Explore more quality Toggle Switches and electrical components at EnvMart for industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a DPDT (Double Pole Double Throw) contact configuration, allowing for flexible control functions in various applications.
The maximum operating temperature for this toggle switch is 70°C, making it suitable for a range of environments.
It has an IP67 rating, providing protection against dust and water ingress, suitable for demanding industrial environments.
The required panel cutout size for mounting this toggle switch is 12.5 mm.
This model is equipped with solder type terminals, ensuring secure and stable electrical connections.
The mechanical life of this toggle switch is rated at 50,000 operations, aligning with industrial-grade performance expectations.
It is rated for a switch contact current of 20A, making it suitable for robust control of electric circuits.
This model supports a contact DC voltage of 30V and an AC voltage of 125V.
The actuator is made of chrome plated brass, enhancing durability and tactile feedback during operation.
This toggle switch is manufactured in Japan, known for its precision engineering.
Yes, it is CSA recognized, confirming compliance with international safety standards.
The minimum operating temperature for this toggle switch is -10°C, allowing for versatile usage in various climates.
