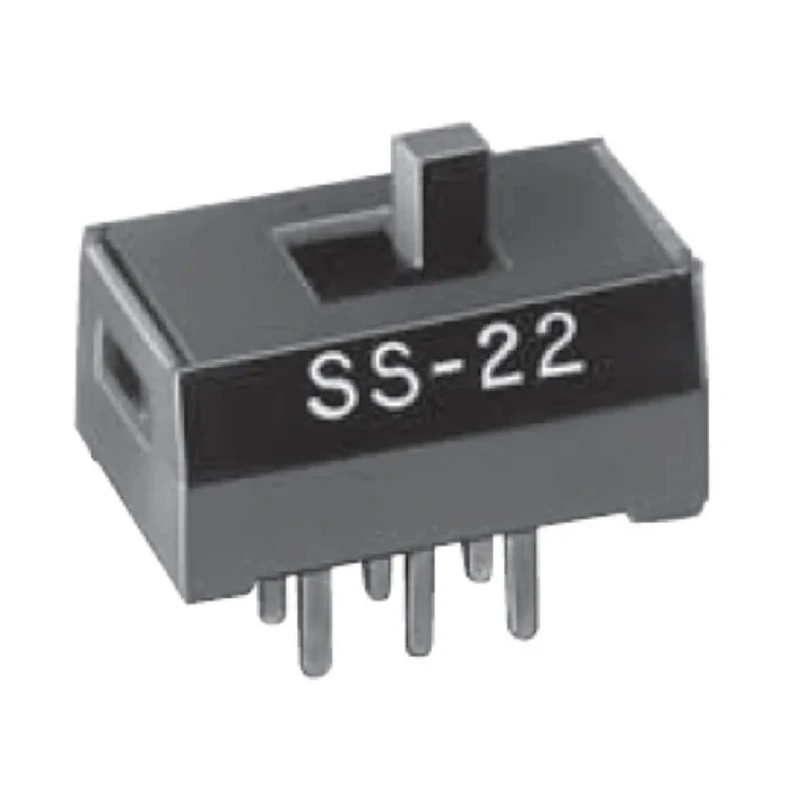

NKK Switches PCB Slide Switch DPDT Latching 100mA Phosphor Bronze SS22SDP4

NKK Switches SS22SDP4 is an ultra miniature PCB slide switch featuring a DPDT (Double Pole Double Throw) latching operation designed for precise and durable switching in electronic circuits.

This switch incorporates a phosphor bronze actuator material and a double molded thermoset base combined with a thermoplastic housing, providing enhanced contact stability and resistance to contaminants such as flux.

With compact dimensions measuring 10.2mm in length, 6.5mm in width, and 6.5mm in depth, it is optimized for high density mounting and stacking of printed circuit boards where space efficiency is critical.

The switch supports a contact current of 100mA and a contact DC voltage of 28V, making it ideal for low voltage applications. Its robust mechanical life rating of 100,000 cycles ensures long-term reliability in industrial, electronic, and automation contexts.

Engineered to operate efficiently within a temperature range of -15°C to 60°C, the SS22SDP4 is suitable for various environments including laboratory instrumentation, consumer electronics, and industrial control equipment.

This product conforms to UL and RoHS standards, demonstrating compliance with safety and environmental regulations necessary for modern electronic manufacturing. Ultra miniature slide switch with precise STC mechanism. Compact size supports high-density PCB mounting and stacking.

Durable construction with double molded thermoset base and thermoplastic housing. Phosphor bronze actuator improves contact reliability. 100mA contact current at 28V DC for low voltage applications. Long mechanical life of 100,000 cycles ensures durability.

Operational temperature range from -15°C to 60°C. Certified to UL and RoHS for safety and environmental standards.

This PCB Slide Switch is widely used in electronics manufacturing, industrial automation systems, telecommunications devices, and consumer electronic products. Its latching DPDT configuration allows stable switching for double-pole applications on compact PCBs.
