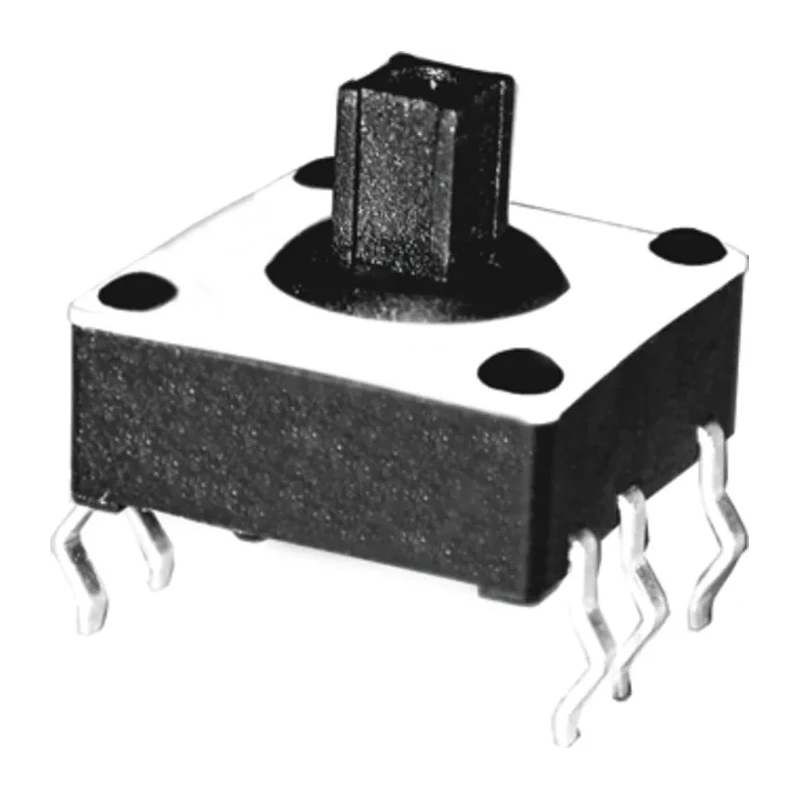

KNITTER-SWITCH Tactile Switch SPDT 50mA 15 V DC PCB Mount TSJ31
Specifications
| Country of Origin | India |
|---|---|
| Brand | KNITTER-SWITCH |
| Length | 12mm |
| Model | TSJ31 |
| Width | 12.4mm |
| Mount Type | PCB |
| Series | TSJ31 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Dielectric strength | 100V, 50Hz for the duration of 1 minute |
| Minimum Operating Temperature | -25°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 15V dc |
| Switch Contact Current | 50mA |
| Mechanical Life | 50000Operations |
Key Features
- Single pole double throw (SPDT) contact configuration provides versatile switching options.
- Through-hole terminal type ensures secure PCB installation.
- Compact dimensions measuring 12mm length by 12.4mm width.
- Operates reliably between -25°C and 70°C temperature range.
- Designed for low current switching up to 50mA and 15 V DC voltage.
- Mechanical life rated for 50,000 operations ensures durability.
- Dielectric strength of 100 V at 50 Hz for 1 minute enhances insulation safety.
- High insulation resistance greater than 100 MΩ for reliable performance.
Product Description
KNITTER-SWITCH TSJ31 is a multifunction tactile switch designed for PCB mounting with a SPDT contact configuration. It is engineered to handle switching operations at 50mA and 15 V DC, offering precise control suitable for electronic devices requiring small signal switching.
This tactile switch features through-hole terminals facilitating easy and secure attachment to printed circuit boards. Its compact physical profile measures 12mm in length and 12.4mm in width, making it suitable for applications with space constraints.
Designed to operate across a wide temperature range from -25°C to 70°C, the TSJ31 tactile switch ensures reliable performance in varied environmental conditions. The switch's mechanical life expectancy of 50,000 operations makes it durable for repeated use in industrial and commercial electronics.
Key electrical safety features include a dielectric strength rating of 100 V AC at 50 Hz for one minute and insulation resistance exceeding 100 MΩ, safeguarding against electrical leakage and ensuring long-term functionality. The switch conforms to RoHS standards, ensuring compliance with environmental and safety regulations.
This multidirectional tactile switch with center push function is ideal for integration into automation systems, control panels, consumer electronics, and instrumentation applications requiring precise tactile feedback. The SPDT configuration makes it versatile for various circuit designs.
SPDT contact configuration offers flexible circuit control. Through-hole mounting style for reliable PCB installation. Compact size supports space-efficient electronic designs. Wide operating temperature range ensures environmental resilience.
Robust mechanical life suitable for frequent switching tasks. High dielectric strength and insulation resistance for electrical safety. Compliant with RoHS environmental safety standards. Explore KNITTER-SWITCH Tactile Switches in EnvMart for reliable and precise switching components suitable for electronics manufacturing and repair.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSJ31 tactile switch features a single pole double throw (SPDT) contact configuration, providing versatile switching options for various circuit designs.
This model has compact dimensions measuring 12mm in length and 12.4mm in width, making it suitable for space-constrained applications.
The maximum operating temperature for this tactile switch is 70°C, allowing it to function reliably in a range of environments.
The dielectric strength of the TSJ31 is rated at 100 V AC at 50 Hz for one minute, enhancing its insulation safety during operation.
The mechanical life of the TSJ31 tactile switch is rated for 50,000 operations, ensuring durability for repeated use in electronic applications.
This model utilizes through-hole terminals for secure attachment to printed circuit boards, facilitating reliable installation.
The contact current rating for this tactile switch is 50mA, making it suitable for low current switching applications.
The minimum operating temperature for this switch is -25°C, allowing it to operate effectively in colder environments.
Yes, the TSJ31 tactile switch is compliant with RoHS standards, ensuring it meets environmental and safety regulations.
The TSJ31 operates at a contact DC voltage of 15 V, suitable for various electronic applications.
This tactile switch is designed for integration into automation systems, control panels, consumer electronics, and instrumentation applications requiring precise tactile feedback.
The TSJ31 tactile switch is part of the TSJ31 series, which includes various models designed for similar applications and specifications.
