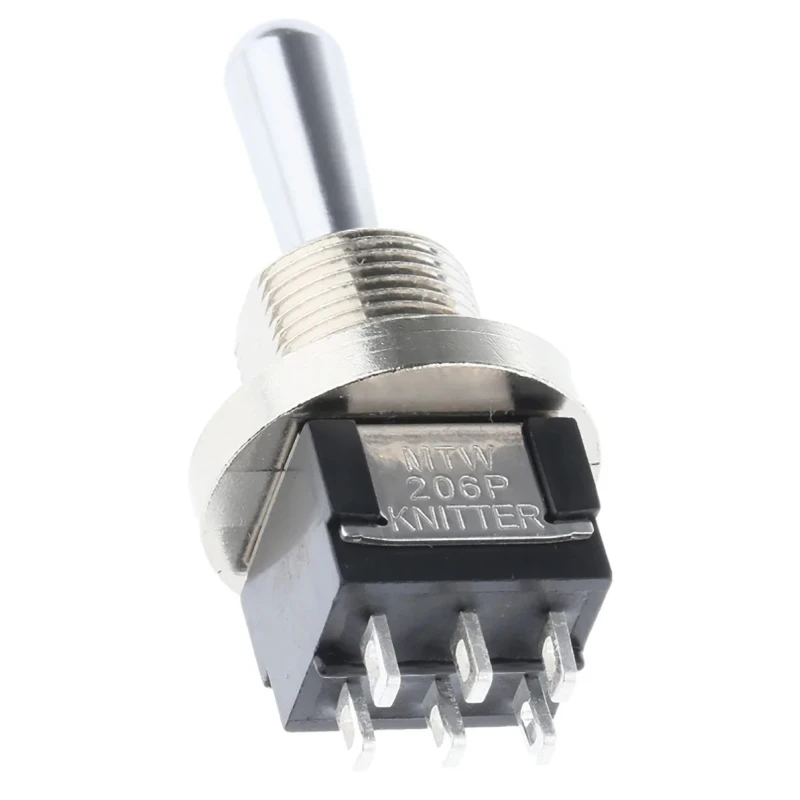

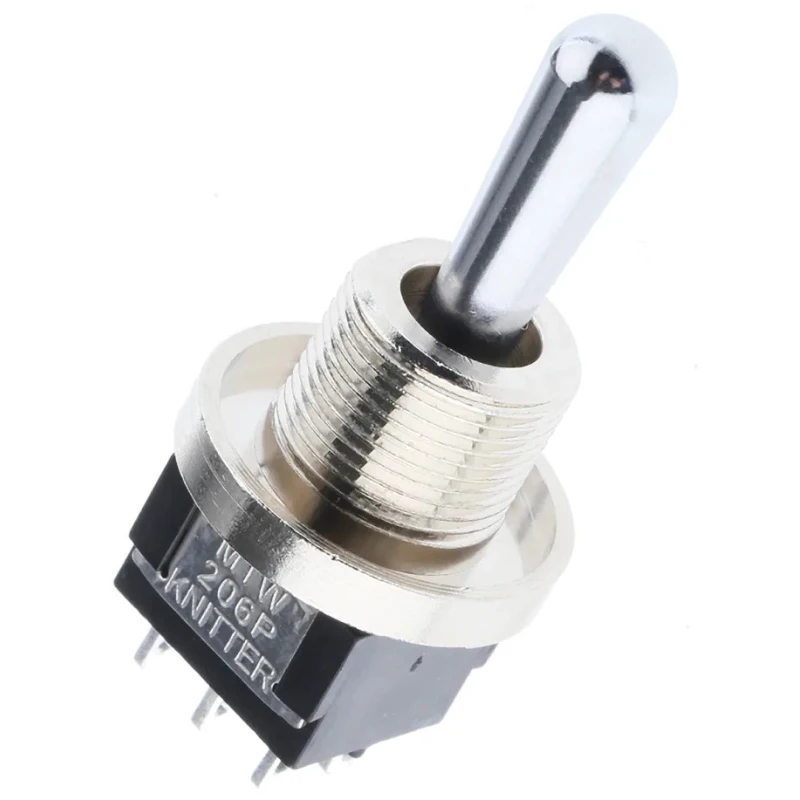

KNITTER-SWITCH Toggle Switch Panel Mount On-Off-On DPDT 4A 30V DC 250V AC MTW206P

KNITTER-SWITCH MTW206P is a high-quality toggle switch designed for robust electrical and automation applications. This panel mount toggle switch operates with an On-Off-On switch operation and features a DPDT (Double Pole Double Throw) contact configuration. It supports a current rating of 4A with DC voltage up to 30V and AC voltage up to 250V, suitable for diverse control circuits in industrial, laboratory, and commercial environments.

The switch's copper actuator ensures long-lasting mechanical performance, and its overall length of 17mm provides ergonomic manual operation. With an IP67 protection rating, this toggle switch is protected against dust ingress and temporary immersion in water, making it highly reliable in harsh environments.

The MTW206P model boasts a long mechanical life of 100,000 operations, ensuring durability in continuous usage scenarios. Operating temperature ranges from -45 degrees Celsius to 140 degrees Celsius, supporting applications in challenging thermal conditions.

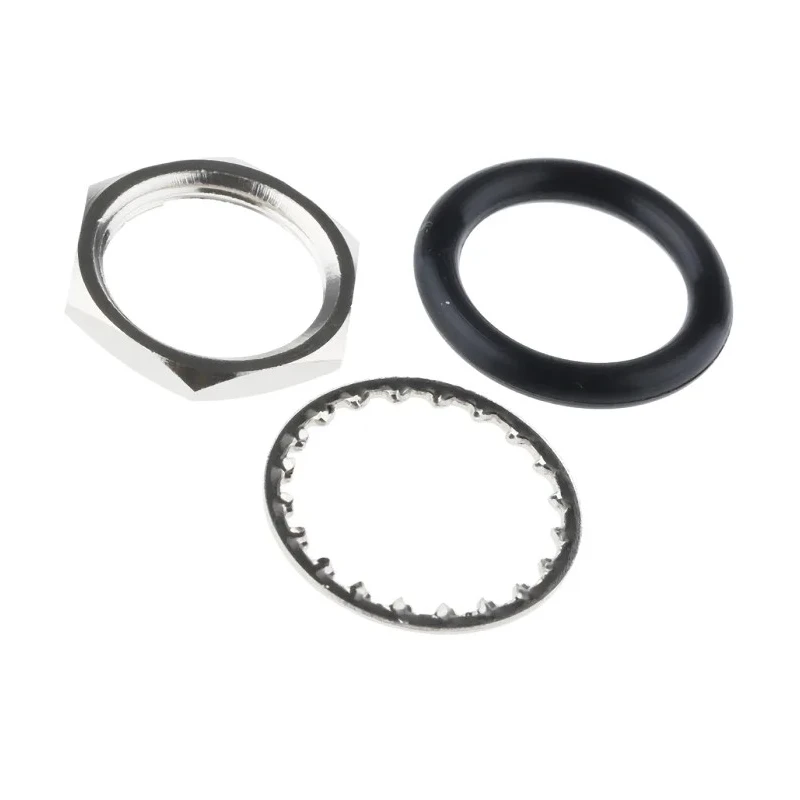

The mounting design includes a threaded bushing (15/32-32 THD) with locking through a flat bush and a key of 14 mm, securing the switch firmly to the panel. The switch comes with solder terminals for easy and reliable electrical connections.

This toggle switch complies with RoHS directives, emphasizing its environmental compliance and safety. Manufactured in China under the MTW series, it is suitable for use in electronics, electrical automation, control panels, and industrial machinery.

For sealing accessories, refer to related products such as the sealing cap (stock no 702-3700). Ideal for incorporation into machinery and electrical panels, this toggle switch supports improved production efficiency and component reliability.

This toggle switch is panel mount type with a copper actuator for durability. It features solder terminals for secure electrical connections. The switch has an IP67 rating ensuring protection against dust and water ingress.

Operates reliably across a temperature range from -45°C to 140°C. Mechanical life expectancy is rated at 100,000 operations. Compliance with RoHS confirms it meets environmental standards. The mounting uses a bushing 15/32-32 threaded locking mechanism with a 14 mm key flat.

Its actuator length measures 17 mm for easy manual operation. Switch configuration offers both SPDT and DPDT options, providing flexible circuit control. Manufactured in China with high-quality standards in the MTW series.
